Description

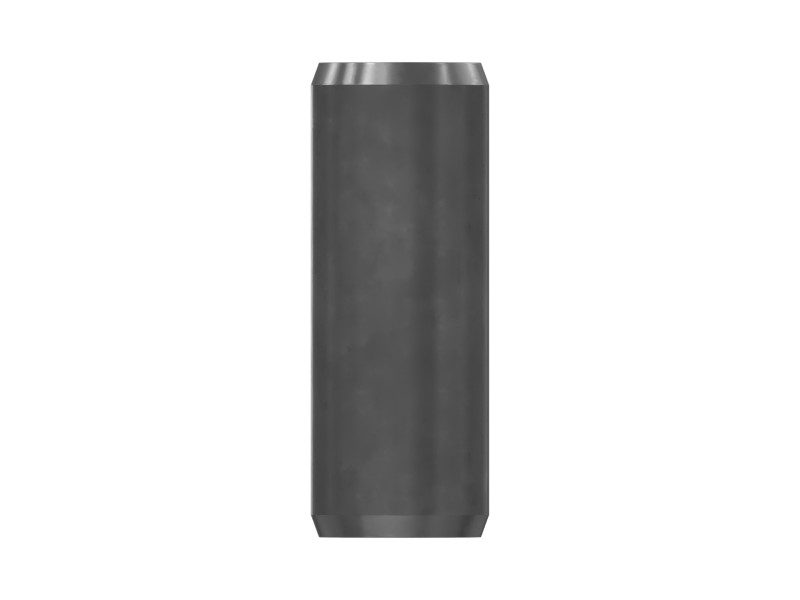

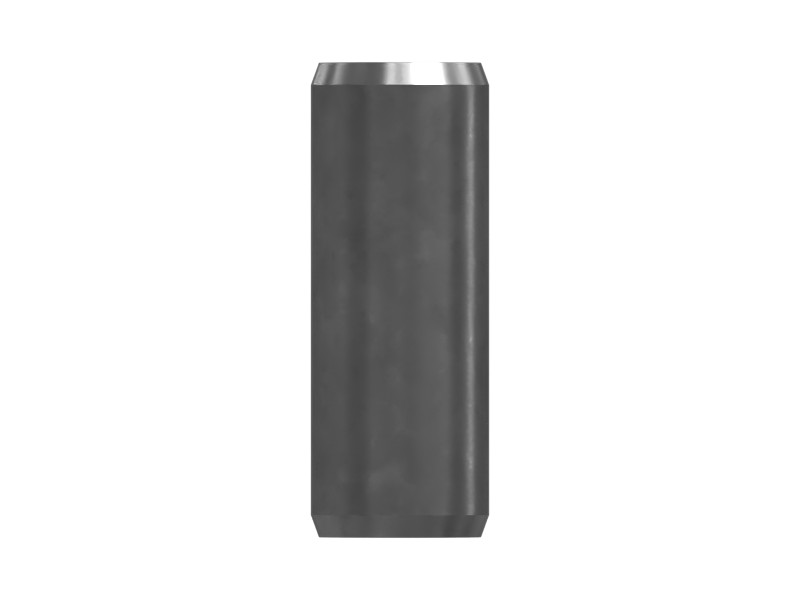

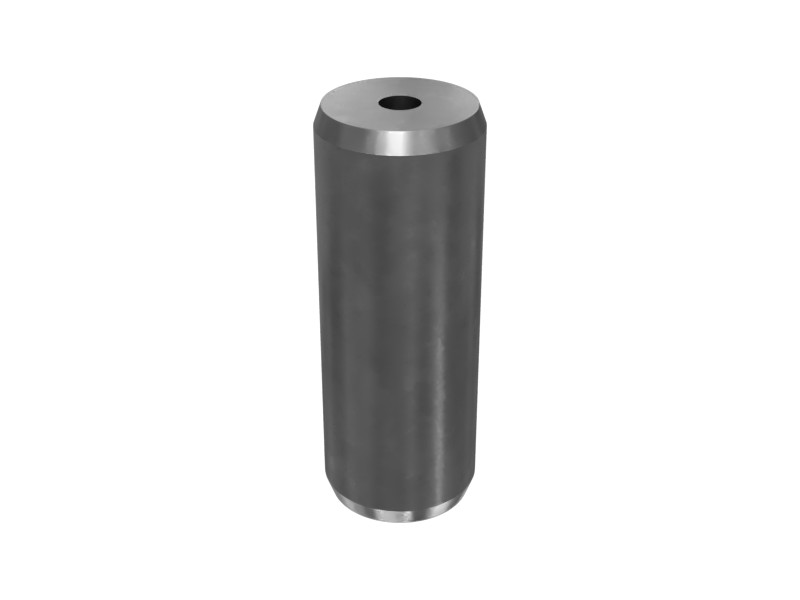

A dowel pin is a headless straight pin with a tightly controlled diameter, which can be press-fitted into one or two parts to transmit loads or fix the position of adjacent parts. Fasteners and hardware are designed for specific applications based on size, strength, clamping force, and past performance, information that other manufacturers do not have. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may appear to fit your machine, but other companies do not know your equipment the way we do.
Specifications
| Pin Outside Diameter | 24.03 mm (0.946 in) |
|---|---|
| Pin Length | 64 mm (2.52 in) |
| Pin Inside Diameter | 6 mm (0.236 in) |
| Pin Type | With Thrust Hole |
| Center Hole Shape | Non-Threaded |
| Thread | None |
| Overall Length | 64 mm (2.52 in) |
| Pin Diameter | 24 mm (0.95 in) |
| Inside Diameter | 6 mm (0.24 in) |
| Material | Steel |
| Remarks | End Type: Lead Chamfer, Lead Chamfer |
Compatible Equipment
- Excavators: 349F L, 330D L, 349E, 345C, 340D2 L, 390F, 345C L, 385C, 349D L, 385C L, 349E L, 352F, 352, 385B, 390D, 345D L, 345B, 350 L, 385C FS, 365B, 336D2 L, 336D L, 336E L, 336F LN, 336F, 330D, 336D2 GC, 336 GC, 336F L, 336D2 XE, 336, 330C, 336F L XE, 328D LCR, 336E, 336E LH, 330C L, 335F LCR, 365C, 345 GC, 349, 340, 336E LN, 330B, 336E H, 3101, 340D L, 349E L VG, 345D, 365C L, 395, 350, 349D2 L, 390F L, 349D2, 390D L, 336D2, 336D, 349D
Additional information
| Machine Model | 3101, 328D LCR, 330B, 330C, 330C L, 330D, 330D L, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345 GC, 345B, 345C, 345C L, 345D, 345D L, 349, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 350, 350 L, 352, 352F, 365B, 365C, 365C L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
