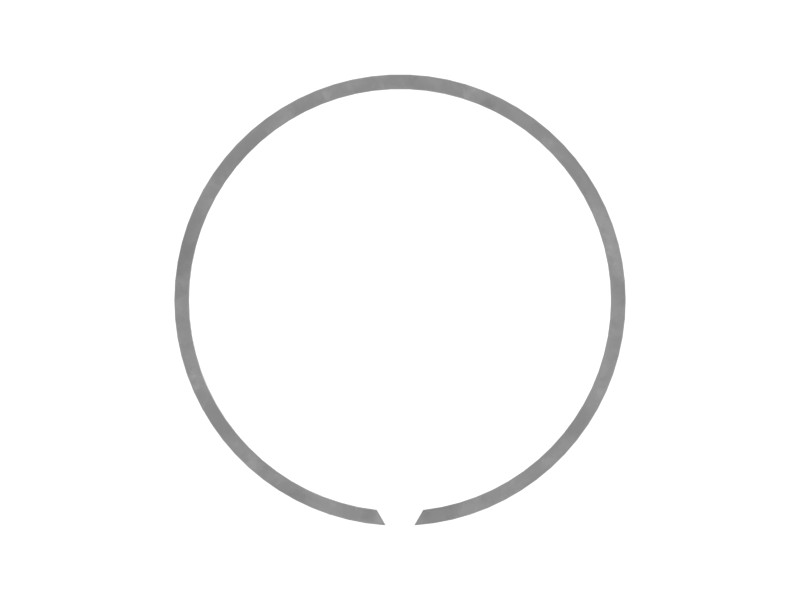

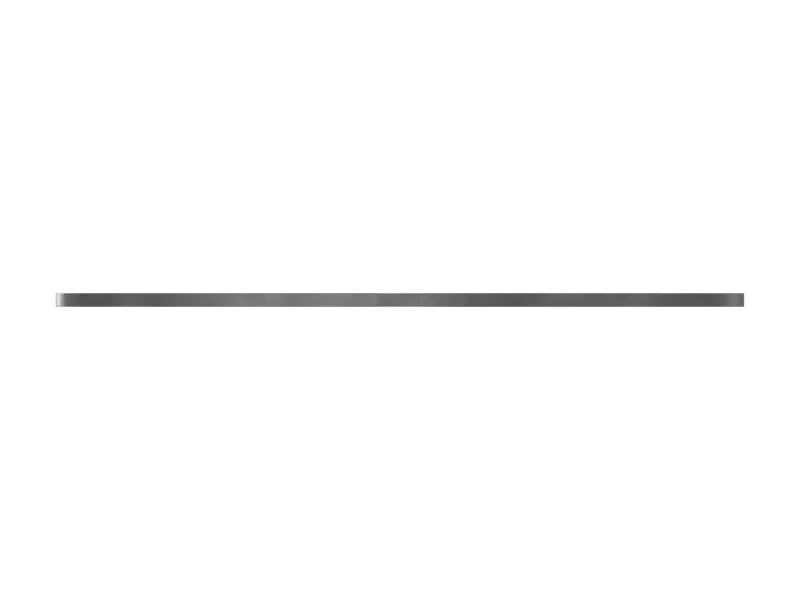

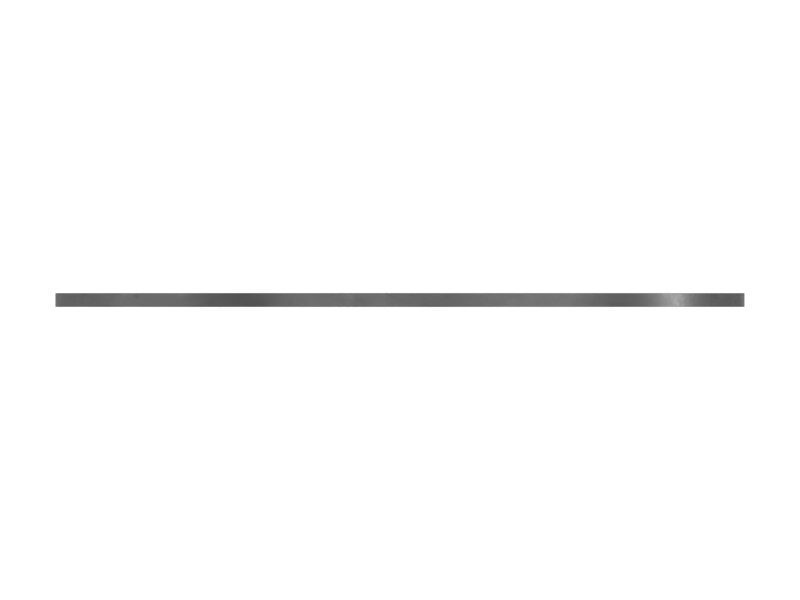

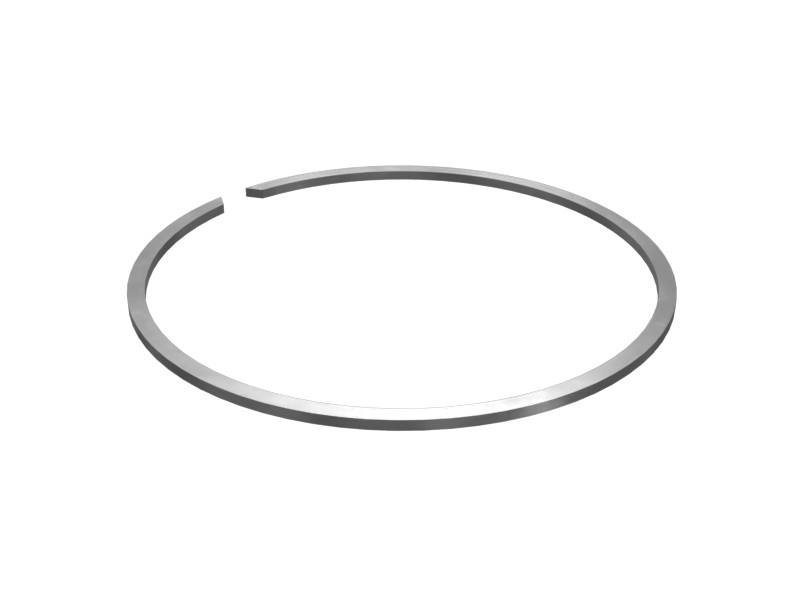

114-1322 2.5 mm Thick Retaining Ring
Cat® retaining ring in the swing drive holds components in place, preventing unintended movement and ensuring proper operation.
Description
Cat retaining rings install in machined grooves in housings/bores (internal) or on shafts (external), providing high strength and long service life in a variety of applications. Cat retaining rings are manufactured to precise specifications for durability, reliability and high efficiency. You can count on this Built For It product to help you get more work done.
Features
- Retaining rings meet or even exceed ANSI, ASTM and DIN requirements
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Fits into a groove in a shaft or housing to secure a component or assembly.
Specifications
| Snap Ring Type | Inner Shaft |
|---|---|
| Style | Rectangular Section |
| Coating | Zinc Plated |
| Inside Diameter | 121 mm (4.764 in) |
| Outside Diameter | 129 mm (5.079 in) |
| Thickness | 2.5 mm (0.098 in) |
Compatible Equipment
- Excavators: 330D L, 336D2 XE, 336F, 336D2 L, 336, 330C L, 330C, 336D2 GC, 336D L, 336F L, 336E LH, 336 GC, 336E L, 336E LN, 336F LN, 336F L XE, 336E, 330D, 330B, 385C, 340D2 L, 385C FS, 385B, 385C L, 390F, 390D, 340D L, 345 GC, 336E H, 336D2, 336D, 390F L, 390D L
Additional information
| Machine Model | 330B, 330C, 330C L, 330D, 330D L, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340D L, 340D2 L, 345 GC, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
