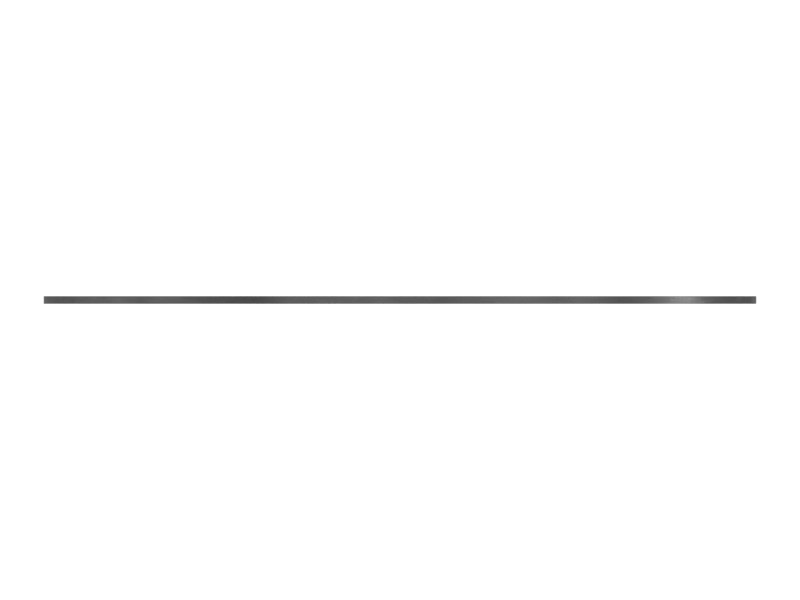

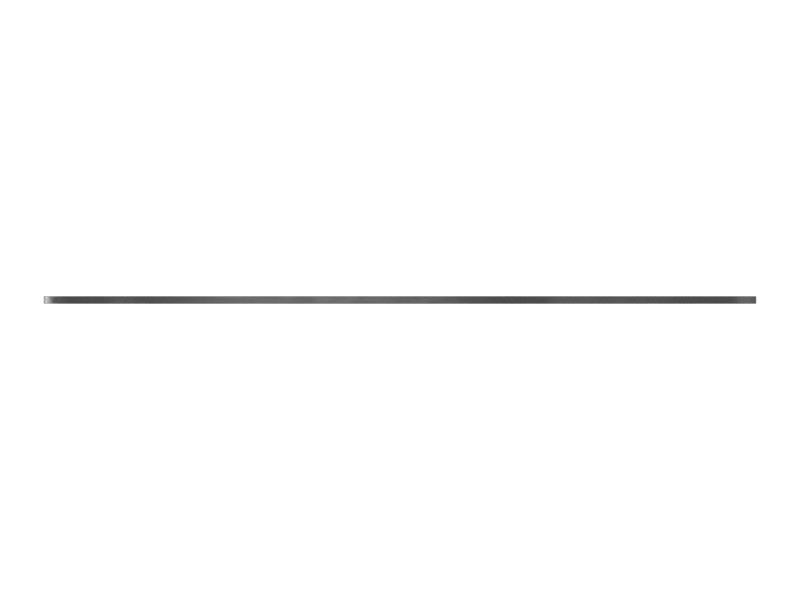

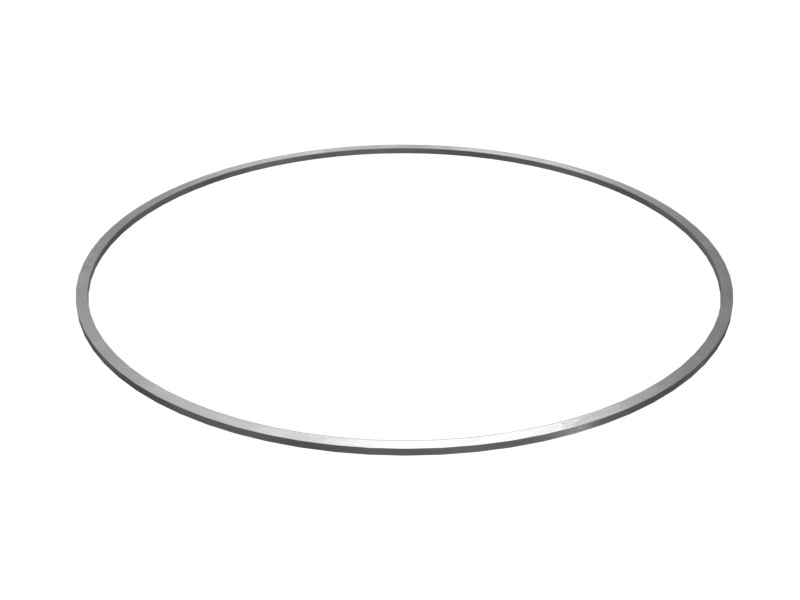

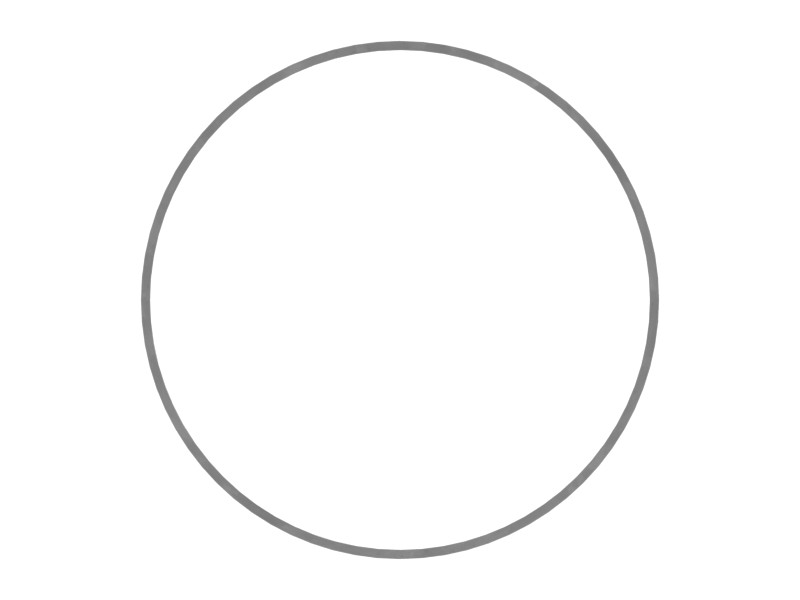

Description
Backup rings can prevent seal extrusion in high-pressure applications and can also be used to protect the life of the overall sealing system under sudden pressure changes.
Features
Cat® backup rings are designed together with the elastomeric seal and mating components and contribute greatly to the life and performance of sealing systems in high-pressure applications.
Backup ring dimensions strictly follow tight tolerances, ensuring they properly bridge the seal groove and the mating surfaces. Materials are selected based on their pressure resistance and wear resistance.
Backup rings are available in two types: closed rings and split rings. Split rings are used to ensure ease of installation.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
Backup rings are used in high-pressure static and dynamic sealing applications, for example, hydraulic pumps, valves, and engine systems.
Specifications
| Material | Nylon, 6, 6/12, 6/6 Plastic |
|---|---|
| Cross-Section Width | 1.5 mm (0.06 in) |
| Material Description | Nylon plastic offers good resistance to fuel, oil and lubricants. Many different formulations are available, some of which can support high mechanical loads and provide excellent performance at high temperatures. |
| Inside Diameter | 145 mm (5.71 in) |
| Cross-Section Height | 2.5 mm (0.1 in) |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 320, 323, 330 GC, 330GC, 333, 320D FM, 323 GX, 330D2, 325D L, 325D, 329D L, 325B L, 320D2 L, 320C, 335F LCR, 330C L, 328D LCR, 330D2 L, 325C, 323D2 L, 320D L, 329E, 329E L, 325B, 320B, 325, 325C L, 320D2 GC, 330, 320D, 320D2, 329D, 329D2 L, 329D2
Additional information
| Machine Model | 320, 320B, 320C, 320D, 320D FM, 320D L, 320D2, 320D2 GC, 320D2 L, 323, 323 GX, 323D2 L, 325, 325B, 325B L, 325C, 325C L, 325D, 325D L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330C L, 330D2, 330D2 L, 330GC, 333, 335F LCR, 3512B |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
