Description

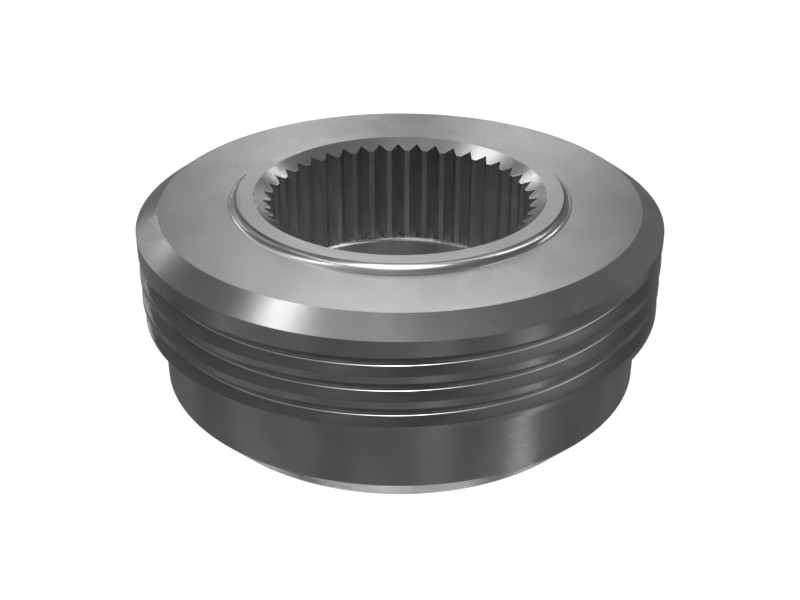

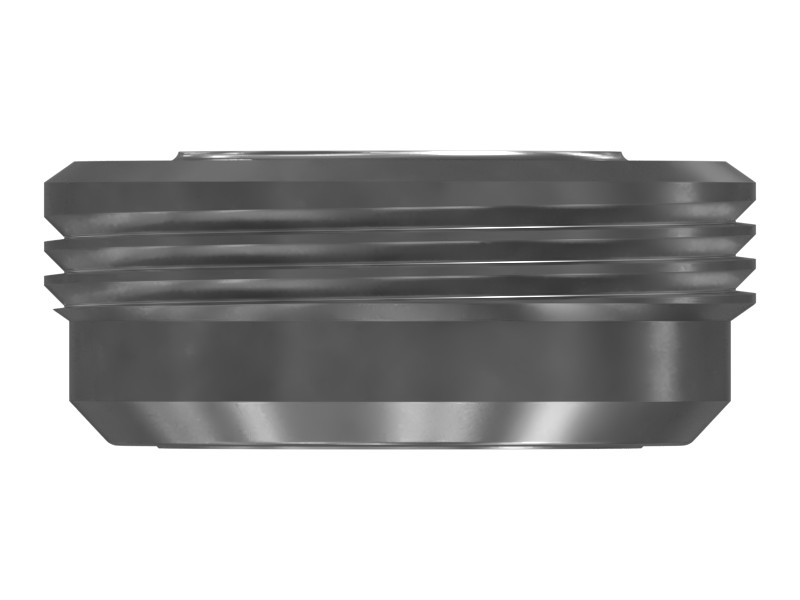

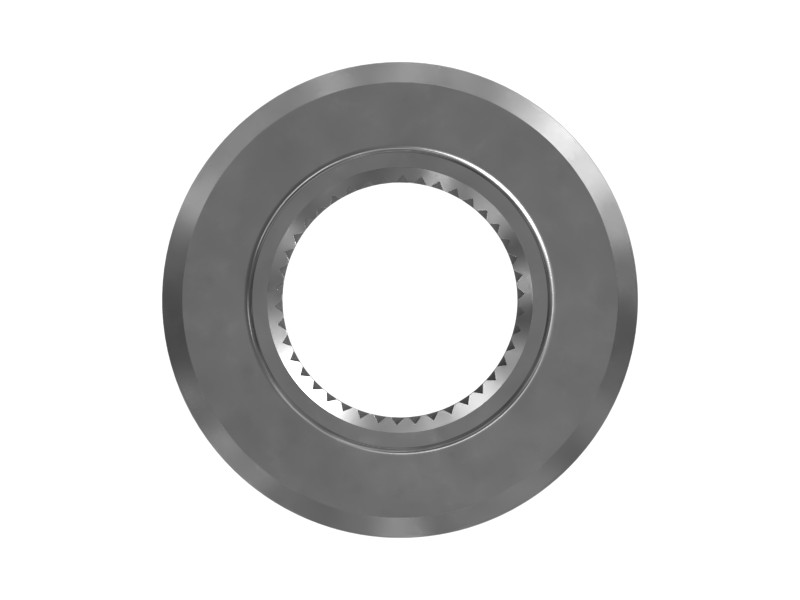

Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Ferrule Inside Diameter | 21.946 mm (0.864 in) |
|---|---|
| Unique Features | No |
| Ferrule Outside Diameter | 48 mm (1.89 in) |
| Type | Straight Sleeve |
| Material | Alloy Zinc |
| Inside Diameter | 24 mm (0.94 in) |
| Outside Diameter | 41 mm (1.62 in) |
| Overall Length | 18 mm (0.71 in) |
| Internal Groove | None |
| External Groove | None |
| Cross Hole | None |
| Remarks | Internal Spline Teeth: 42; 1-3/4-12 Serrated Thread; Zinc Plated |
Compatible Equipment
- Generator Sets: 3406B, 3406C
- Track Loaders: 824G, 824C, 826G
- Dozers: D8N, D8R
- Wheel Loaders: 980G
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
