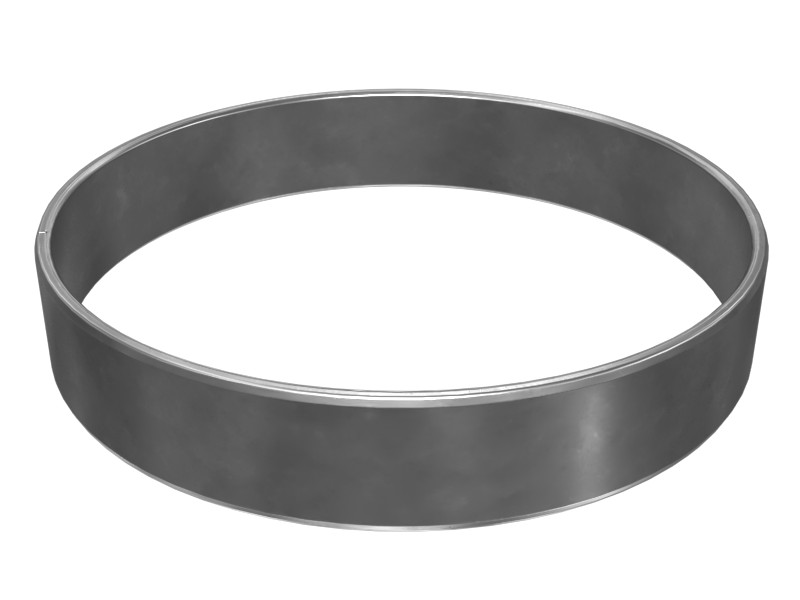

112-9938 139.75 mm OD Sleeve Bearing
Cat® 139.75 mm OD 25 mm Long Sleeve Bearing for Planetary Transmissions
Description
Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Unique Features | No |
|---|---|
| Ferrule Outside Diameter | 139.75 mm (5.502 in) |
| Ferrule Inside Diameter | 133.53 mm (5.257 in) |
| Type | Straight Sleeve |
| Material | — |
| Inside Diameter | 134 mm (5.26 in) |
| Outside Diameter | 140 mm (5.50 in) |
| Overall Length | 25 mm (0.95 in) |
| Internal Groove | None |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Excavators: 3516E
- Off-Highway Trucks: 793, 785, 789, 785D, 793F, 789D, 793D
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
