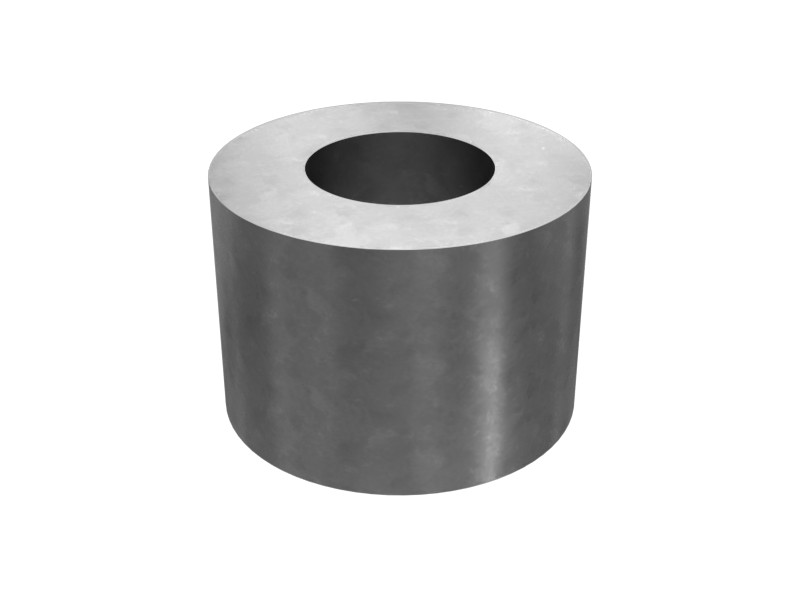

Description
Cat® shims are typically used to provide additional stretch length in fasteners to reduce preload loss or narrow the cyclic stress range of machine working loads. They are used to establish and maintain the functional relationship of related parts in machine systems.
Features
- For use with M16 fasteners
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Specifications
| Gasket Type | Flat |
|---|---|
| Type | Center Hole Slot |
| Outside Diameter | 36 mm (1.417 in) |
| Inside Diameter | 17.5 mm (0.688 in) |
| Material | Carbon Steel |
| Thickness | 25 mm (0.984 in) |
| Length | 25 mm (0.984 in) |
| Coating | Zinc Flake |
| Center Hole Shape | Non-Threaded |
Compatible Equipment
- Motor Graders: 18, 16, 16M3
- Track Loaders: 994K, 995
- Compactors: 834K
- Dozers: D8, D7R II, D9T, D11
- Wheel Loaders: 988K, 972G, 972H, 966K, 966H
- Off-Highway Trucks: 777, 793F, 793, 797F, 789
