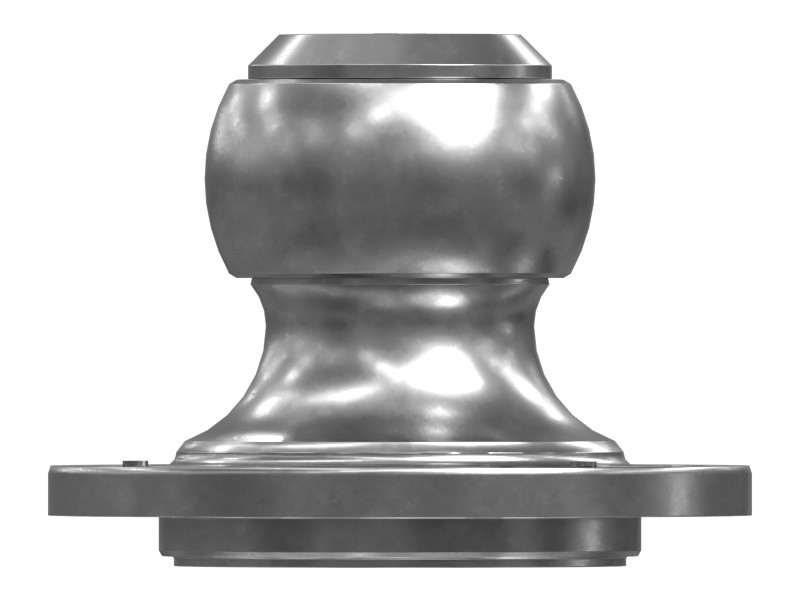

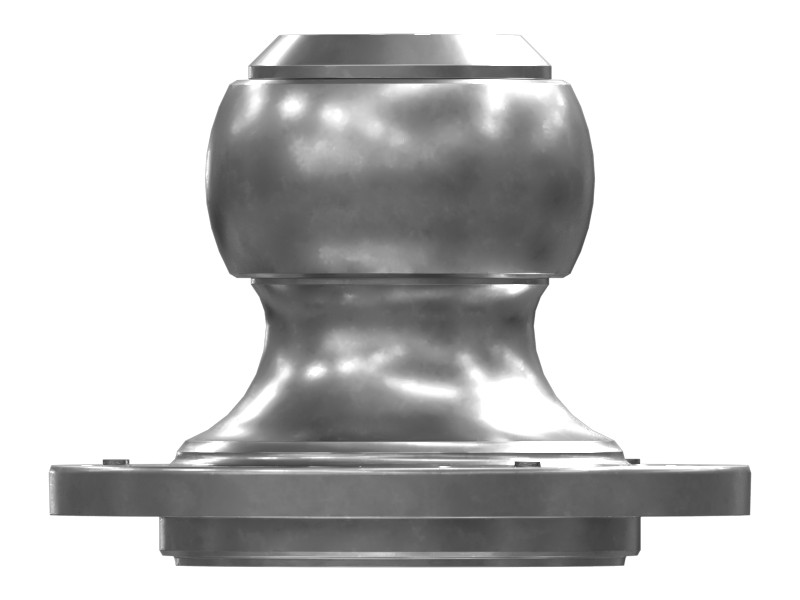

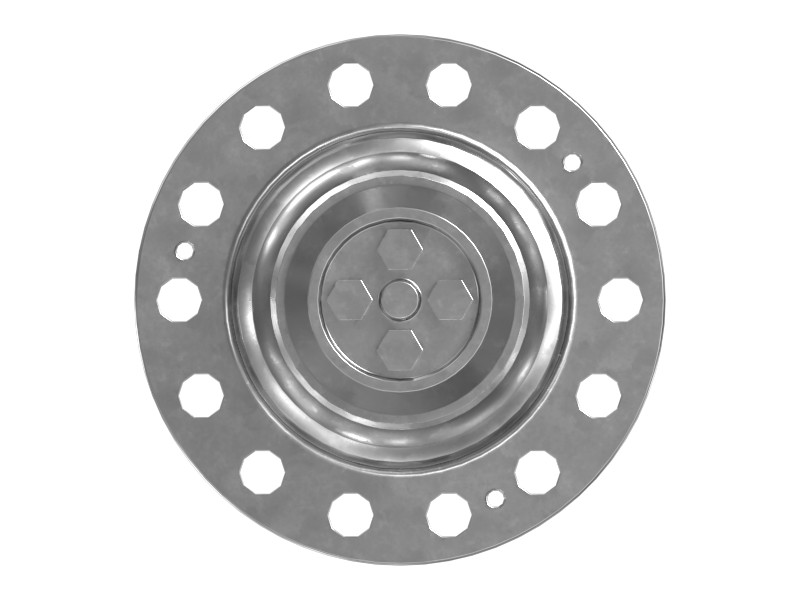

108-8283 Bolted Trunnion
Cat® Bolt-On Trunnion for Right and Left Push Arms, Ball OD X Length: 177.6 X 241.5 mm
Description
The trunnion (part number 108-8283) is bolted to the track adjuster frame to mount the left and right push arms, for certain D9 dozer models.
Features
- Group includes trunnion, sleeve bearing, retainer and bolt
- Spherical Diameter: 177.6 mm (6.993 in)
- Overall Length: 242 mm (9.50 in)
- Flange Diameter: 320 mm (12.60 in)
- Hole Size: 27.5 mm (1.08 in) (14X)
- Thread Size: M12X1.75 (3X)
Applications
D9 Dozer
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hole Size | 27.5 (14X) mm (1.08 in) |
|---|---|
| Outside Diameter | 177.6 (Spherical) mm (6.99 (Spherical) in) |
| Overall Length | 242 mm (9.51 in) |
| Thread Size | M12X1.75 (3X) mm |
Compatible Equipment
- Dozers: D9T, D9R, D9
