Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

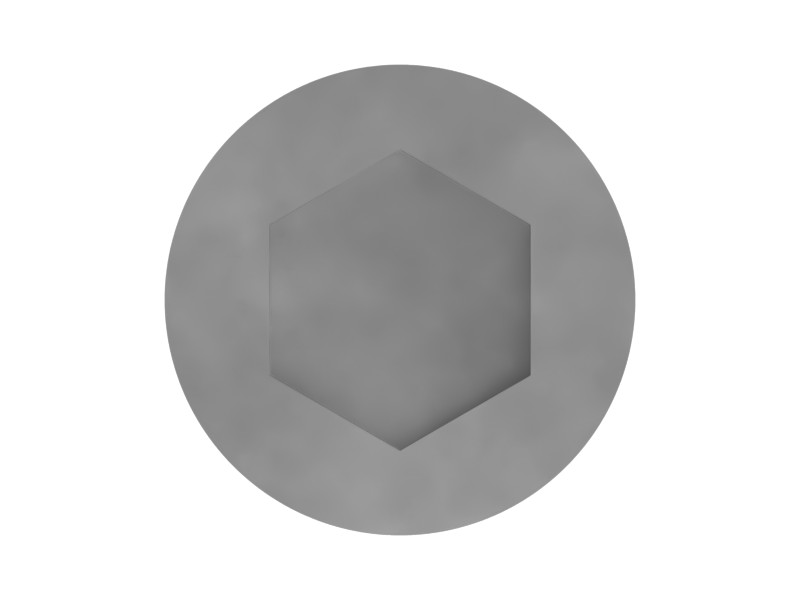

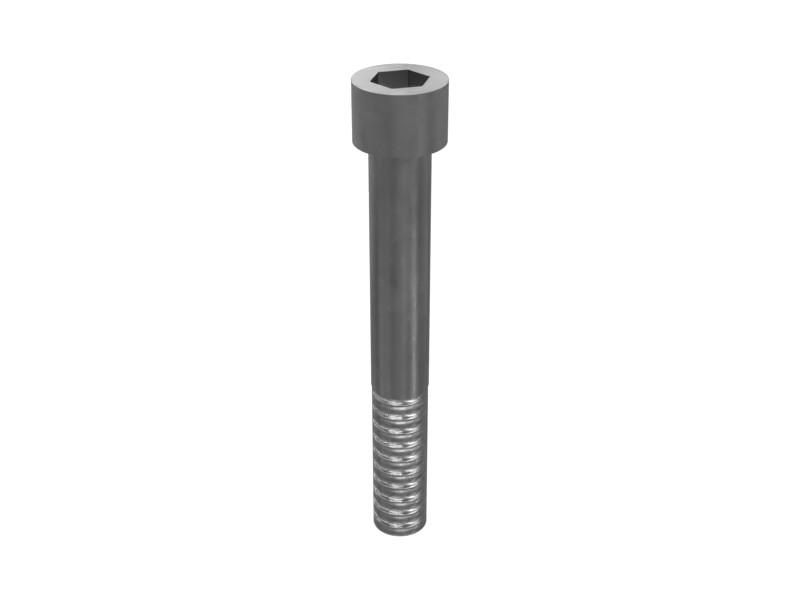

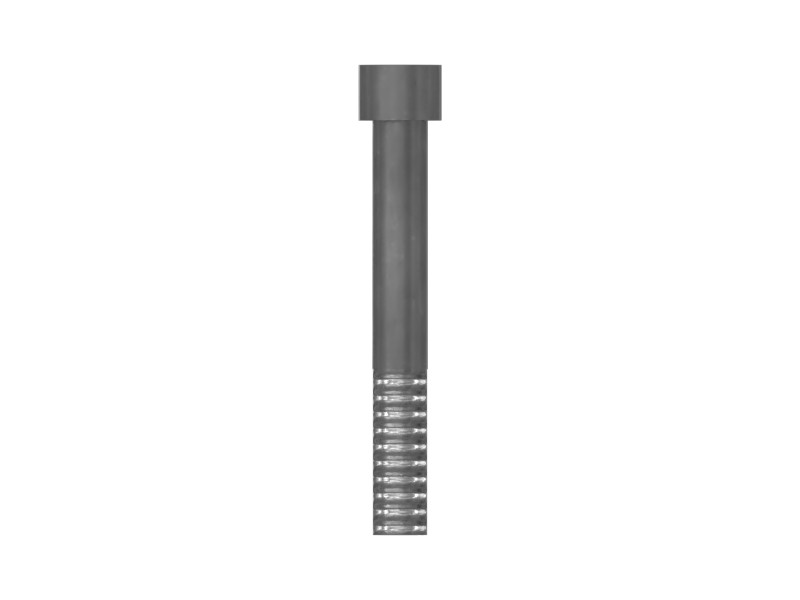

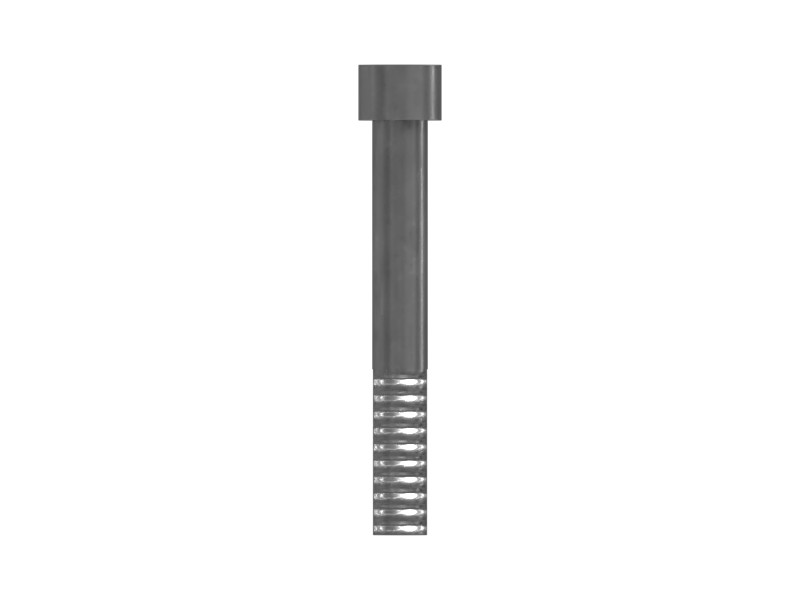

Socket head bolts are used in designs where there is not enough clearance to install hex head bolts and use assembly tools.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 12.9 |
| Thread Size | M12 mm (0 in) |
| Bolt Type | Socket Head |
| Material | Alloy Steel |
| Coating | Zinc Flake |
| Thread Size (Diameter × Pitch) | M 12 X 1.75 mm |
| Bolt Length | 90 mm (3.543 in) |
| Handle Length | 54 mm (2.126 in) |
Compatible Equipment
- Generator Sets: C9, 3512B
- Track Loaders: 982
- Wheel Excavators: M315, IT14G, M315D, M313D
- Compactors: CB-334D, CB-335D, C13B, C-9
- Engines: C13, C11
- Excavators: 313 GC, 313, 330D L, 349F L, 340, 320, 336, 335F LCR, 336F, 315 GC, 349E L, 365B, 352F, 349D L, 349E, 365B L, 345D L, 365C, 365C L, 349E L VG, M325D L MH, 323, 3101, 336 GC, 336F L, 328D LCR, 330C, 320D L, 336E L, 325C, 329D L, 325D, 336D2 L, 336D L, 323D L, 323D2 L, 320D RR, 320D2 L, 320C, 325D L, 324D, 320E, 320 GC, 336E LH, 324D L, 330GC, 330 GC, 336F L XE, 329E, 330D, 336F LN, 336E, 320D2 GC, 330C L, 329E L, 336D2 XE, 330D2, 395, 315, 336E H, 326, 336E LN, 325B L, 330D2 L, 323D, 345D, 320D, 330, 349D2, 349D2 L, 374D L, 320D2, 336D2, 336D, 329D2, 326D2 L, 329D2 L, 329D, 326D2, 349D
- Wheel Loaders: 980M, 982M
- Off-Highway Trucks: 793D, 793
Additional information
| Machine Model | 3101, 313, 313 GC, 315, 315 GC, 320, 320 GC, 320C, 320D, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323D, 323D L, 323D2 L, 324D, 324D L, 325B L, 325C, 325D, 325D L, 326, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 330GC, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 3512B, 352F, 365B, 365B L, 365C, 365C L, 374D L, 395, 793, 793D, 980M, 982, 982M, C-9, C11, C13, C13B, C9, CB-334D, CB-335D, IT14G, M313D, M315, M315D, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
