Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

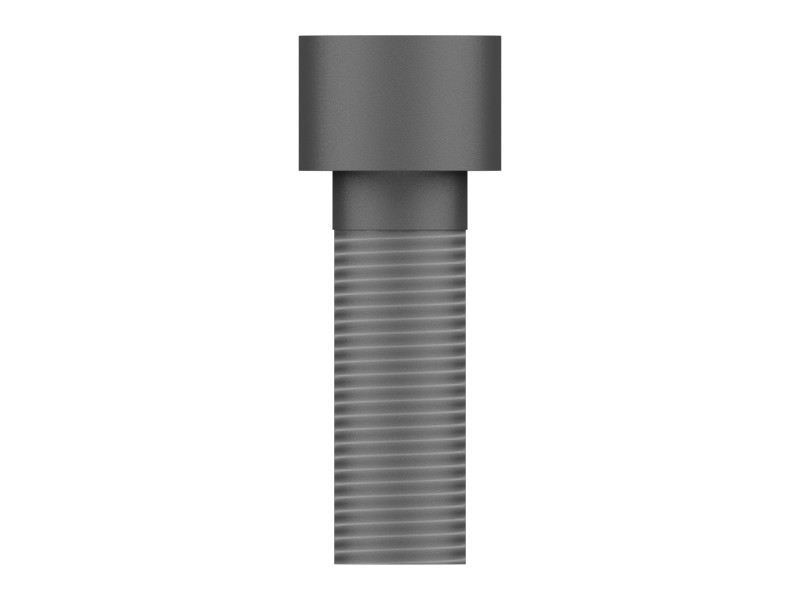

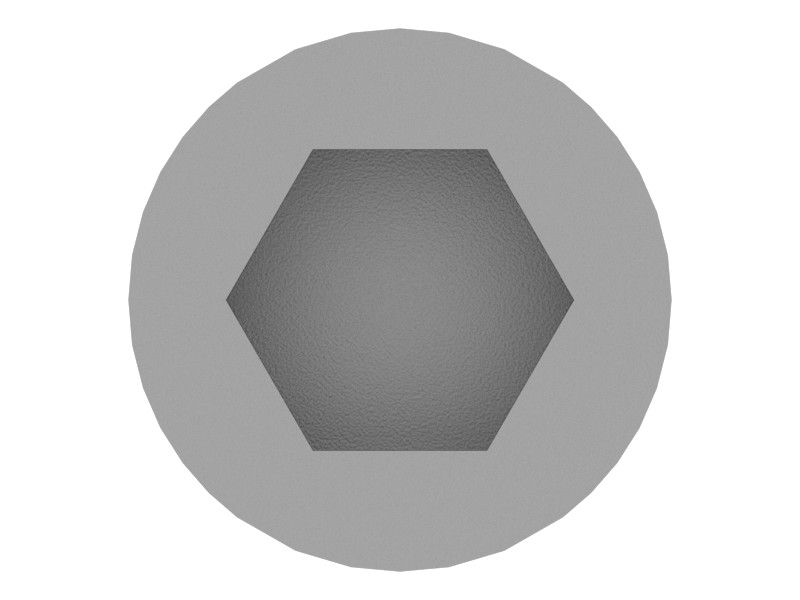

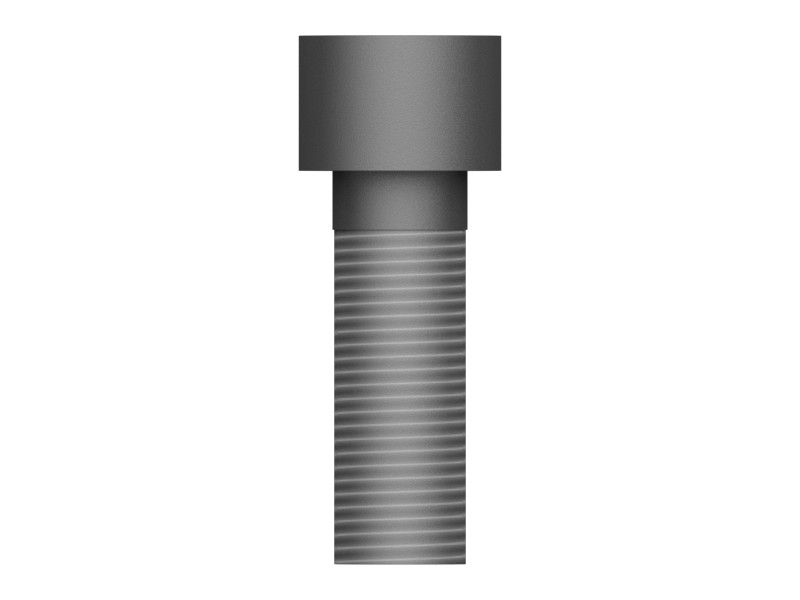

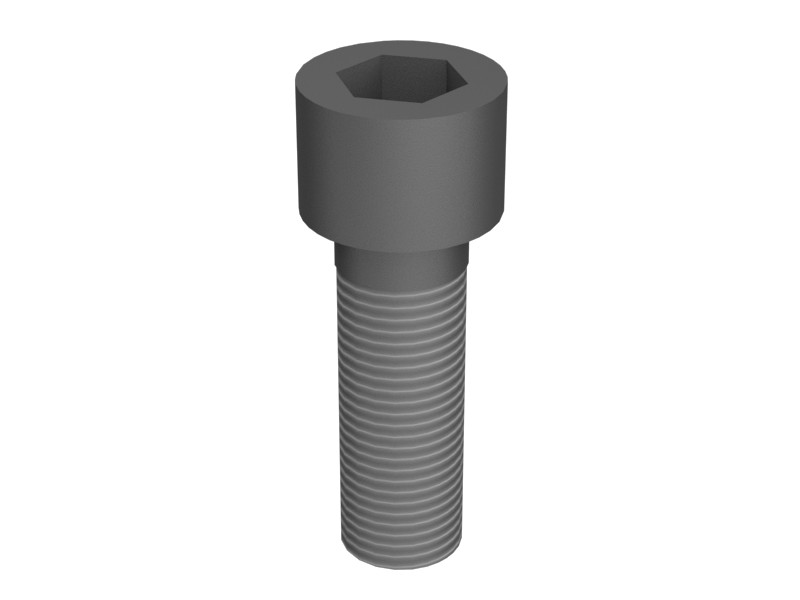

Socket head bolts are used in designs where there is not enough clearance to install hex head bolts and use assembly tools.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Bolt Type | Socket Head |
|---|---|
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 12.9 |
| Locking Feature | None |
| Thread Size | M12 mm (0 in) |
| Material | Alloy Zinc |
| Coating | Zinc Flake |
| Thread Size (Diameter × Pitch) | M 12 X 1.75 mm |
| Bolt Length | 35 mm (1.38 in) |
| Handle Length | 5 mm (0.207 in) |
Compatible Equipment
- Generator Sets: C7.1, C4.4, 3512B
- Track Loaders: 963K, 963, 953, 963D, 953K, 992, 982
- Cold Planers: PM622, PM620, PL61, PL72
- Compactors: 834K, CS12, CS54B, CP54B, CS12 GC, CW-34, CS11, CB-64B, CB-66B, CB16, CB-44B, CC-34B, CC2.7 GC, CS68B, CS56B, CS78B, CS74B, CB10, CB13, CB15, CS-533E, CS-54B
- Engines: C32
- Excavators: 320D, 320D2, 349D2 L, 374D L, 390D L, 326D2, 308E, 390F L, 349D2, 349D, 330, 308D, 336D2, 329D, 336D, 326D2 L, 329D2 L, 329D2, 374F, 301.7D, 349F L, 374, 330D L, 303CR, 350, 302.7CR, 336E L, 352, 637G, 621G, 320D L, 320, 395, 352F, 303.5CR, 320D2 L, 349E L VG, 323, 349E, 345D L, 349D L, 365B, 345C, 385C, 6060, 365C L, 365C, 345D, 374F L, 390F, 345C L, 385C L, 385C FS, 320 GC, 336 GC, 333, M325D L MH, 323 GC, 320D3, 326, 349, 637E, 320D3 GC, 330GC, 355, 328D LCR, 312D L, 312D, 336D L, 312D2 GC, 311D LRR, 325C, 315D L, 336F, 336F L, 312D2 L, 314D LCR, 320E, 315C, 324D, 330D, 315F LCR, 329E, 325D L, 324D L, 313D2 GC, 336E, 320D RR, 340D2 L, 349E L, 385B, 390D, 330 GC, 6040, 336D2 GC, 320D FM, 350MHPU, 312E L, 330D2 L, 313D, 336E H, 312C L, 336E LN, 336E LH, 330C, 314D CR, 325D, 329E L, 320C, 313D2, 312E, 318D2 L, 312C, 312D2, 336F L XE, 329D L, 336D2 L, 330D2, 336F LN, 336D2 XE, 318D2, 313F L, 313D2-GC, 312F, 6020B, 340D L, 345 GC, 365B L, 335, 330C L, 345B, 335F LCR, 323D2 L, 318D L, 325, 326D L, 323GC, 6030, 320D2 GC, 323 GX, 637K
- Asphalt Pavers: AP-600D, AP655F, AP655F L
- Skid Steer Loaders: 226B3, 232D, 313D2 LGP, 232D3, 236D3, 216B3, 226D3, 236D, 242D3
- Motor Graders: 349 GC, 316F
- Wheel Excavators: M320, M315, MD6310, M322D, M315GC, M320D2, MD6200, MD6250
- Dozers: D3K2 LGP, D10, D5K2 XL, D11, D4, D6T, D6T LGP, D7R II, D6R III, D6R XL, D4G, D8T, D8, D7, D8R, D10T2, D6R LGP, D6R, D11T, D6K2, D5G, D11R, D9, D6R II, D7E
- Mini Excavators: 307D, 310
- Wheel Loaders: 966H, 972H, 950 GC, 966K, 834, 836, M314, 906K, 988K, 910, R1700 XE, RM400, 926M, 924K, 980
- Off-Highway Trucks: 794 AC, 793F, 793D, 740B, 797F, 798 AC, 7495, 796 AC, 789D, 793, 789
