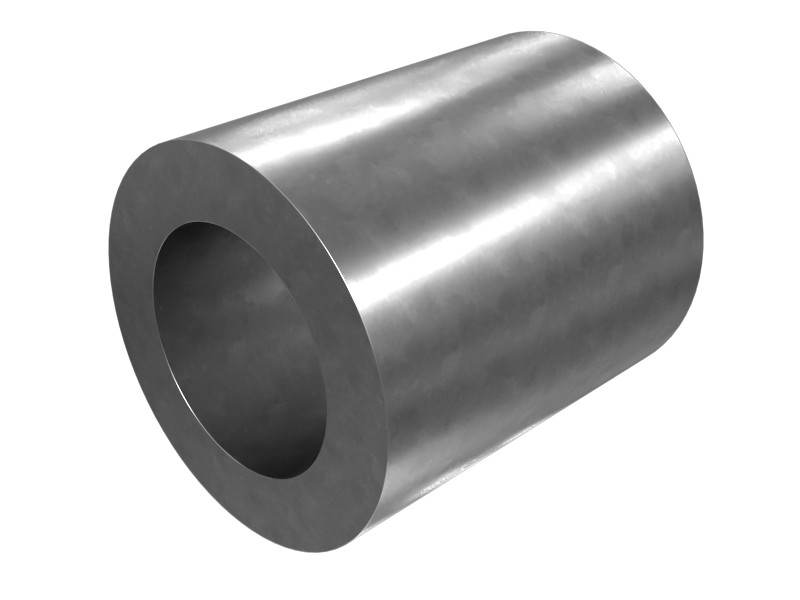

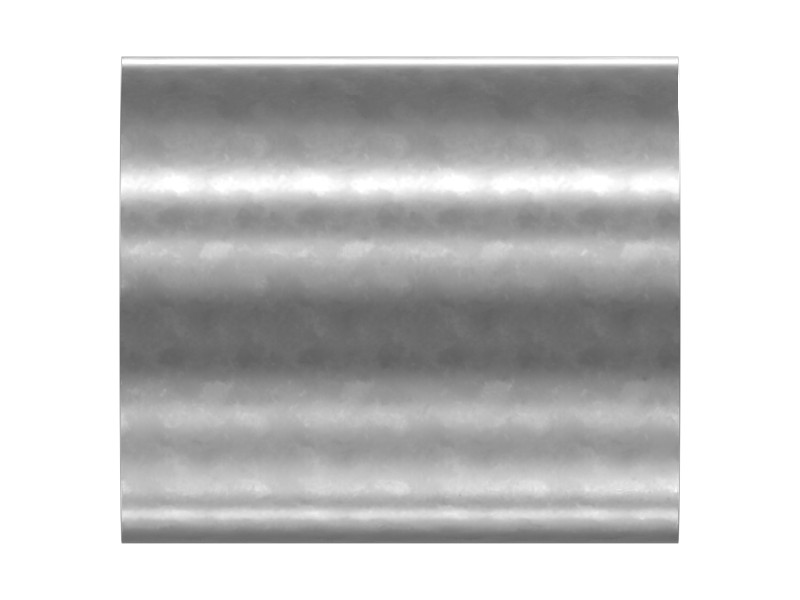

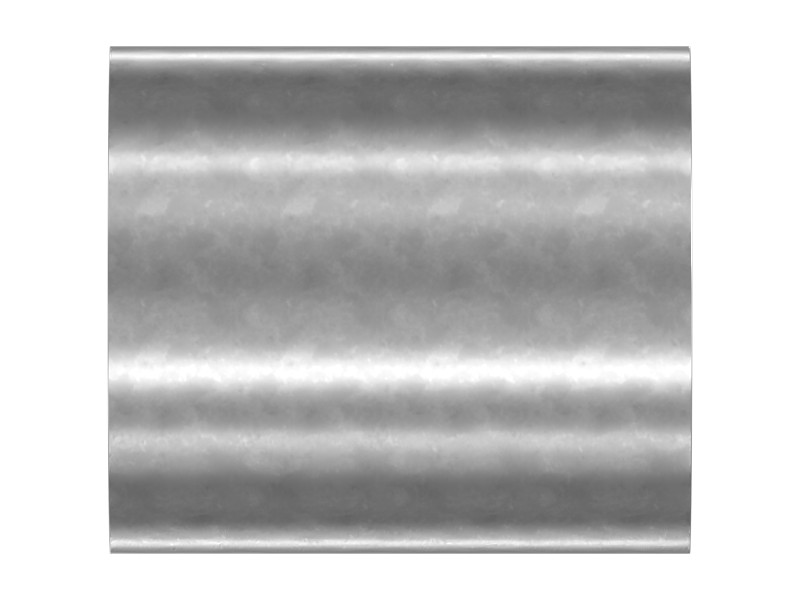

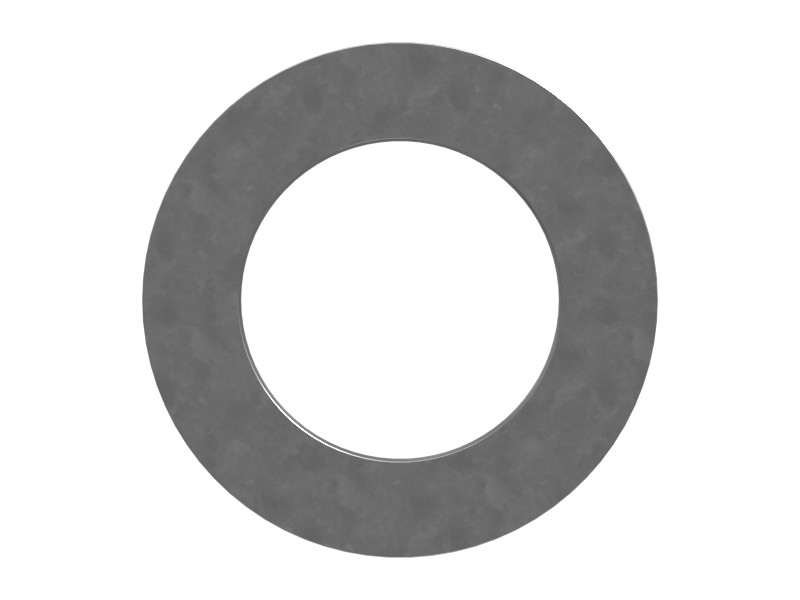

108-0961 40 mm Thick Gear Shim
Cat® 35 mm OD bevel gear case shim provides precise spacing and alignment between gears.
Description
Cat® shims are typically used to provide additional stretch length in fasteners to reduce preload loss or narrow the cyclic stress range of machine working loads. They are used to establish and maintain the functional relationship of related parts in machine systems.
Features
- For use with M20 fasteners
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Specifications
| Type | Center Hole Slot |
|---|---|
| Gasket Type | Flat |
| Outside Diameter | 35 mm (1.377 in) |
| Inside Diameter | 22 mm (0.866 in) |
| Thickness | 40 mm (1.575 in) |
| Length | 40 mm (1.574 in) |
| Coating | Zinc Phosphate and Oil |
| Center Hole Shape | Non-Threaded |
Compatible Equipment
- Excavators: 313D2
- Off-Highway Trucks: 793F, 785D, 793, 793D, 789D, 785, 777, 789
- Skid Steer Loaders: 313D2 LGP
