Description

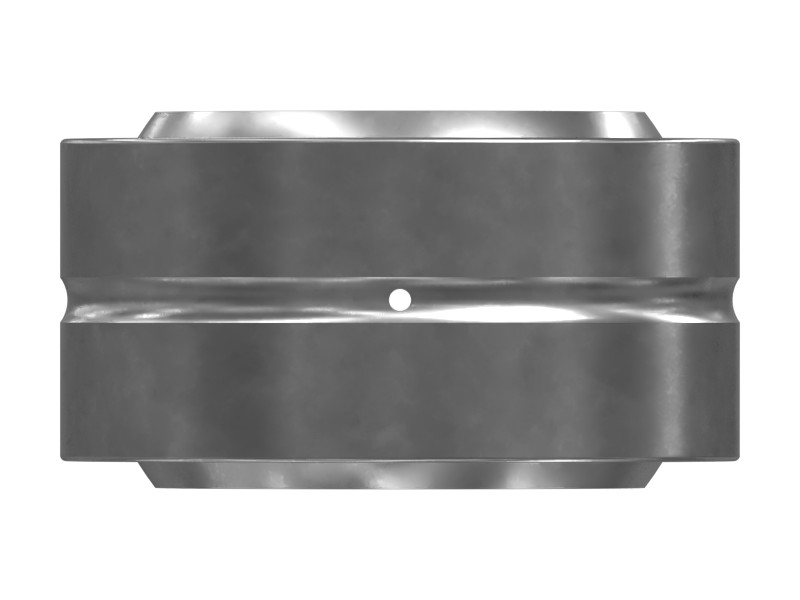

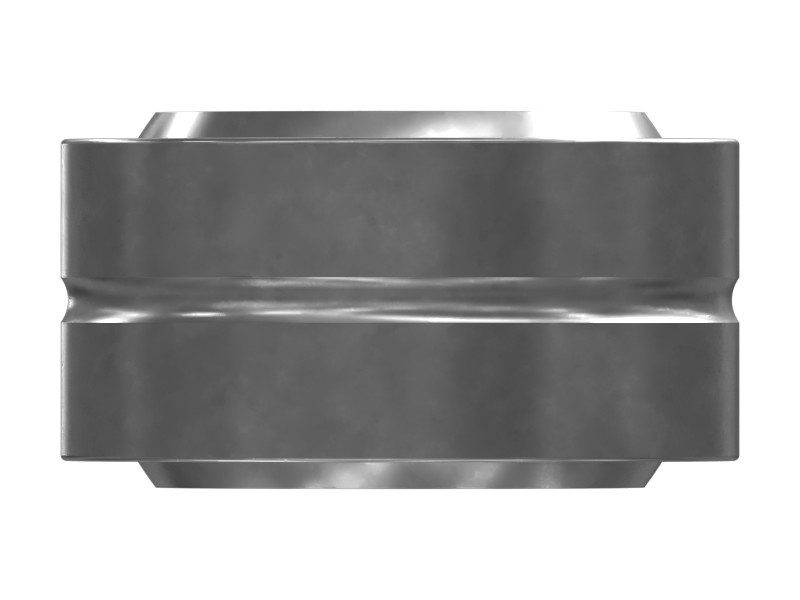

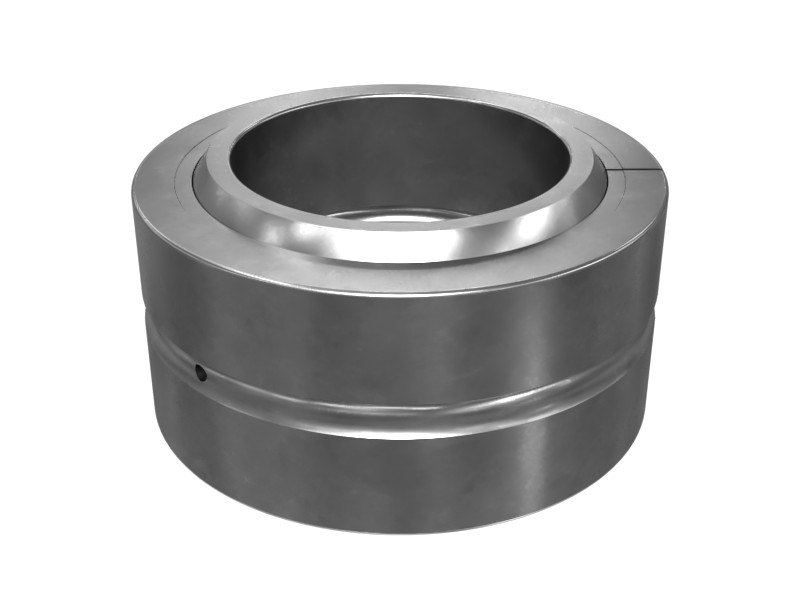

Cat bearings are designed for specific applications based on load, operating speed, temperature range, size and past performance, and are manufactured to the highest quality standards for long life and high performance. Self-aligning spherical bearings consist of a convex inner ring and a concave outer ring that rotate to relieve stresses on the shaft and bearing assembly caused by deflection. Caterpillar design engineers match each part with the right combination of size, material, surface finish and manufacturing process so it works effectively and wears in sync with all other adjacent and dependent parts.
Features
- Maintenance-free spherical bearing
- With lubrication groove and hole

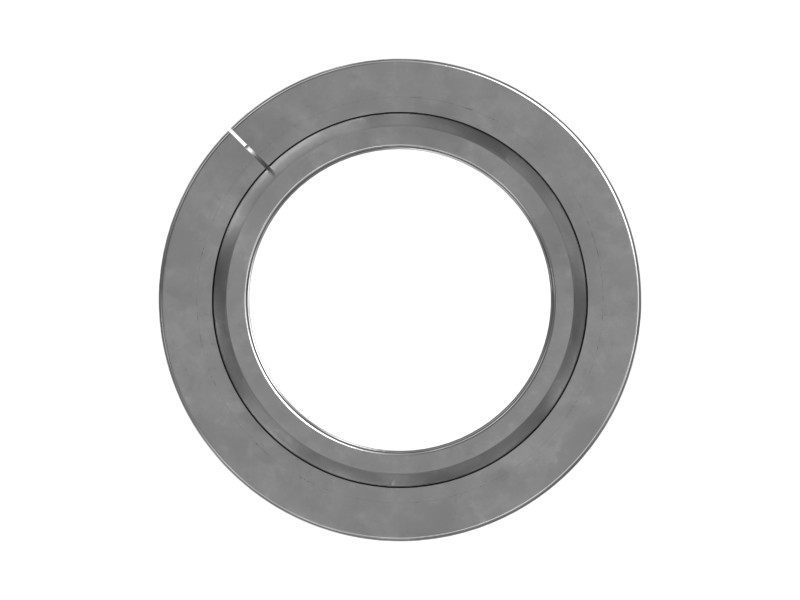

- Single- or double-split outer race
- With Seals on Both Sides
Applications
Cat self-aligning spherical bearings are commonly used in applications with misalignment, high radial loads and axial loads in both directions. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Diameter | 109.52 mm (4.312 in) |
|---|---|
| Material | Steel Bearing |
| Outside Diameter | 120.65 mm (4.750 in) |
| Inside Diameter | 76.2 mm (3.000 in) |
| Length | 66.675 mm (2.625 in) |
| Inside Length | 66.675 mm (2.625 in) |
| Outside Length | 57.15 mm (2.250 in) |
Compatible Equipment
- Dozers: D6N, D5M, D6M, D5N
- Off-Highway Trucks: 740, 735, 793F
