Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

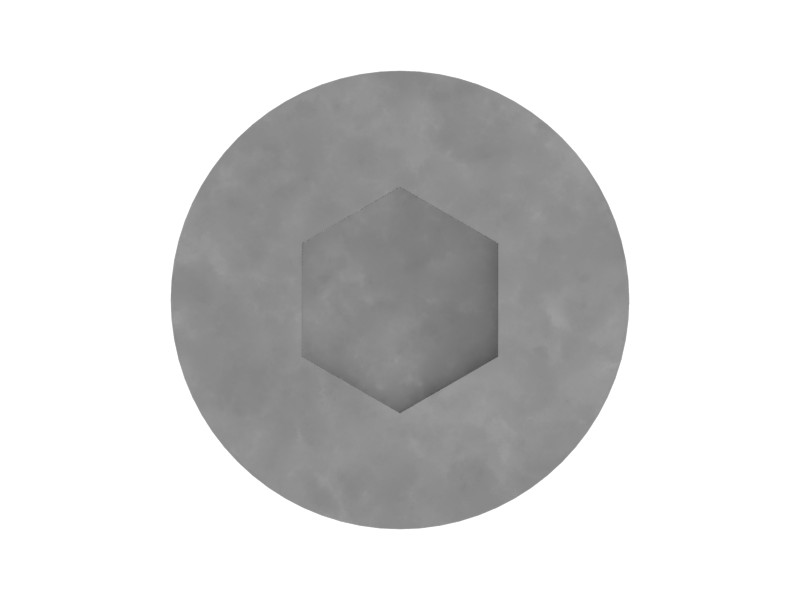

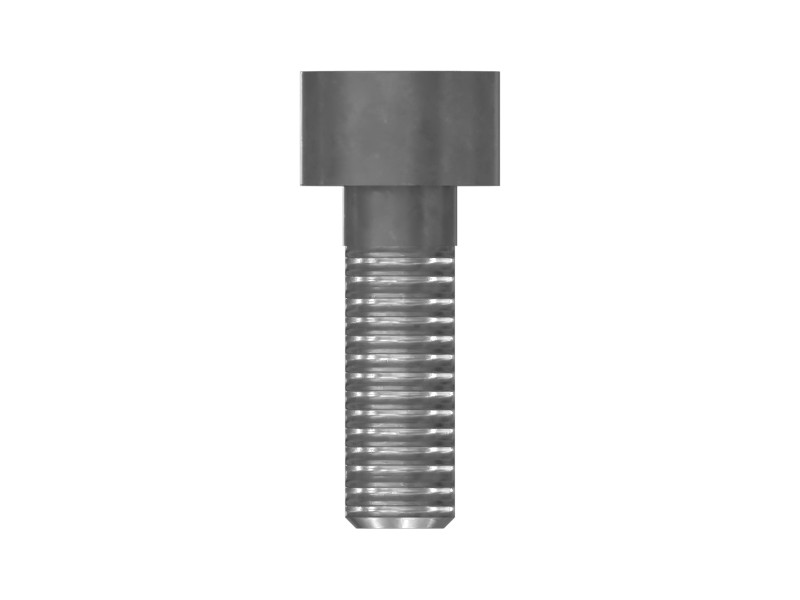

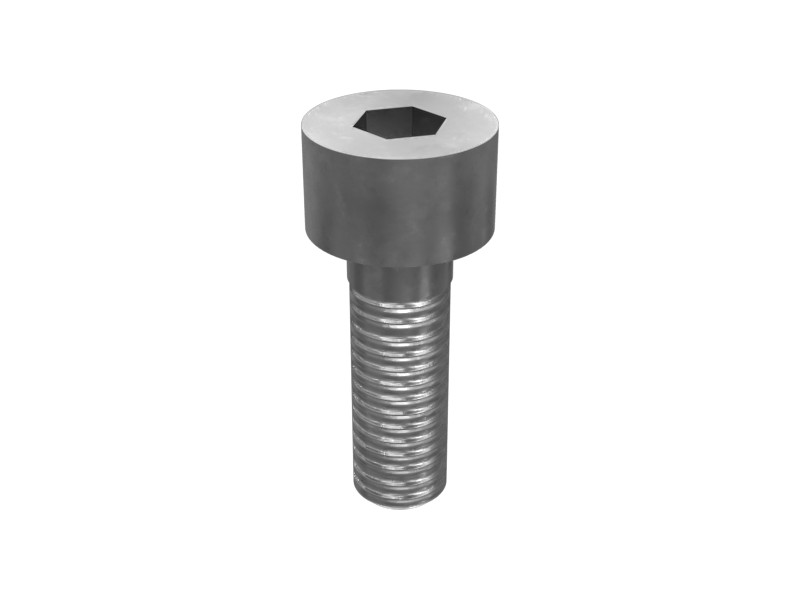

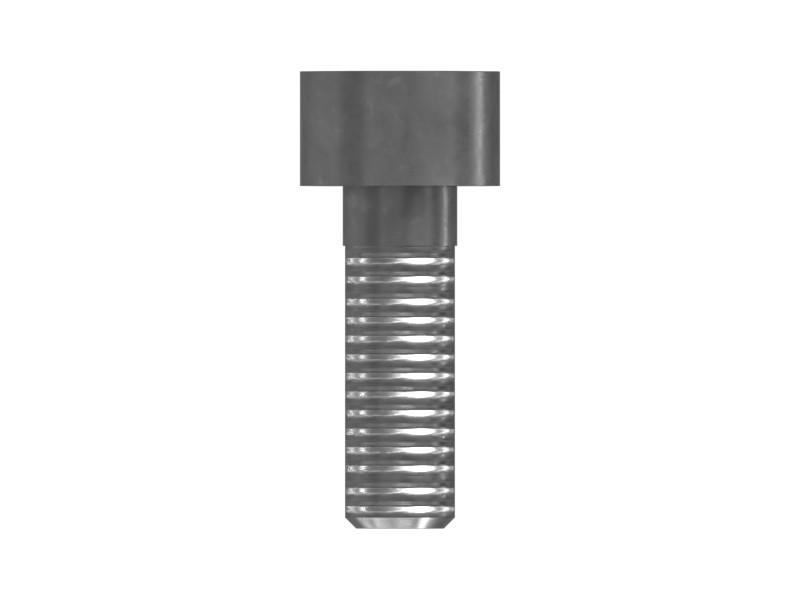

Socket head bolts are used in designs where there is not enough clearance for hex head bolts and assembly tools.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat bolts, nuts, and washers are specially designed to work together as a system to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Bolt Type | Socket Head |
|---|---|
| Thread Direction | RH |
| Locking Feature | Nylon Patch |
| Thread Size | M4 mm (0 in) |
| Class or Grade | ISO 898-1 Class 12.9 |
| Coating | Zinc Phosphate + Oil |
| Material | STEEL |
| Thread Size (Diameter × Pitch) | M4 X 0.7 mm |
| Bolt Length | 12 mm (0.472 in) |
| Handle Length | 2 mm (0.083 in) |
Compatible Equipment
- Track Loaders: 963, 963K, 953D, 963D, 826G, 826H, 824G, 953, 973K, 953K
- Dozers: D6R II, D6N, D8T, D6T, D7R II, D6T LGP, D6R III, D7R, D6R XL, D6R, D7E, D9T, D5N, D11T, D10T, D10T2, D6R LGP, D8
- Excavators: 365B, 365B L, 385B, 6030, 6040
- Wheel Loaders: 950G, 980H, 966H, 980G, 972G, 962G, 950H, 972H, R1700 XE
- Off-Highway Trucks: 785D, 789D, 777, 785, 789
- Asphalt Pavers: AP-600D
Additional information
| Machine Model | 365B, 365B L, 385B, 6030, 6040, 777, 785, 785D, 789, 789D, 824G, 826G, 826H, 950G, 950H, 953, 953D, 953K, 962G, 963, 963D, 963K, 966H, 972G, 972H, 973K, 980G, 980H, AP-600D, D10T, D10T2, D11T, D5N, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7E, D7R, D7R II, D8, D8T, D9T, R1700 XE |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers |
| Part Source | Genuine OEM |
