Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

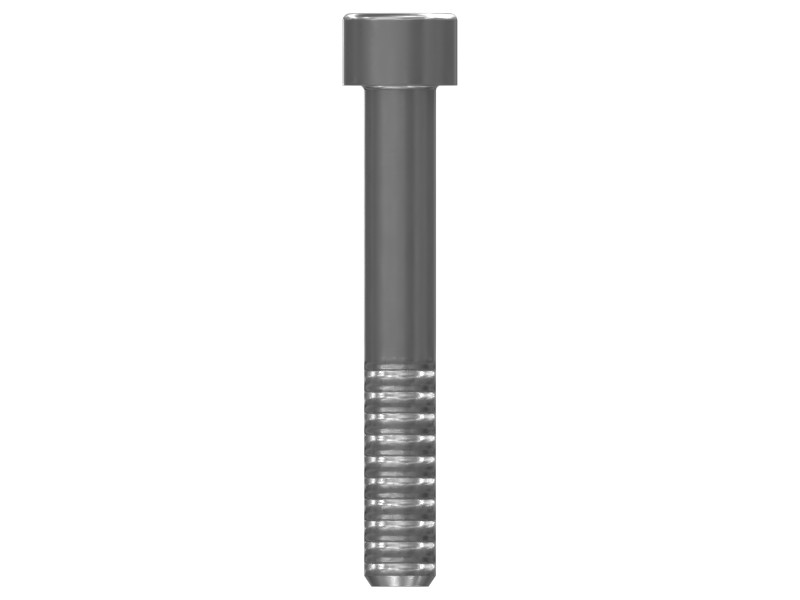

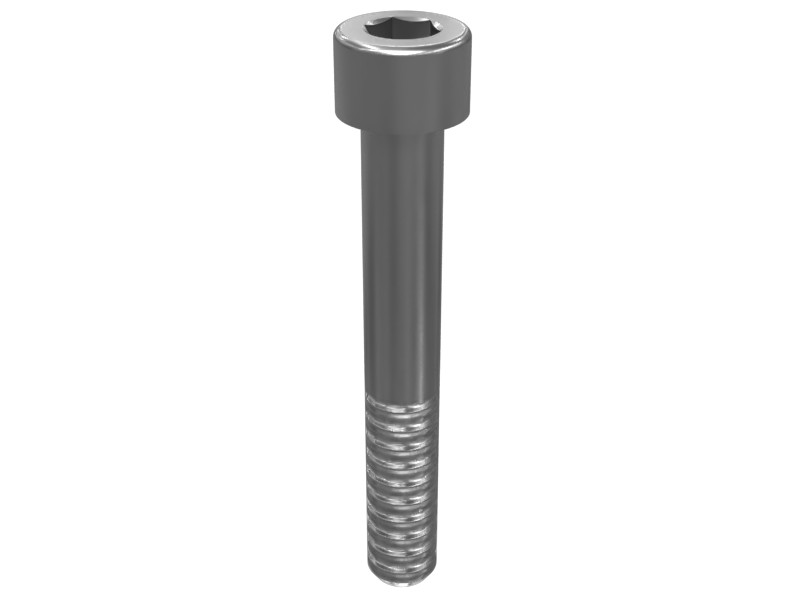

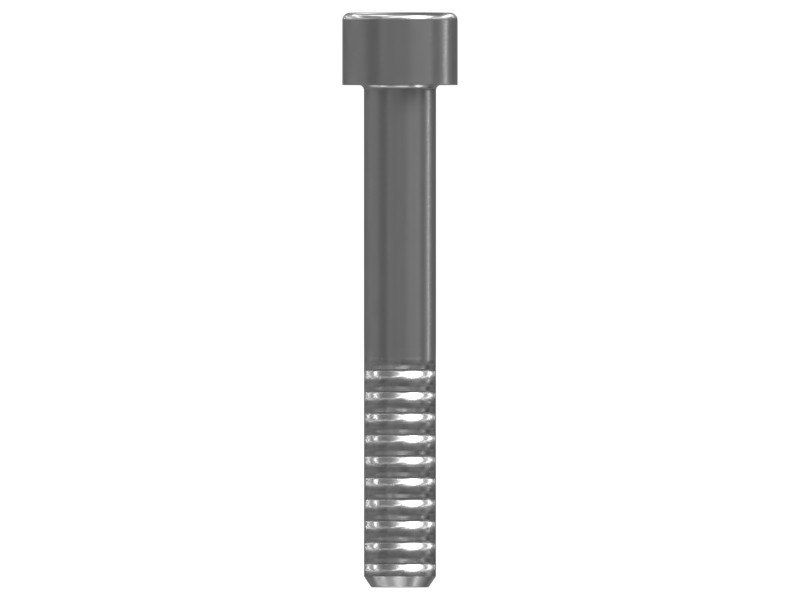

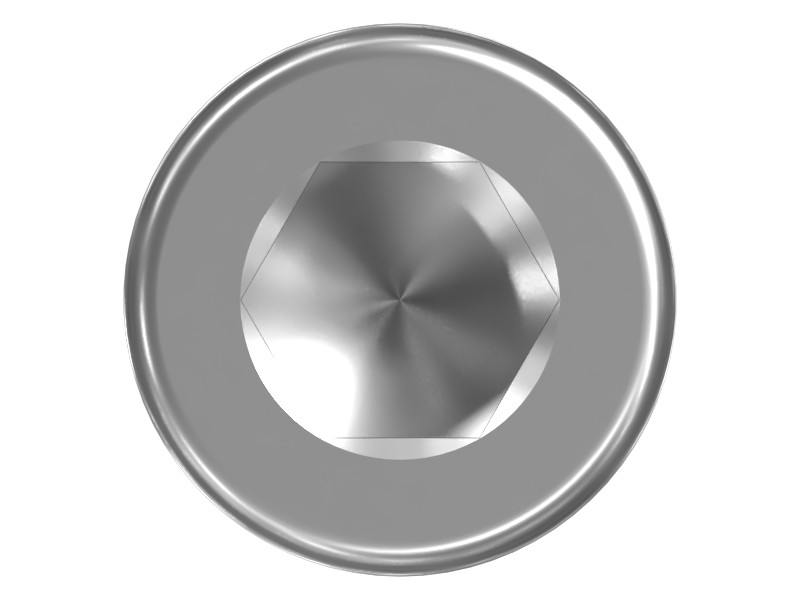

Socket head bolts are used in designs where there is not enough clearance to install hex head bolts and use assembly tools.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | ISO 898-1 Class 12.9 |
|---|---|
| Thread Direction | RH |
| Thread Size | M10 mm (0 in) |
| Bolt Type | Socket Head |
| Material | Steel |
| Coating | Zinc Flake |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 70 mm (2.756 in) |
| Handle Length | 38 mm (1.496 in) |
Compatible Equipment
- Generator Sets: 3512B
- Cold Planers: PL61
- Wheel Excavators: M320, M315, M315D, M322D, M313D, M315D2, M317D2
- Engines: C13, C15, C18
- Mini Excavators: 307, 308, 308.5
- Excavators: 330D L, 349F L, 336D L, 320, 329D L, 320D2 L, 336E L, 323D L, 325D L, 320D FM, 325C, 329E L, 335F LCR, 329E, 330 L, 330D2, 336 GC, 336E, 325D, 323, 328D LCR, 345D L, 385C L, 345C L, 365C, 349D L, 374F L, 390F, 385C, 349E L VG, 340D2 L, 345C, 365C L, 340D L, 385B, 365B, 320B, 336, 336F L, 336D2 GC, 336F, 336D2 L, 330C L, 324D L, 325C L, 330D2 L, 324D, 320C, 320D RR, 312C L, 320D L, 340, 325, 395, 335, 323D2, 323D2 L, 336E LN, 320 GC, 325B L, 320E, 312C, 320D2 GC, 336F LN, 330D, 315C, 323D, 326D L, 320D GC, 345 GC, 320D3, 6020B, 305 CR, 349E L, 390D, 345D, 352F, M325D L MH, 365B L, 336D, 329D, 320D2, 326D2, 390F L, 349D, 349D2 L, 390D L, 329D2 L, 336D2, 320D, 329D2, 326D2 L, 330, 374F, 374D L, 349D2, 307.5, 301.7D
- Wheel Loaders: M314, 988G, 988H
Additional information
| Machine Model | 301.7D, 305 CR, 307, 307.5, 308, 308.5, 312C, 312C L, 315C, 320, 320 GC, 320B, 320C, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320E, 323, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325, 325B L, 325C, 325C L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 L, 330C L, 330D, 330D L, 330D2, 330D2 L, 335, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336E, 336E L, 336E LN, 336F, 336F L, 336F LN, 340, 340D L, 340D2 L, 345 GC, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E L, 349E L VG, 349F L, 3512B, 352F, 365B, 365B L, 365C, 365C L, 374D L, 374F, 374F L, 385B, 385C, 385C L, 390D, 390D L, 390F, 390F L, 395, 6020B, 988G, 988H, C13, C15, C18, M313D, M314, M315, M315D, M315D2, M317D2, M320, M322D, M325D L MH, PL61 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
