Description

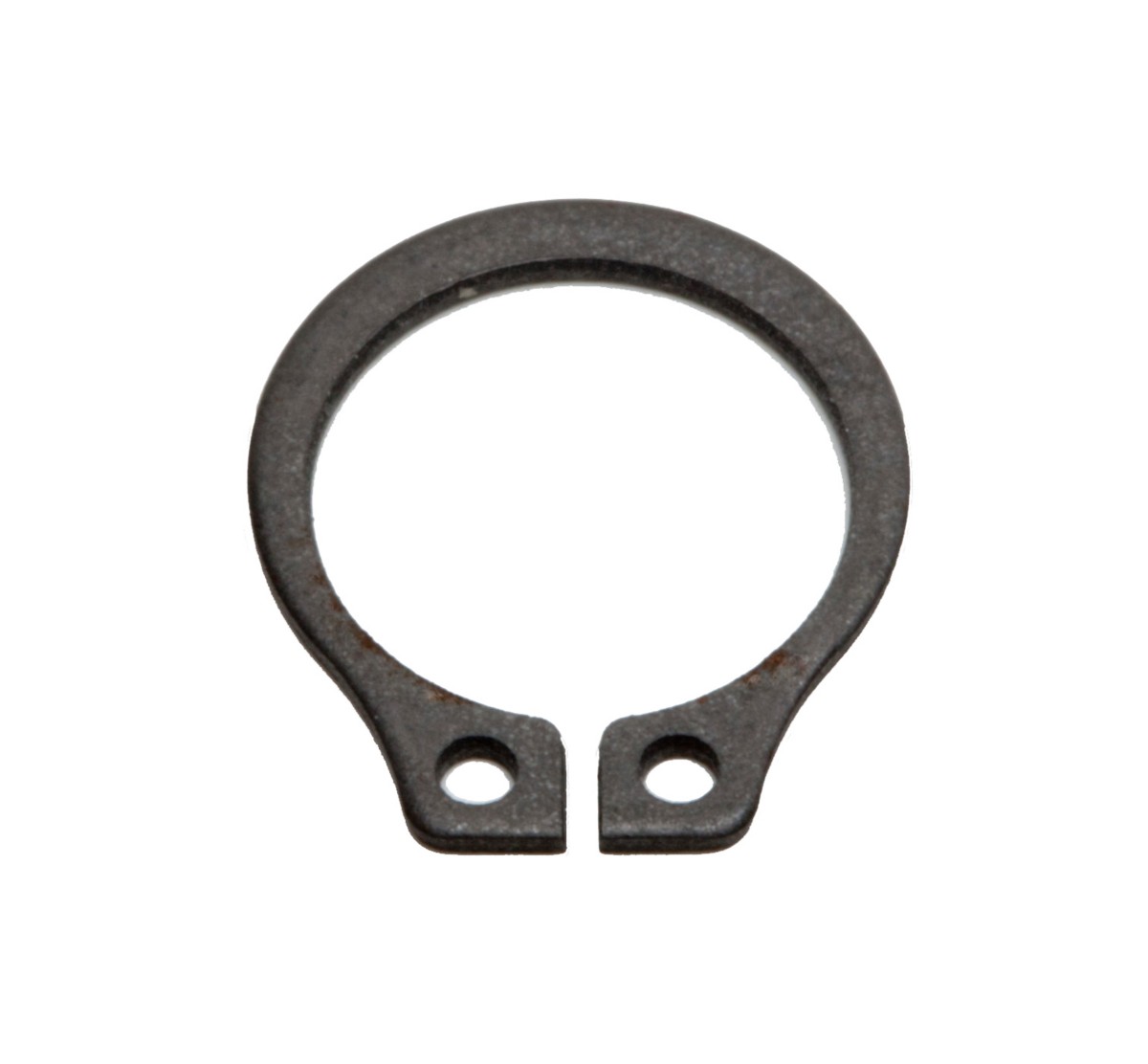

The transmission clutch external retaining ring is a specific type of retaining ring in the transmission system used to secure and retain clutch components. It is an external ring that fits into a groove or notch on the outside of the clutch group, keeping the clutch components properly positioned during operation.
Features
- Ensures a tight, reliable fit.
- Able to withstand maximum forces and loads.
- Non-corrosive.
Applications
The transmission clutch external retaining ring is a key component in the transmission system that keeps clutch components properly positioned and stable during engagement and disengagement.
Specifications
| Snap Ring Type | External |
|---|---|
| Free Diameter – A | 2.87 in |
| Cross Hole | None |
| Material Description | Steel Retaining Ring |
| Thickness | 4.5 mm |
| Material | Carbon Steel |
| Thickness – B | 0.177 in |
| Remarks | Free Diameter: 73, Radial Wall: 0, Lug Height: 0, Groove Width: 4.7, Groove Diameter: 74.3, Shaft Diameter: 79.5 |
Compatible Equipment
- Generator Sets: C7.1
- Wheel Loaders: 950L, 962L, 950 GC, 950
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
