Description

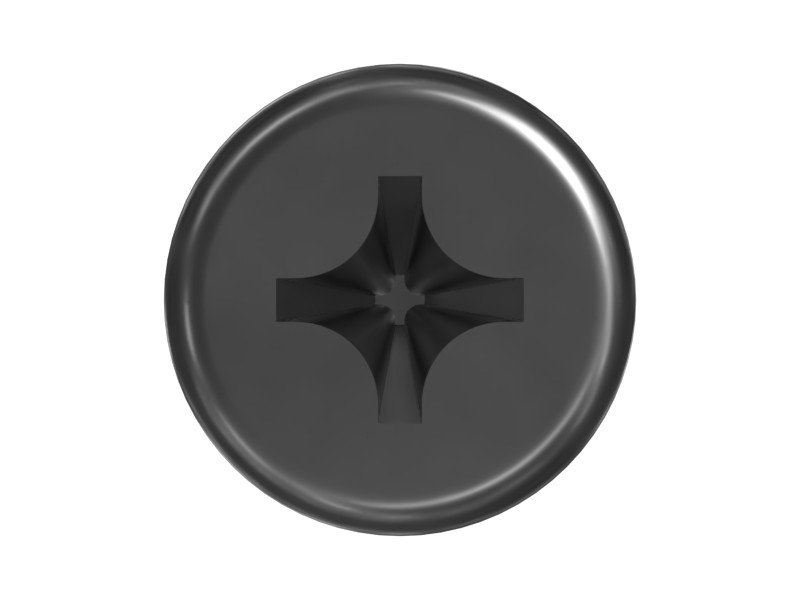

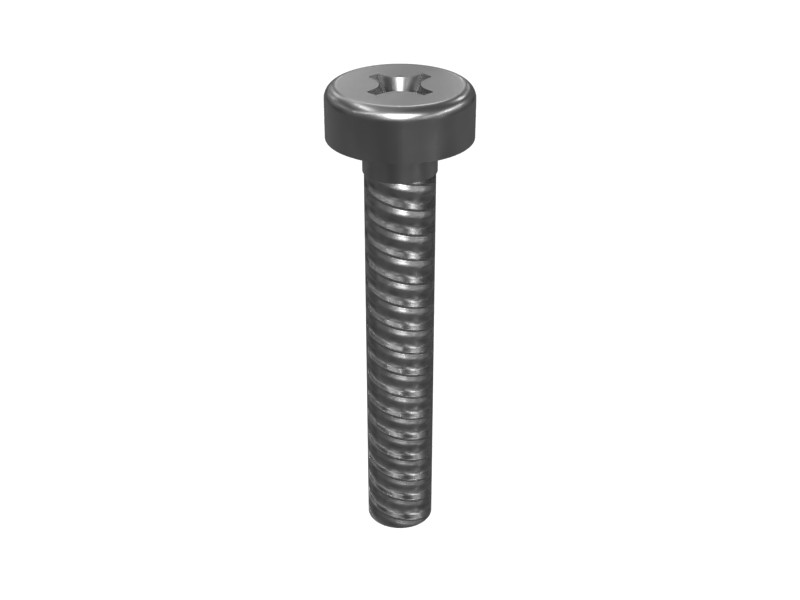

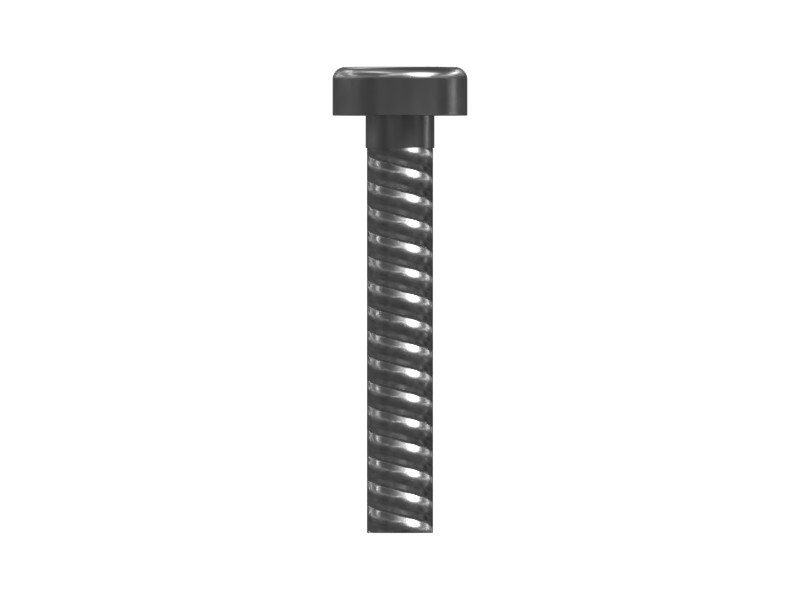

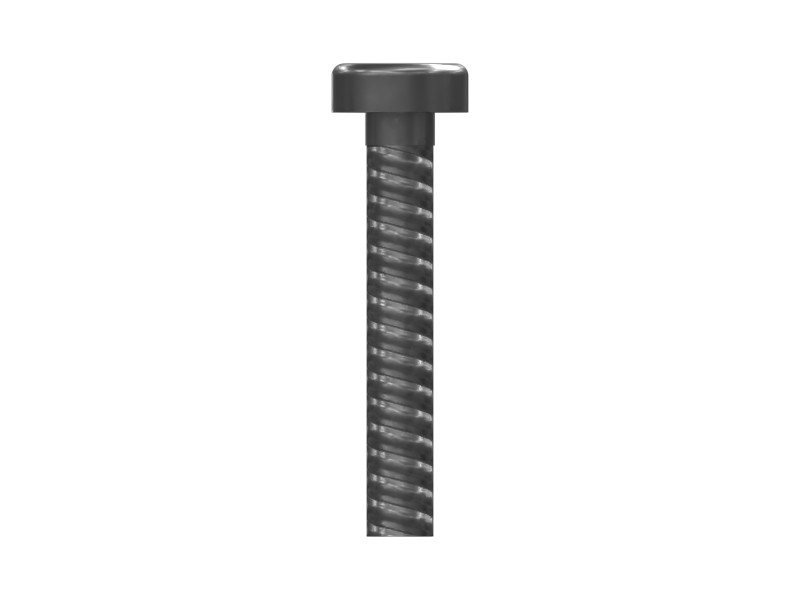

Machine screws are available in a variety of head styles, drive types, sizes, and materials.
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Specifications
| Bolt Type | Rounded Head (Pan) |
|---|---|
| Thread Direction | RH |
| Handle Length | 2.1 mm (None in) |
| Bolt Length | 25.4 mm (1 in) |
| Class or Grade | ASME B18.6.3 (60 ksi) |
| Thread Size (Diameter × Pitch) | No. 8 (.164)x32 mm |
| Thread Size | No. 8 (.164) mm (0 in) |
| Head Type | Oil Pan |
| Material | Steel |
| Coating | Zinc Flake |
| Locking Feature | None |
| Length | 1 in |
Compatible Equipment
- Generator Sets: 3406C, 3516C, 3512B, 3512E, G3516C, G3516, C9, 3406B
- Track Loaders: 816F, 990K
- Compactors: CS-563E, C9.3B, C-15, C-9
- Engines: C32, C15, C7, C27, C11, C13, C6.6, C18, C175-16, C12
- Excavators: 3456, 3512C, 3516B, 120 GC, 3508B, 3516E
- Skid Steer Loaders: 3126B
- Motor Graders: 140 GC, 140H, 120H, 140K, 12K, 160K, 12H, 16H, 3606
- Dozers: D7, D6T LGP, D6R, D7R II, D4G, D6T, D6R III, D7E, D7R, D6R II, D8R, D5G, D6R XL, D3G
- Wheel Loaders: 966F
- Off-Highway Trucks: 794 AC, 772G, 770G, 796 AC, 798 AC
Additional information
| Machine Model | 120 GC, 120H, 12H, 12K, 140 GC, 140H, 140K, 160K, 16H, 3126B, 3406B, 3406C, 3456, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 3606, 770G, 772G, 794 AC, 796 AC, 798 AC, 816F, 966F, 990K, C-15, C-9, C11, C12, C13, C15, C175-16, C18, C27, C32, C6.6, C7, C9, C9.3B, CS-563E, D3G, D4G, D5G, D6R, D6R II, D6R III, D6R XL, D6T, D6T LGP, D7, D7E, D7R, D7R II, D8R, G3516, G3516C |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
