Description

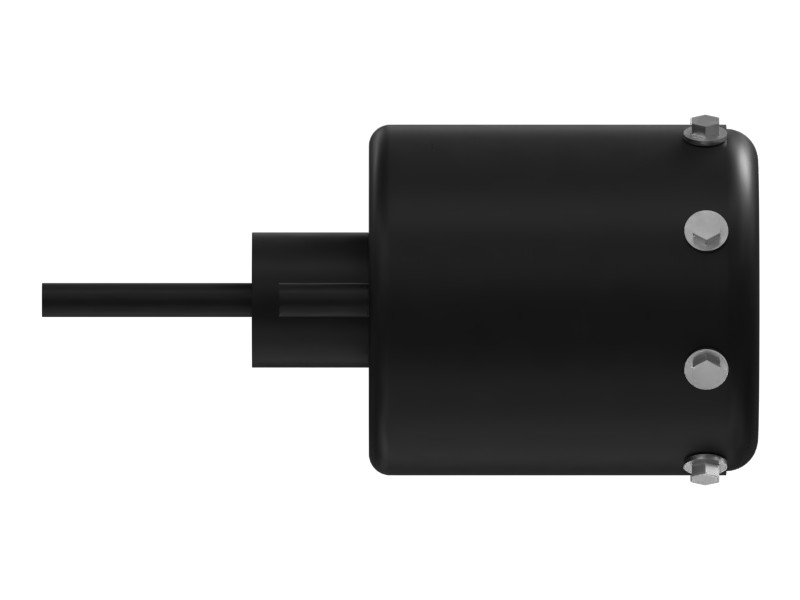

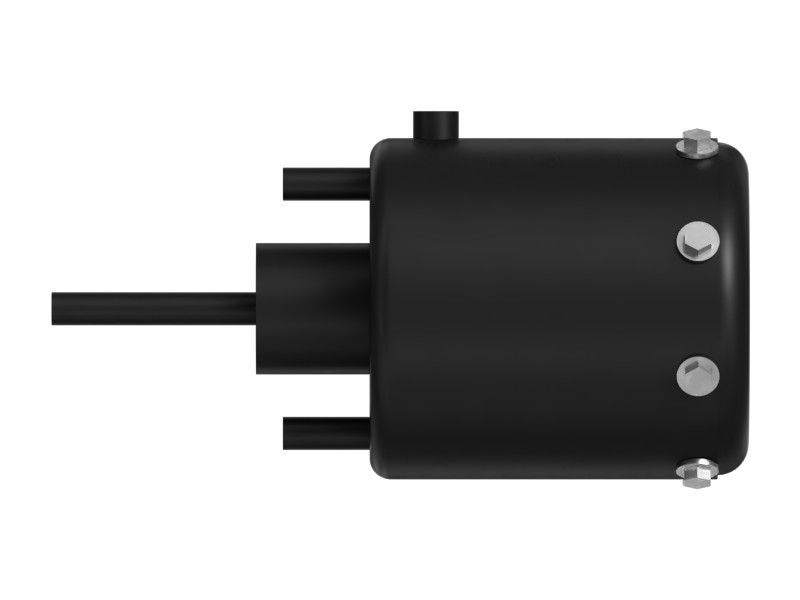

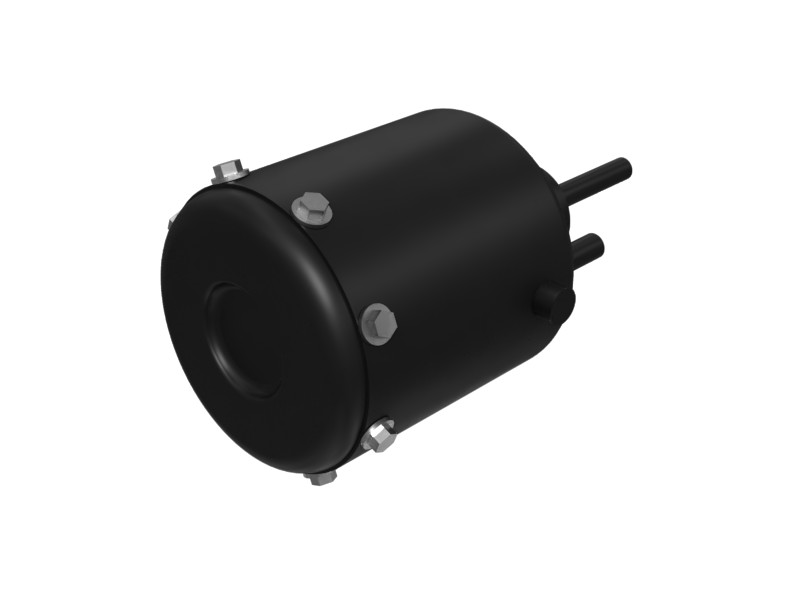

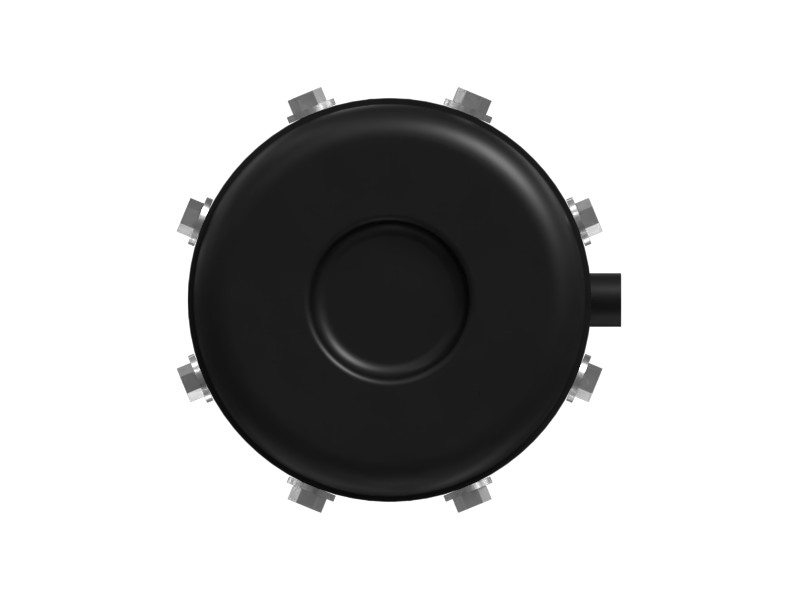

The Cat brake actuator group converts pressure into mechanical force to activate the brakes on Cat heavy equipment. Cat actuators ensure your equipment runs at its best and work together with other Cat parts to help your equipment reach its full potential.
Features
- Service and parking brake actuator group
- 76.2 mm (3.00 in) stroke
- Maximum Working Pressure: 862 kPa (125.02 psi)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Steel |
|---|---|
| Outside Diameter | 165.1 mm (6.50 in) |
| Thread Size | 5/8-18 UNF (3X) in |
Compatible Equipment
- Motor Graders: 16H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
