Description

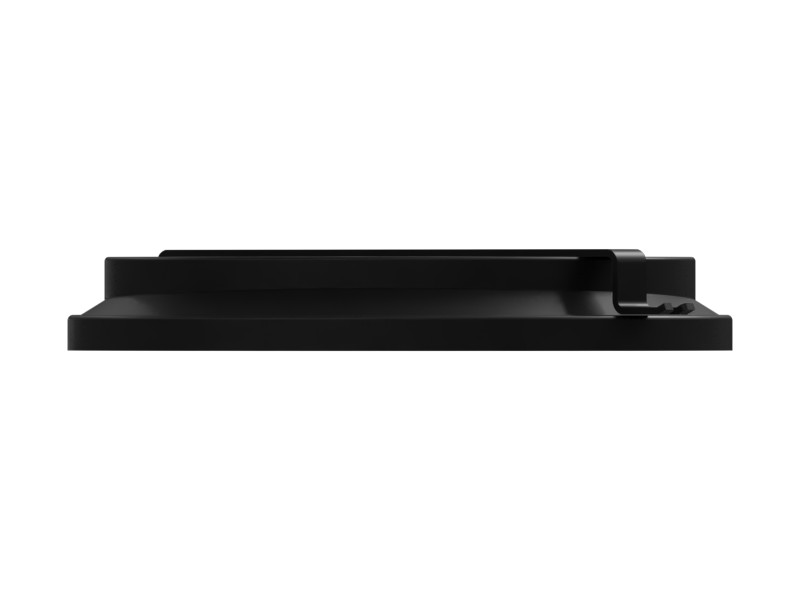

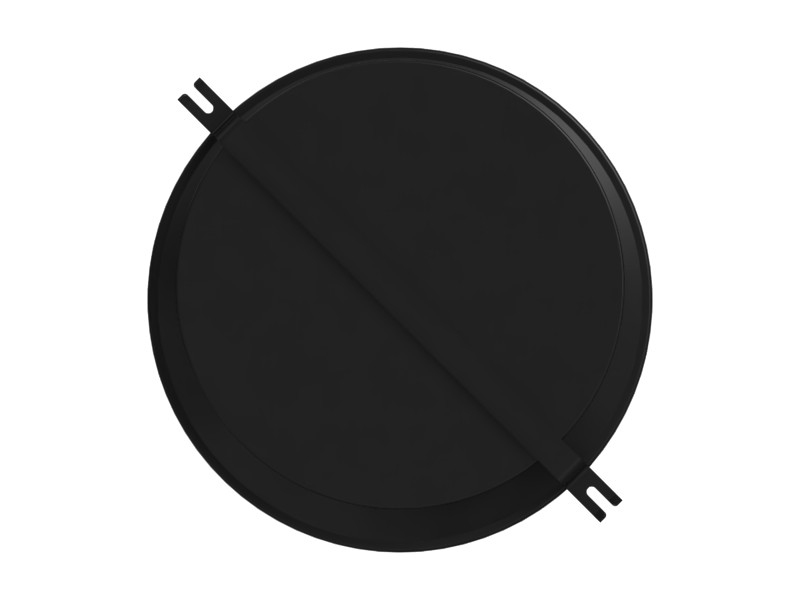

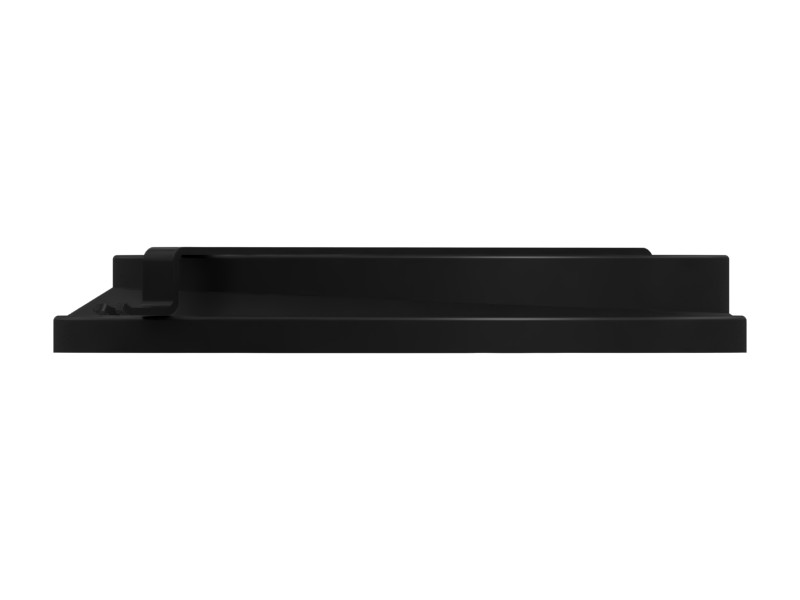

Cat Air Filter Covers enclose the air filter element that supplies clean air to the engine and lift off for access to the element.
Features
- Air filter cover with instruction decal
- Outside Diameter: 408 mm (16.06 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Outside Diameter | 408 mm (16.06 in) |
|---|---|
| Overall Height | 486.2 mm (19.142 in) |
| Depth | 54.9 mm (2.161 in) |
| Number of Latches | 2 |
| Dust Tube | 0 mm (0 in) |
| Width | 407.9 mm (16.059 in) |
| Overall Depth | 54.9 mm (2.161 in) |
| Overall Width | 407.9 mm (16.059 in) |
| Type | Round |
| Height | 55 mm (2.16 in) |
Compatible Equipment
- Generator Sets: 3516C
- Engines: C15, C18
- Excavators: 345D L, 345C L, 349D L, 345C, 350 L, 345B, 345D, 349D2 L, 349D2, 349D
- Wheel Loaders: R2900G, R3000H
- Asphalt Pavers: AD30
