Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

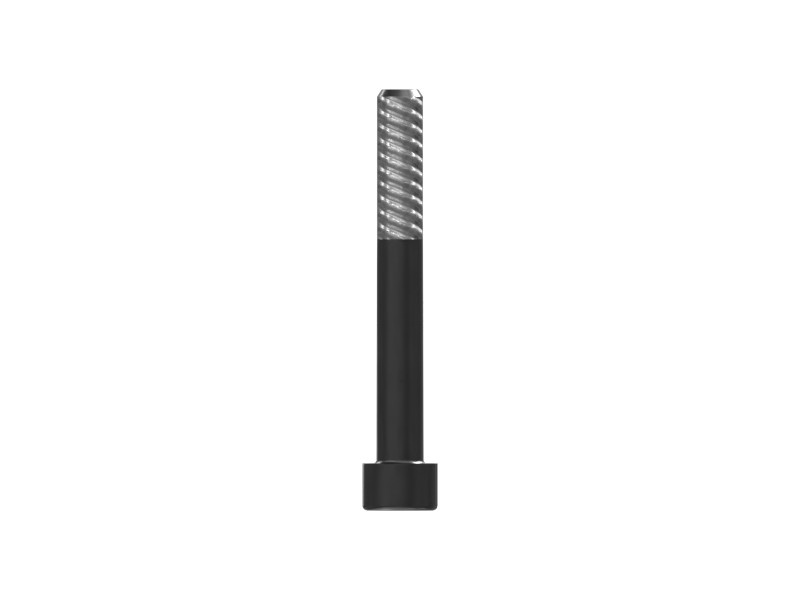

Socket head bolts are used in designs where there is not enough clearance for hex head bolts and assembly tools.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat bolts, nuts, and washers are specially designed to work together as a system to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 12.9 |
| Thread Size | M10 mm (0 in) |
| Bolt Type | Socket Head |
| Material | STEEL |
| Coating | Zinc Flake |
| Thread Size (Diameter × Pitch) | M10 X 1.5 mm |
| Bolt Length | 80 mm (3.15 in) |
| Handle Length | 48 mm (1.89 in) |
Compatible Equipment
- Motor Graders: 316F
- Generator Sets: 3512B
- Cold Planers: PL61
- Wheel Excavators: M315, M315GC, M313D, M315D2, M317D2, M320D2, M322D, M315D
- Compactors: CB10
- Engines: C175-16
- Mini Excavators: 307B
- Excavators: 330D L, 313 GC, 316 GC, 313, 329D L, 336D L, 312C L, 314C, 312C, 336D2 L, 315D L, 324D L, 323D2, 320D L, 324D, 312D2 GC, 320C, 325B L, 328D LCR, 336E LH, 325C, 320D RR, 320D GC, 330D2, 320D2 L, 325D L, 312D2 L, 320D3, 312D2, 336D2 GC, 312E L, 330D, 323D L, 314D LCR, 320D FM, 313F LGC, 318D2, 336D2 XE, 336F L XE, 314D CR, 313D2, 325C L, 312D L, 323D2 L, 325D, 313F L, 316 GX, 312 GX, 312 GC, 340, 312D, 320D2 GC, 311D LRR, 330D2 L, 330C L, 313D2-GC, M325D L MH, 313 GX, 318D2 L, 326D L, 312E, 315F LCR, 313D2 GC, 330 L, 323D, 312F, 336E H, 374F L, 352F, 340D2 L, 340D L, 336, 329D, 336D, 336D2, 320D2, 320D, 326D2, 329D2, 329D2 L, 374F, 326D2 L
- Wheel Loaders: M314
Additional information
| Machine Model | 307B, 311D LRR, 312 GC, 312 GX, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313, 313 GC, 313 GX, 313D2, 313D2 GC, 313D2-GC, 313F L, 313F LGC, 314C, 314D CR, 314D LCR, 315D L, 315F LCR, 316 GC, 316 GX, 316F, 318D2, 318D2 L, 320C, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325B L, 325C, 325C L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 330 L, 330C L, 330D, 330D L, 330D2, 330D2 L, 336, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E H, 336E LH, 336F L XE, 340, 340D L, 340D2 L, 3512B, 352F, 374F, 374F L, C175-16, CB10, M313D, M314, M315, M315D, M315D2, M315GC, M317D2, M320D2, M322D, M325D L MH, PL61 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Motor Graders, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
