Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

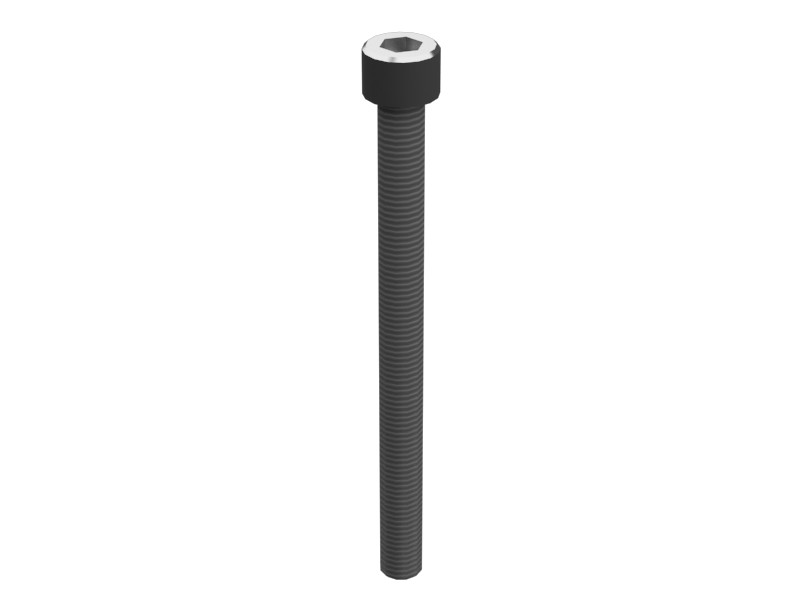

These bolts can be installed when there is not enough clearance to use hex head bolts.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency.
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat bolts, nuts, and washers are designed as a system that works together to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a performance-based system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications

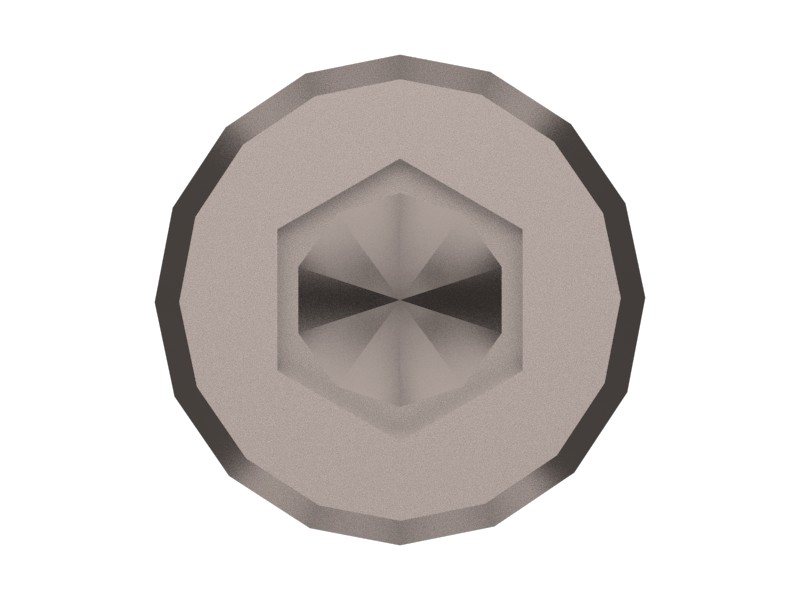

| Bolt Type | Socket Head |
|---|---|
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 12.9 |
| Bolt Length | 120 mm (4.724 in) |
| Thread Size (Diameter × Pitch) | M10x1.5 mm |
| Coating | Zinc Flake |
| Thread Direction | RH |
| Thread Size | M10 mm (0 in) |
| Handle Length | 88 mm (3.465 in) |
Compatible Equipment
- Track Loaders: 824G, 826G, 826H
- Wheel Excavators: M320, M315, M320D2, M315D2, IT14G, M315D, M322D, M317D2, M313D
- Excavators: 345D L, 325B L, 328D LCR, 320D FM, 320D RR, 330 L, 320B, 385C, 345D, 390D, 385C L, 385C FS, 395, 320D, 390D L
- Wheel Loaders: 980H
- Off-Highway Trucks: 740B, 740
- Skid Steer Loaders: 236
Additional information
| Machine Model | 236, 320B, 320D, 320D FM, 320D RR, 325B L, 328D LCR, 330 L, 345D, 345D L, 385C, 385C FS, 385C L, 390D, 390D L, 395, 740, 740B, 824G, 826G, 826H, 980H, IT14G, M313D, M315, M315D, M315D2, M317D2, M320, M320D2, M322D |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Off-Highway Trucks |
| Part Source | Genuine OEM |
