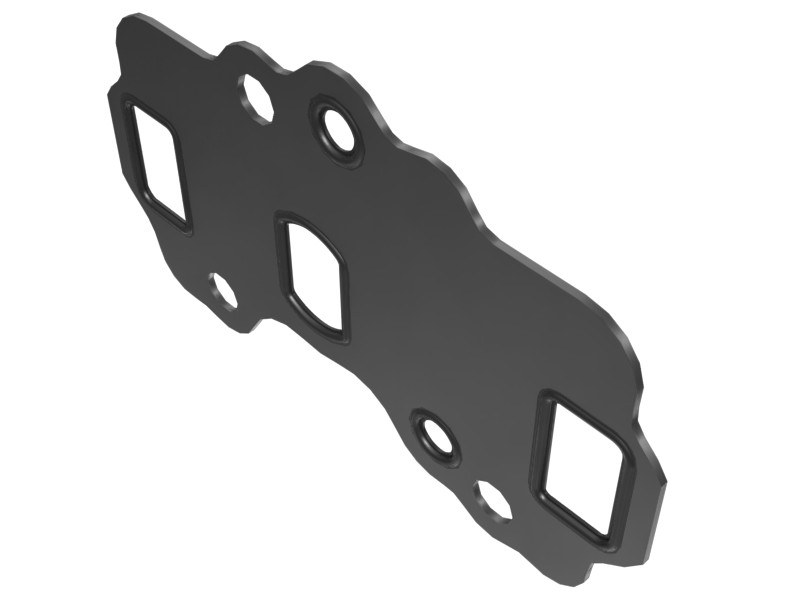

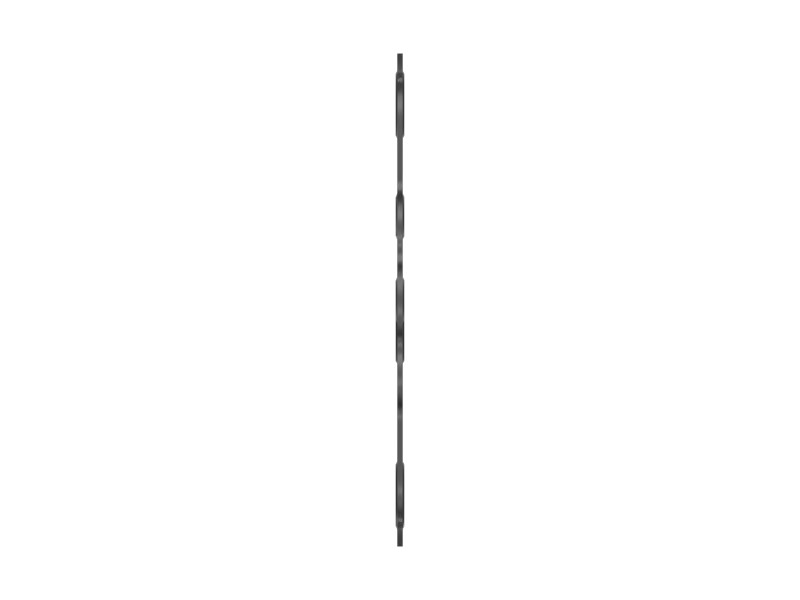

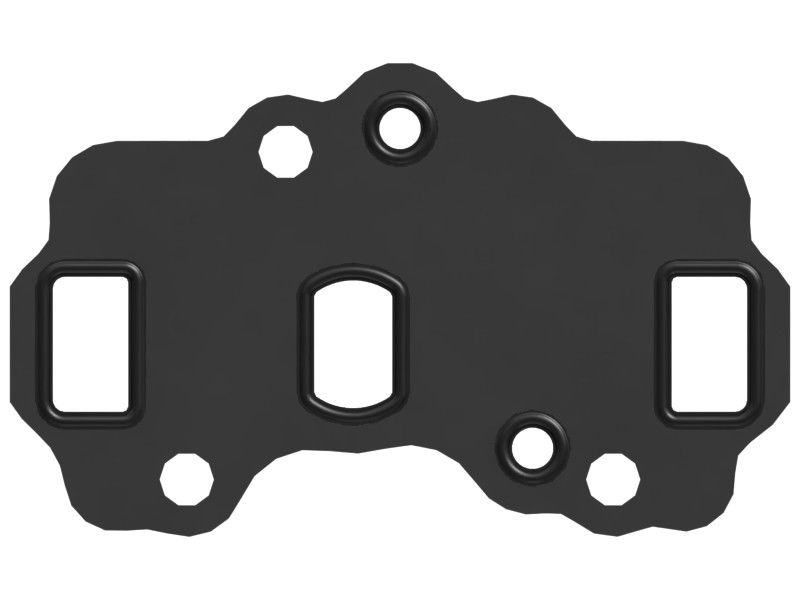

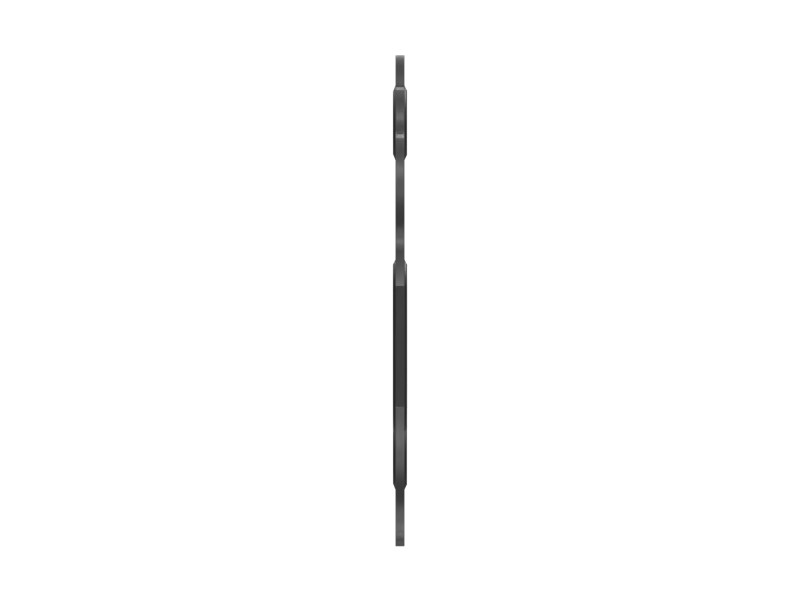

101-0509 Hydraulic Control Valve Integral Seal
Cat® hydraulic control valve integral seal ensures leak-free flow and optimal performance
Description
Cat® edge-bonded seals are used in static sealing applications and are designed with rubber bonded to a plastic or metal carrier to prevent leakage and contamination.
Features
Cat edge-bonded seals are easy to assemble, offer high bolt load retention and conform better to the surfaces of mating parts. Cat edge-bonded seals are made of materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion and give the seal excellent compression set resistance. Genuine Cat seals protect your investment.
Specifications
| Material | Nitrile / NBR / HNBR / XNBR Rubber |
|---|---|
| Overall Length | 150 mm |
| Overall Width | 91 mm |
| Material Thickness | 1.6 mm (0.063 in) |
| Primary Seal Material | HNBR |
| Seal Shape | Irregular |
| Material Description | HNBR rubber has a service temperature range of -40 to 115C and is resistant to fuel, oil and lubricants, while providing excellent abrasion and cut resistance. |
Compatible Equipment
- Motor Graders: 120, 140H, 12K, 120H, 140 GC, 12H, 140K, 16H, 160K
- Excavators: 120 GC
