Description
Shims create a gap between two components. They are also used to provide a positioning aid between components. The size and shape of shims may vary depending on their intended use, but they are typically manufactured to very tight tolerances to ensure precise spacing between components.
Attributes
- Withstands frequent use and mechanical stress without breaking or deforming.
- Helps reduce vibration, improving machine efficiency and reducing wear.
Applications

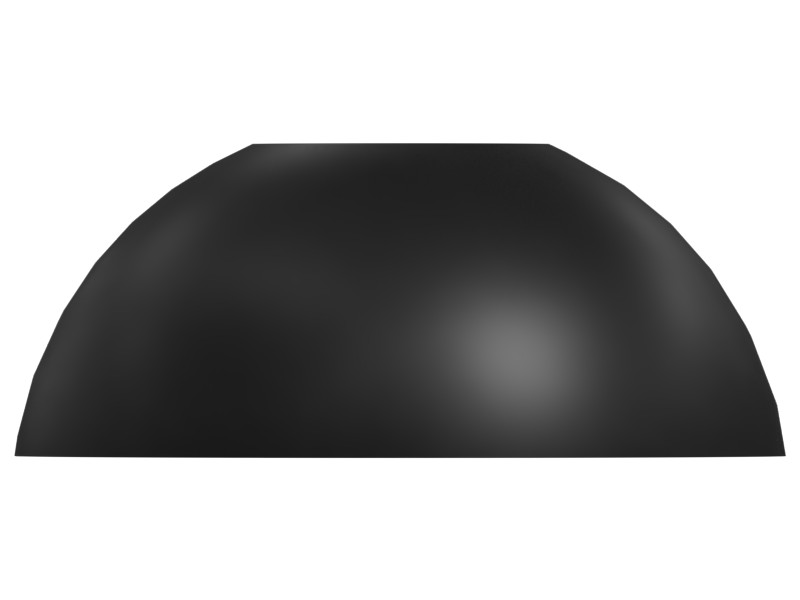

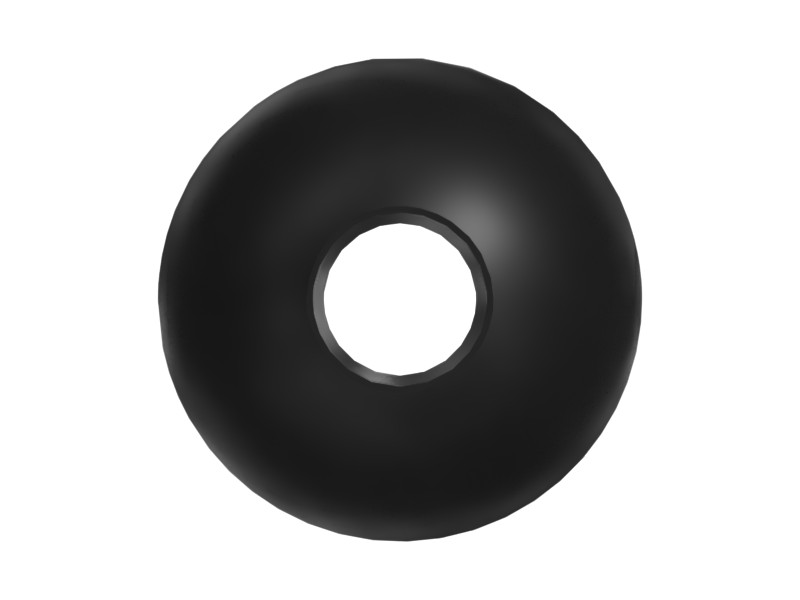

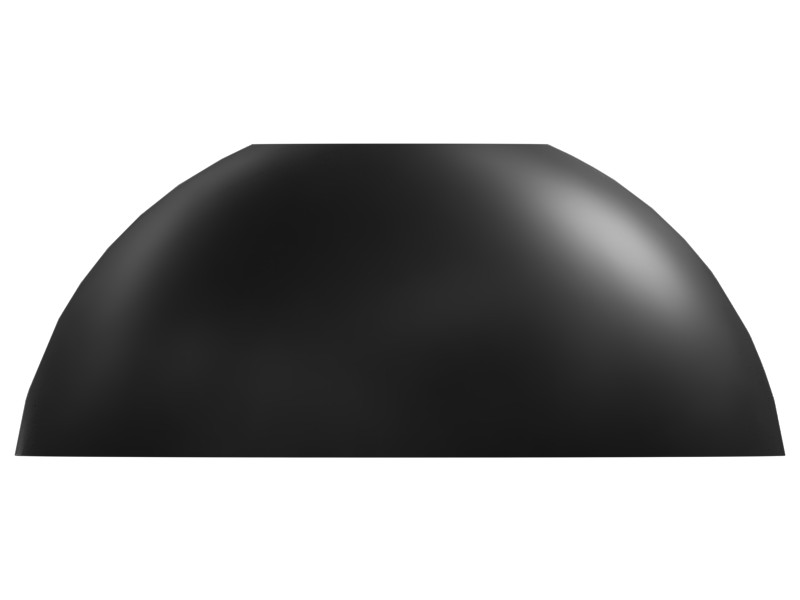

Spherical shims are used in directional signal lamps to increase the distance between fasteners, for a variety of Cat equipment and machines.
Specifications
| Diameter | 34.7 mm (1.37 in) |
|---|---|
| Height | 14 mm (0.55 in) |
| Inside Diameter | 11 mm (0.43 in) |
| Outside Diameter | 34.7 mm (1.37 in) |
| Thickness | 14 mm (0.55 in) |
| Weight | 0.02 kg (0.04 lb) |
Compatible Equipment
- Motor Graders: 140 GC, 12K, 140H, 12H, 120, 120H, 140K, 16H, 160K
- Track Loaders: 982, 972
- Wheel Excavators: IT14G
- Compactors: CS12, CW-34, CS-563E, CS78B, CS68B, CW-16, CS12 GC, CS56B, CS74B, CS11, CP56B, CP54B, CS54B, CS79B, CS-54B, CS-533E, CS64B
- Excavators: 120 GC, 657G
- Wheel Loaders: 972M, 966M, 982M, 986K, 980M, 966 GC
- Asphalt Pavers: AP655F, AP-600D, AP655F L
- Skid Steer Loaders: 239D3, 249D3, 226B, 236, 216B3, 226B3, 236B3, 259D3, 226D3
Additional information
| Machine Model | 120, 120 GC, 120H, 12H, 12K, 140 GC, 140H, 140K, 160K, 16H, 216B3, 226B, 226B3, 226D3, 236, 236B3, 239D3, 249D3, 259D3, 657G, 966 GC, 966M, 972, 972M, 980M, 982, 982M, 986K, AP-600D, AP655F, AP655F L, CP54B, CP56B, CS-533E, CS-54B, CS-563E, CS11, CS12, CS12 GC, CS54B, CS56B, CS64B, CS68B, CS74B, CS78B, CS79B, CW-16, CW-34, IT14G |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Motor Graders, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
