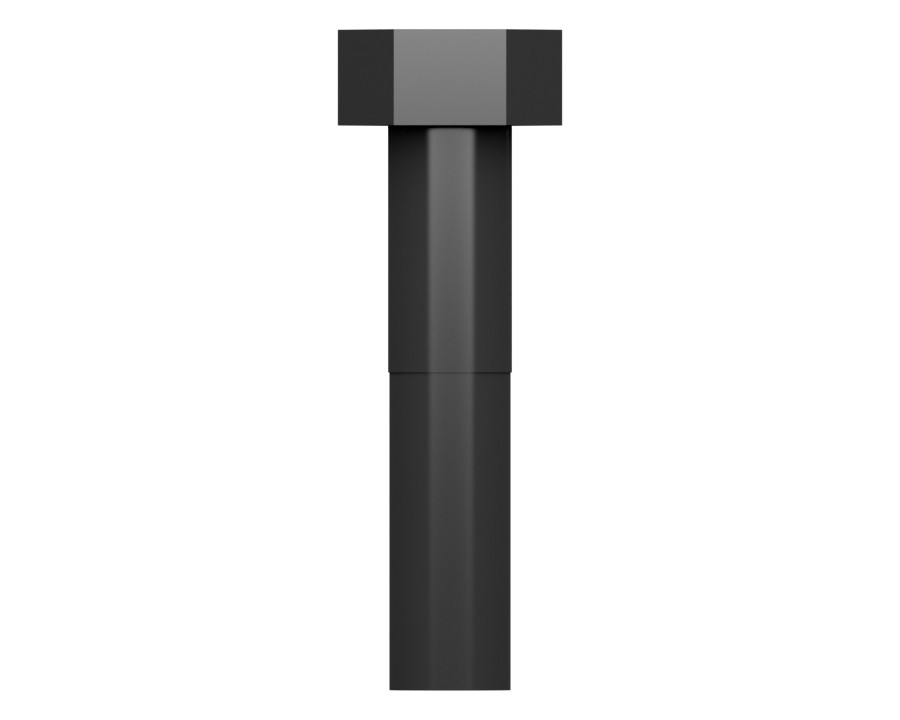

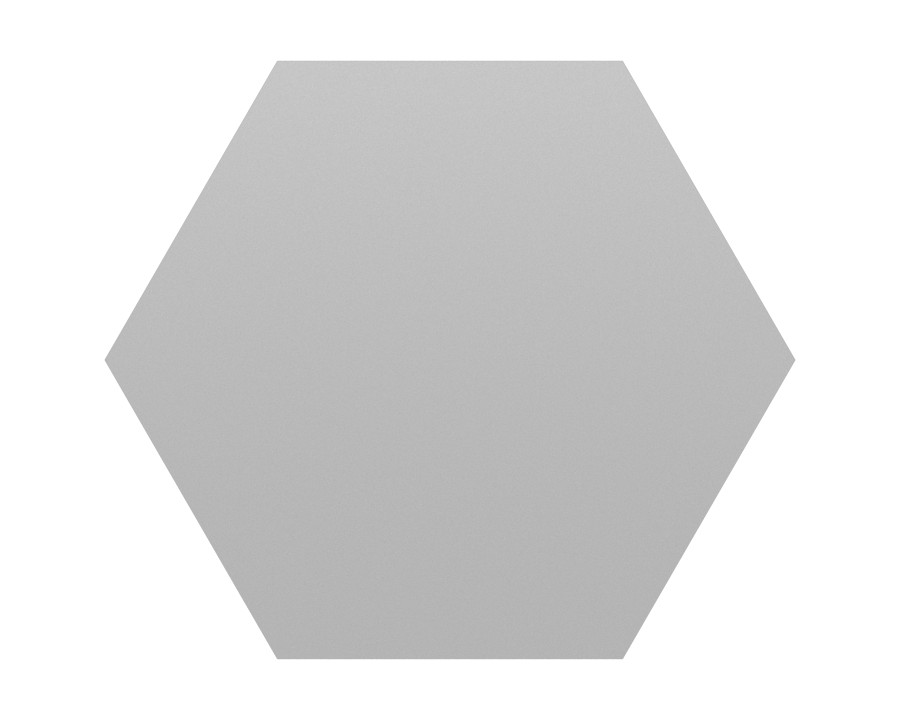

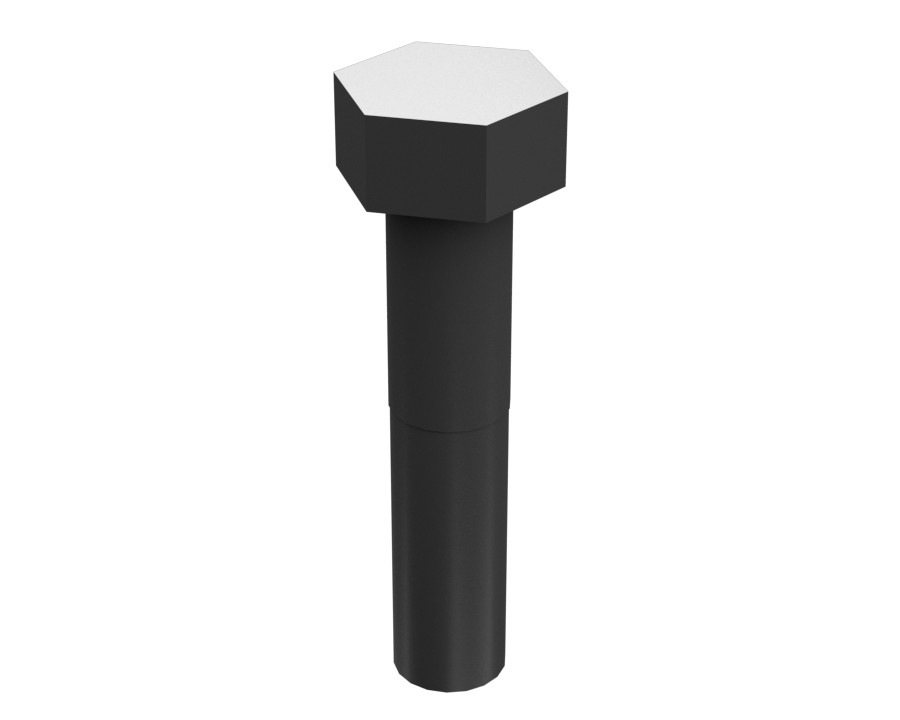

0T-0489 7/16-20 Hex Head Bolt
Cat® hex head bolt is a fastener with a hexagonal top that provides a secure, reliable connection when properly tightened.
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Direction | RH |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 7/16×20 mm |
| Thread Size | 0.4375 mm (0.017 in) |
| Bolt Length | 50.8 mm (2 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 22.22 mm (0.87 in) |
Compatible Equipment
- Track Loaders: 994K, 826K, 990K, 963K, 953K, 973K, 963D, 953D, 992, 995
- Cold Planers: PL61, PL83, PL72, PL87
- Compactors: CP54B, CS54B, 824K, 834K, 825K, CS11, CS64B, CS-54B
- Excavators: 320D2, 349D, 349D2, 349D2 L, 336D, 326D2, 320D, 326D2 L, 329D2, 303.5E2 CR, 336D2, 329D2 L, 329D, 305E2 CR, 313D2, 637E, 349D L, 340D2 L, 340D L, 621H, 320D L, 320D2 L, 336D L, 320D2 GC, 313D2 GC, 329D L, 330D2 L, 318D2 L, 313D2-GC, 312D, 320D GC, 323D L, 312D2 GC, 324D L, 336D2 L, 315D L, 312D2 L, 323D2 L, 336D2 GC, 320D FM, 336D2 XE, 312D2, 330D2, 326D L, 318D L, 324D, 313D, 3508B
- Asphalt Pavers: AD30, AD45, AD63
- Skid Steer Loaders: 24, 313D2 LGP
- Motor Graders: 14, 16, 18, 16M3
- Wheel Excavators: MD6250, MD6310
- Dozers: D8T, D11T, D10T2, D11R, D6T LGP, D7E, D6K2, D9R, D5K XL, D5K2 XL, D6N, D7R, D3K2 LGP, D9T, D6T, D6R, D8R, D6R LGP, D7R II, D6R XL, D5K LGP, D1, D4, D8, D10R, D6R II
- Mini Excavators: 305.5E2, 305E2
- Wheel Loaders: 988K, 926M, 924K, 966H, 910, 966K, 938M, 938K, 950 GC, R2900 XE, R1700K
- Off-Highway Trucks: 796 AC, 798 AC, 777E, 785, 794 AC, 775G, 793F, 777, 789D, 793, 735, 773D, 730, 770G, 740, 771D, 725, 740B, 773E, 745C, 785D, 777D, 772G, 725C2, 773F, 797F, 793D, 789, 773, 745, 740 GC
