Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Size | 0.375 mm (0.015 in) |
|---|---|
| Locking Feature | None |
| Thread Direction | RH |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 3/8×16 mm |
| Bolt Length | 15.88 mm (5/8 in) |

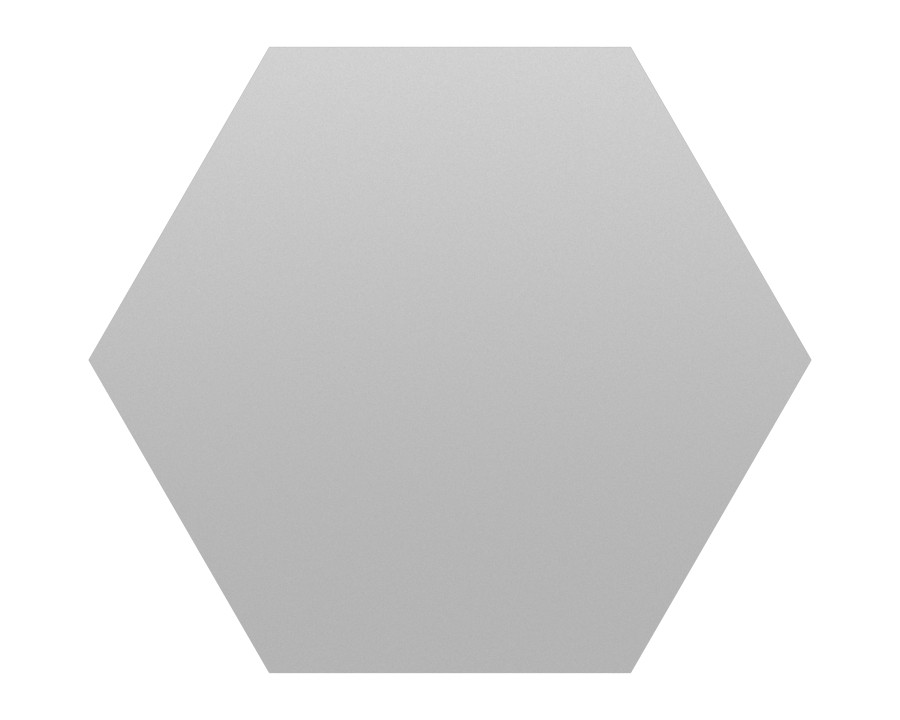

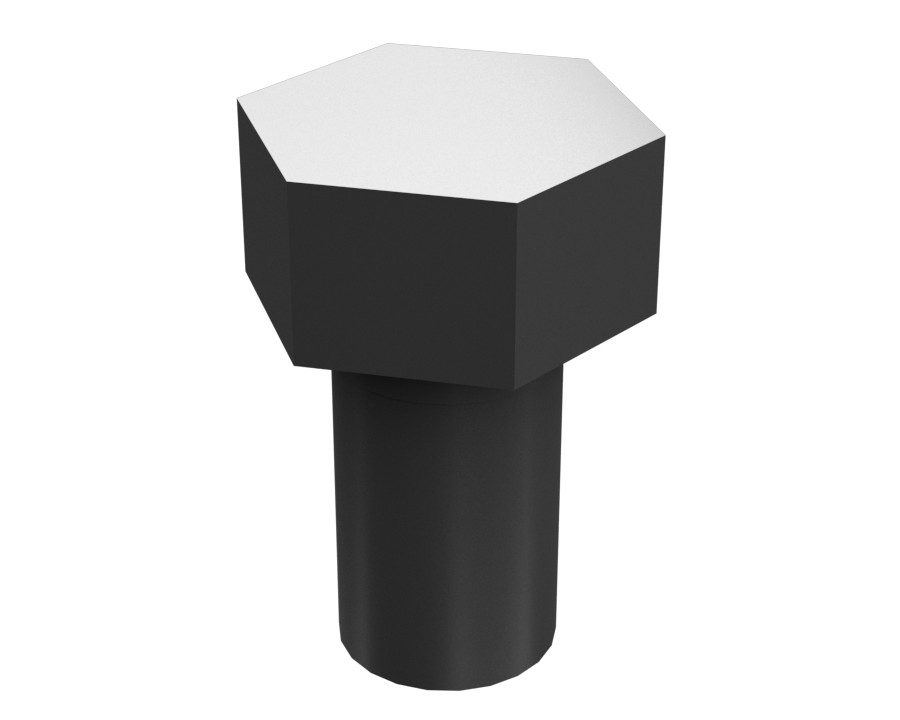

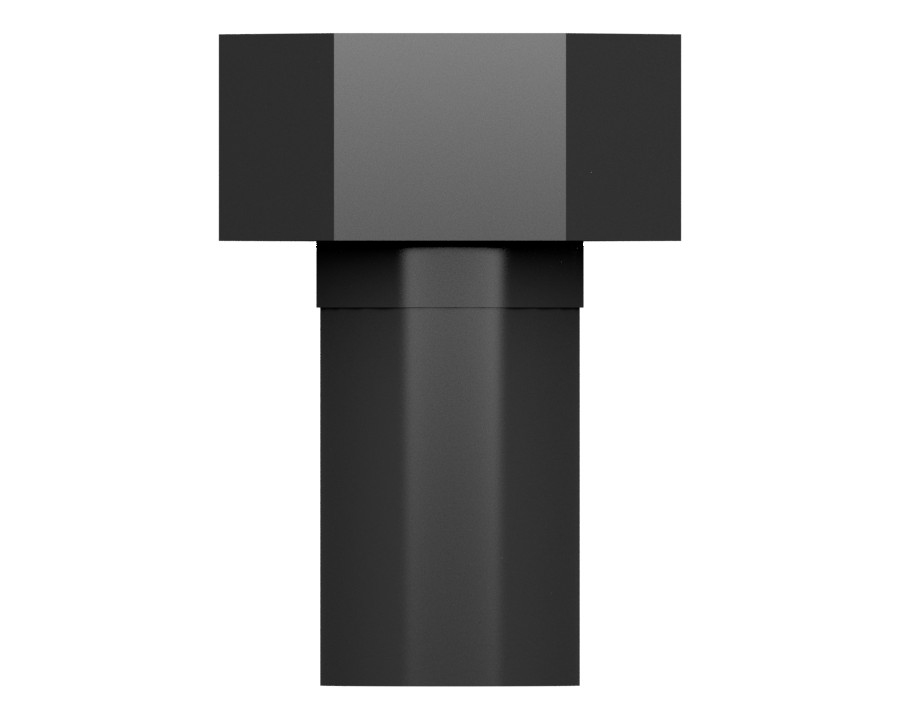

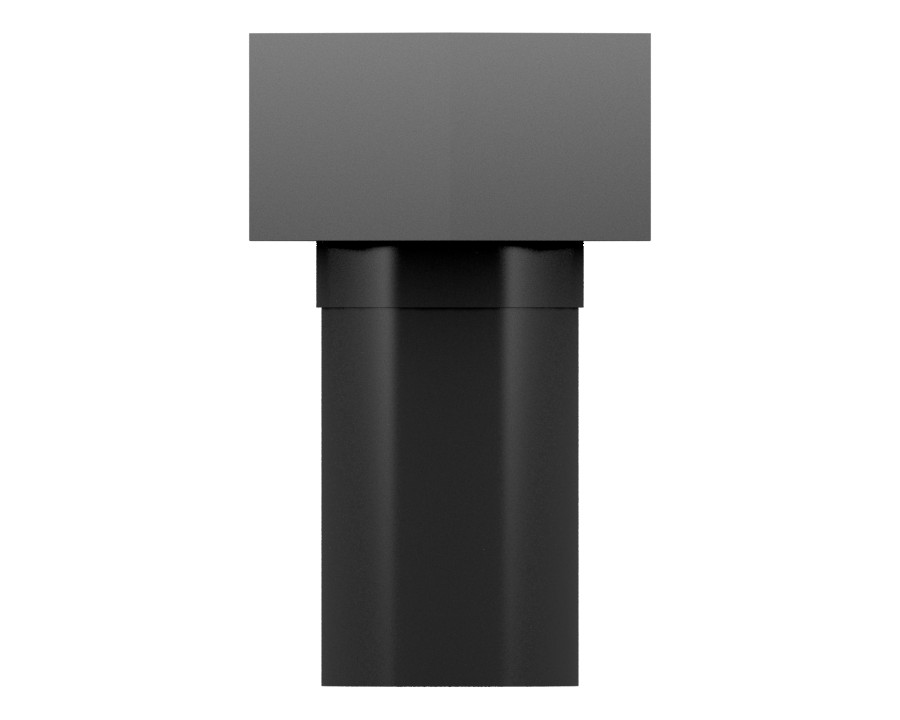

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 2.38125 mm (0.09 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: G3516, G3516C, 3516C, 3512E, 3512B, 3406C, 3406B, C4.4, C7.1
- Track Loaders: 992, 963, 953, 824C, 826K, 824G, 826G, 995, 816F, 994K, 990K, 834H
- Cold Planers: PM622, PL72, PL83, PL87, PM620
- Compactors: 814, 815, 834K, 825K, 816, 824K, C9.3B, C-15
- Engines: C15, C32, C27, C13, C18
- Excavators: 390F L, 374F, 3456, 374, 637E, 3512C, 395, 3516E, 6040, 3516B, 3508B, 385B, 6060, 374F L, 390F, 621G, 637G, 6030, 330 L, 330B, 621H, 350 L, 637K
- Asphalt Pavers: AD30
- Skid Steer Loaders: 3126B
- Motor Graders: 12H, 16, 3606, 140G, 120, 140H, 16H
- Wheel Excavators: MD6200
- Dozers: D5M, D4E, D6R III, D6R, D7H, D7G, D6R II, D8L, D5H, D6T, D7R II, D8R, D5N, D9L, D7G2, D9N, D6N, D8, D11R, D11N, D6G2 LGP, D6G2 XL, D8T, D8N, D6T LGP, D7R, D6M, D6R XL, D9T, D10N, D11T, D6R LGP, D4, D9, D10, D10R, D6G
- Wheel Loaders: 834, 950, 980, 972G, 966F, 988K, 910, 992C, RM500B, R1300G, 988G, 988F, R2900G, 836, RM400, 980G, 988H, R1700G, R3000H, 990H, 986H, 992D
- Off-Highway Trucks: 773, 789D, 773E, 740 GC, 770G, 777, 772G, 785D, 785, 793D, 745C, 740B, 793F, 771D, 789, 773F, 773D, 7495, 793, 740, 777D, 775G, 745, 777E
