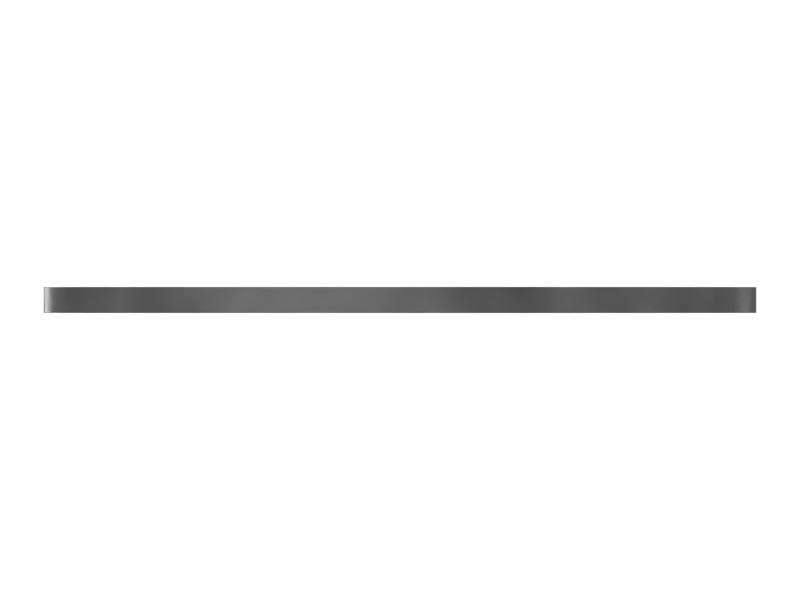

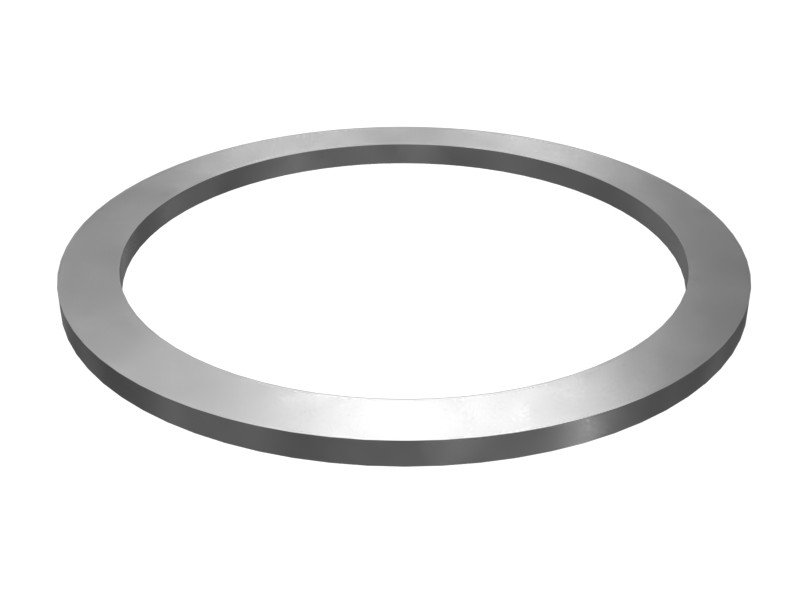

Description
The backup ring is an anti-extrusion ring that prevents elastomeric seals, such as O-rings or piston seals, from being extruded or damaged under high-pressure or dynamic conditions. They provide support for the seal, limiting its radial expansion and maintaining its effectiveness.
Attributes
- Good extrusion resistance and resistance to high-pressure conditions.
- Provides support for the seal and helps distribute the sealing load.
Applications
Backup rings are used in piston motors to provide additional sealing and support for piston seals, and are mainly used in Cat 320, 328D, 330, 330C, 330D, 336, 336D, and 340D OEM applications; 320C, 320D, 321B, 321C, 321D, 325, 325C, 325F, 328D, 330C, 330D, 335F, 336, 336D, 336E, 336F, 340D, 340F, and 345 excavators; 330C and 330D material handlers; D3K and D6K track-type dozers.
Specifications
| Cross-Section Height | 3 mm (0.12 in) |
|---|---|
| Inside Diameter | 29 mm (1.14 in) |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Material Description | PTFE provides excellent performance in air, engine oil, diesel fuel and coolant applications, but is prone to installation damage and debris. Suitable for ultra-high-temperature applications. |
| Cross-Section Width | 1.2 mm (0.05 in) |
| Material | PTFE – Polytetrafluoroethylene |
| Outside Diameter | 35 mm (1.38 in) |
| Overall Thickness | 1.25 mm (0.05 in) |
| Weight | 0.001 kg (0.002 lb) |
Compatible Equipment
- Excavators: 330D L, 336F L, 336D2 L, 336F L XE, 336F LN, 336D L, 325C, 336F, 328D LCR, 336E LH, 336E H, 330C, 330C L, 336E L, 336E LN, 336E, 330D, 336D2 XE, 336D2 GC, 340D L, 340D2 L, 325, 335F LCR, 336D2, 336D
