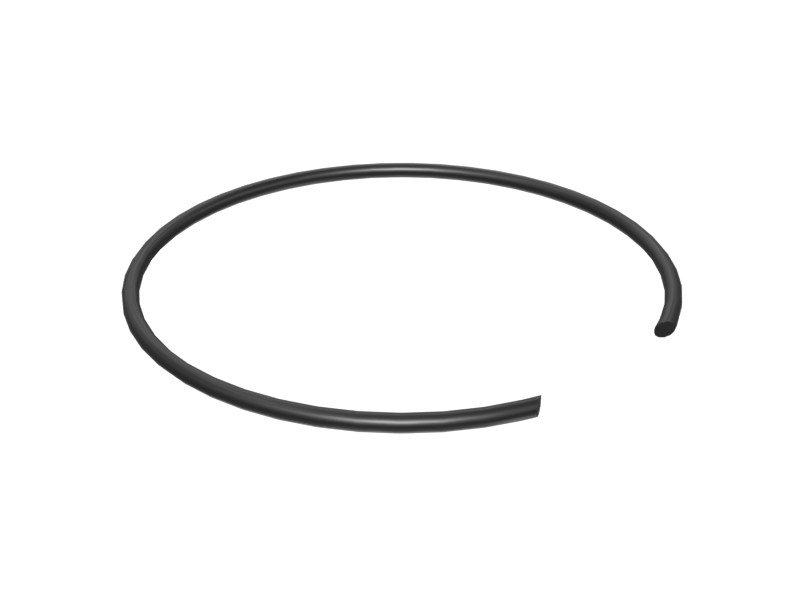

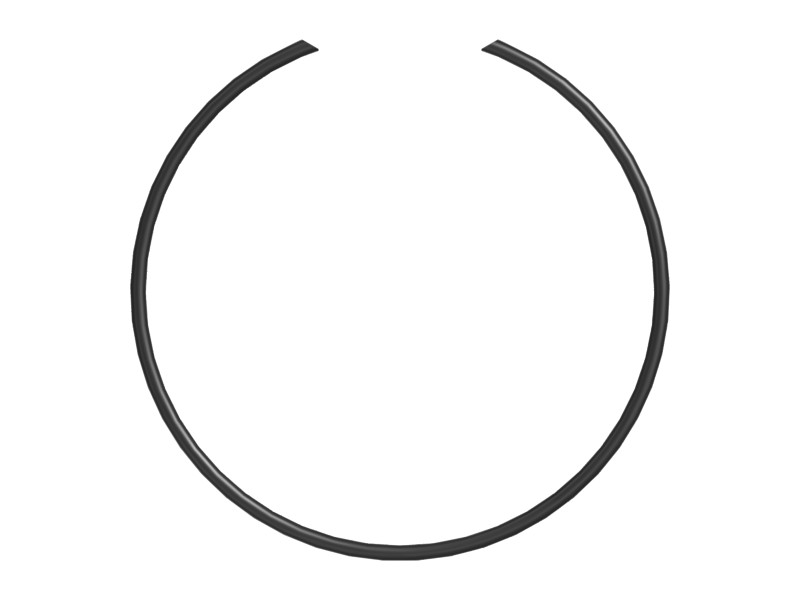

099-5573 Retaining Ring (Snap Ring)
Cat® Internal Retaining Ring (Snap Ring), OD: 109 mm, Steel
Description
The retaining ring (for example 099-5573) is installed in a machined groove in the housing/bore (internal) or on the shaft (external), providing high strength and long service life in a variety of applications.
Cat retaining rings are manufactured to precise specifications for durability, reliability and high efficiency. You can count on this Built For It product to help you get more work done.
Features
- Steel retaining ring (snap ring)
- Type: Internal
- Inside Diameter: 109 mm (4.3 in)
- Outside Diameter: 116 mm (4.6 in)
- Cross-Section Diameter: 4 mm (0.14 in)
- Retaining rings meet or exceed ANSI, ASTM and DIN requirements.
Applications
- Assembles into a shaft or housing groove to secure parts or assemblies.
Specifications
| Snap Ring Type | Inner Shaft |
|---|---|
| Style | Round Section |
| Inside Diameter | 109 mm (4.291 in) |
| Outside Diameter | 116 mm (4.567 in) |
| Cross-Section Diameter | 3.5 mm (0.138 in) |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 323, 333, 320, 330GC, 325D L, 329D L, 329E L, 320D2 GC, 325C, 330D2, 330 GC, 320D2 L, 330D2 L, 320C, 328D LCR, 320D L, 325, 320D FM, 323 GX, 323D2 L, 329E, 320B, 325C L, 335F LCR, 325B L, 325D, 325B, 330C L, 320D2, 330, 320D, 329D2 L, 329D2, 329D
Additional information
| Machine Model | 320, 320B, 320C, 320D, 320D FM, 320D L, 320D2, 320D2 GC, 320D2 L, 323, 323 GX, 323D2 L, 325, 325B, 325B L, 325C, 325C L, 325D, 325D L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330C L, 330D2, 330D2 L, 330GC, 333, 335F LCR, 3512B |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
