Description

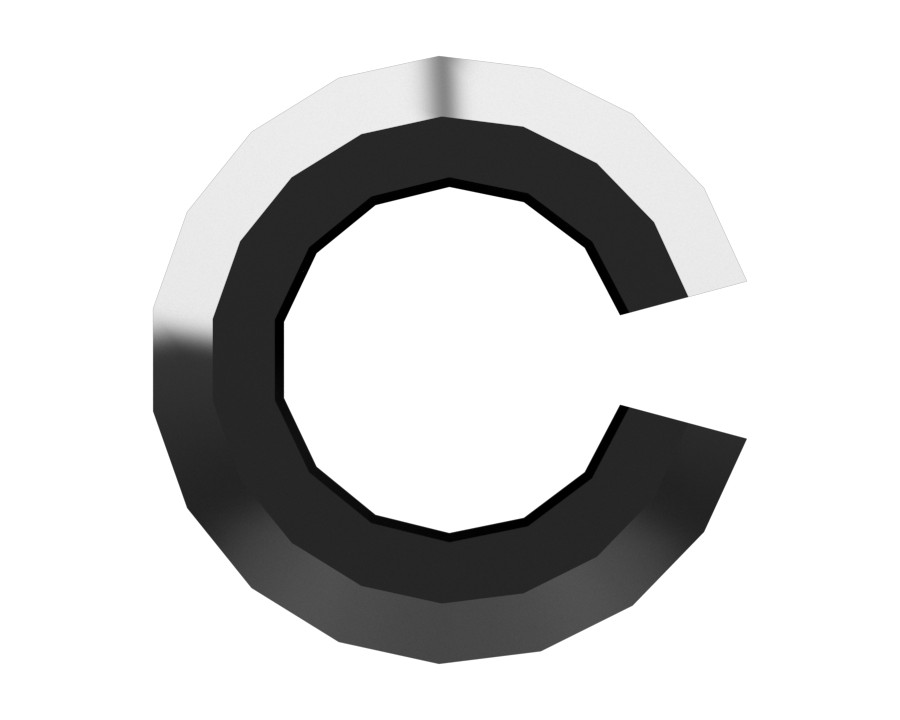

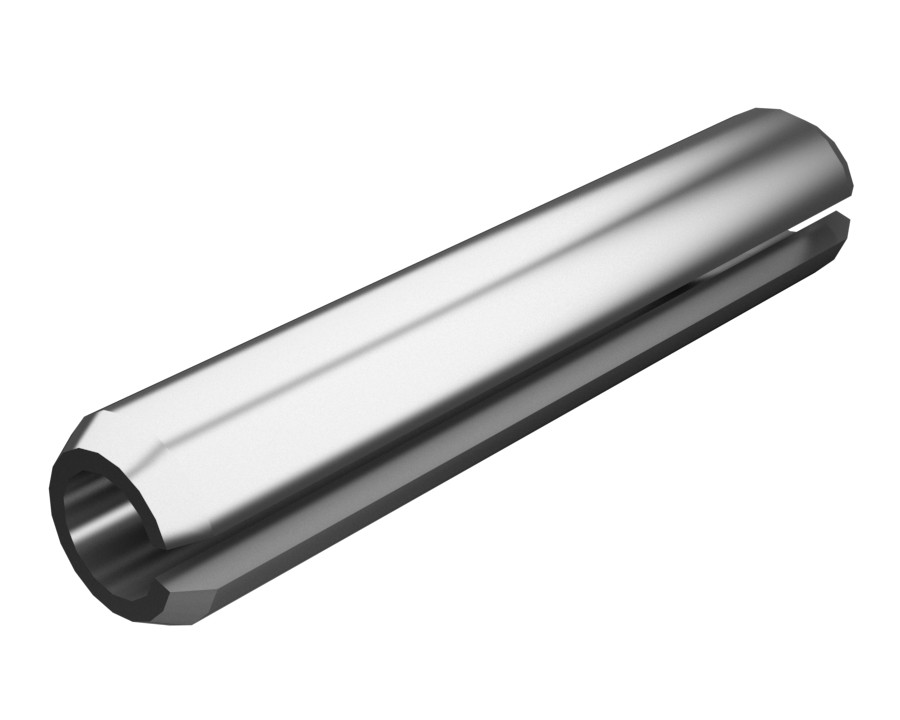

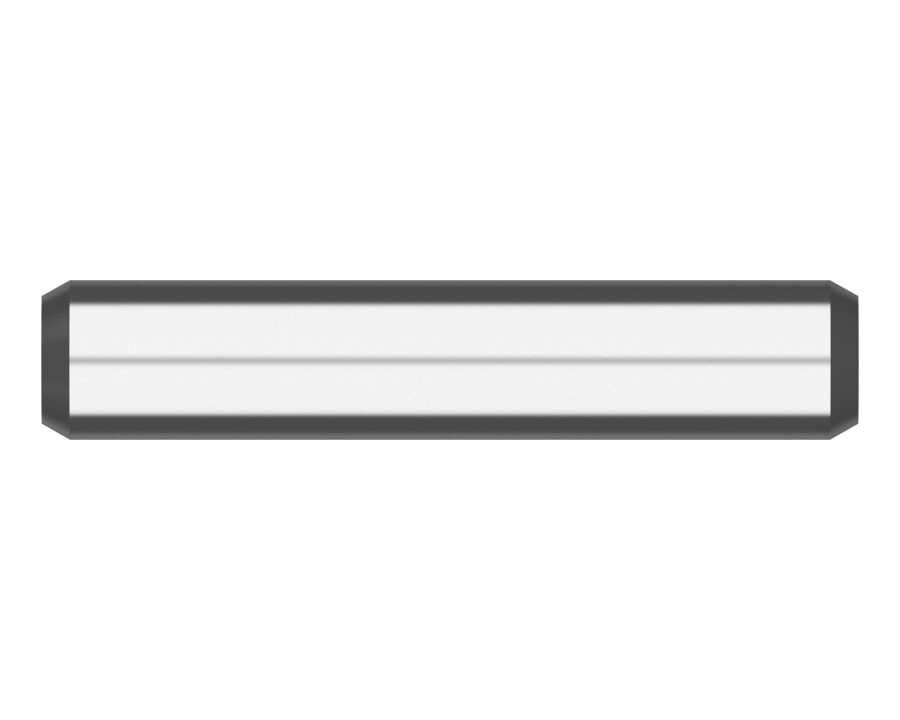

A coil spring pin is made by rolling thin material into a cylindrical shape. This pin is installed into a slightly smaller hole and is held by the spring action of the coiled tube. The coiled tube can move radially after installation and absorbs shock and vibration. This pin is ideal for installation in holes with large tolerances and mismatches.
Cat® fasteners and hardware are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners and hardware are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
- Cat fasteners and hardware are trusted to build, maintain or repair most machines and shop applications worldwide
Specifications
| Remarks | Pin Diameter: 10, Overall Length: 50, Roll Pin End Type 1: Chamfer, Roll Pin End Type 2: Chamfer |
|---|---|
| Material Description | Steel Spring Pin |
| Material | — |
| Pin Type | Spring-Roll |
| Pin Length | 50 mm (1.969 in) |
| Pin Outside Diameter | 10 mm (0.394 in) |
Compatible Equipment
- Compactors: CB-335D, CB-334D
- Excavators: 374, 330D L, 395, 3101, 336E L, 336D2 L, 330C L, 336F L, 336D L, 336F LN, 336E, 336F, 336E H, 330C, 336F L XE, 330D, 336E LH, 330B, 336D2 GC, 336D2 XE, 336E LN, 365C, 374F L, 385C, 385C L, 340D2 L, 345C L, 385C FS, 365B, 390F, 365C L, 365B L, 385B, 345C, 390D, 340D L, 336D2, 336D, 390F L, 374D L, 390D L, 374F
Additional information
| Machine Model | 3101, 330B, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340D L, 340D2 L, 345C, 345C L, 365B, 365B L, 365C, 365C L, 374, 374D L, 374F, 374F L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395, CB-334D, CB-335D |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
