Description
Backup rings can prevent seal extrusion in high-pressure applications and can also be used to protect the life of the overall sealing system under sudden pressure changes.
Features
Cat® backup rings are designed around the characteristics of the elastomeric seal and mating components and contribute greatly to the life and performance of sealing systems in high-pressure applications.
Backup ring dimensions strictly adhere to tight tolerances, ensuring they properly bridge the seal groove and the mating surfaces. Materials are selected based on their pressure resistance and wear resistance.

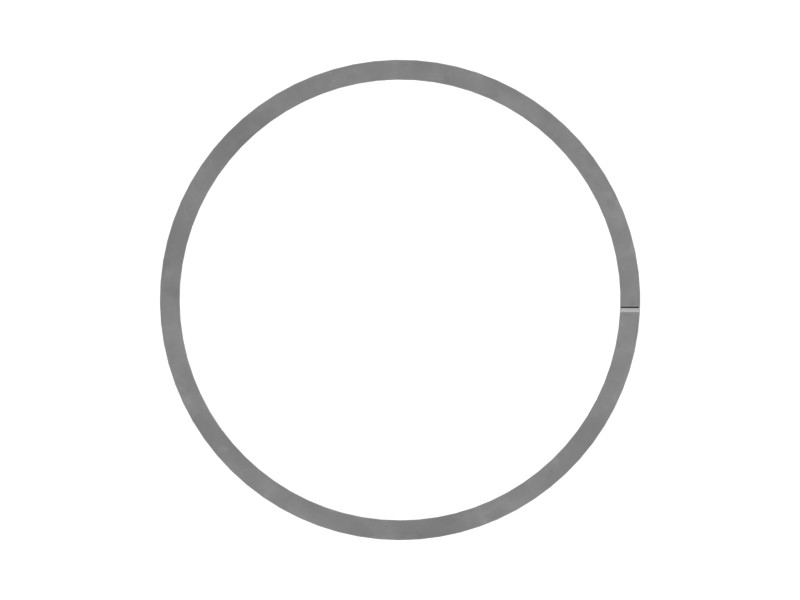

Backup rings can be closed rings or split rings. Split rings are used to ensure ease of installation.
Cat sealing systems prevent leaks and contamination of more expensive parts. Protect your investment with Genuine Cat seals.
Applications
Backup rings are used in high-pressure static and dynamic sealing applications, for example, hydraulic pumps, valves, and engine systems.
Specifications
| Material Description | Nylon plastic offers good resistance to fuel, oil and lubricants. Many different formulations are available, some of which can support high mechanical loads and provide excellent performance at high temperatures. |
|---|---|
| Inside Diameter | 110.2 mm (4.34 in) |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Cross-Section Width | 1.9 mm (0.07 in) |
| Cross-Section Height | 4.8 mm (0.19 in) |
| Material | Nylon Plastic |
Compatible Equipment
- Track Loaders: 992
- Mini Excavators: 307C, 307B, 307D
- Excavators: 330D L, 311D LRR, 312D, 312D L, 312E L, 315D L, 315C, 314C, 312C, 336D L, 312C L, 311C, 313D, 313D2, 312E, 314D LCR, 311B, 315F LCR, 314D CR, 330C, 345C, 308D
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 307B, 307C, 307D, 308D, 311B, 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 315C, 315D L, 315F LCR, 330C, 330D L, 336D L, 345C, 992 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Track Loaders, Skid Steer Loaders |
| Part Source | Genuine OEM |
