Description

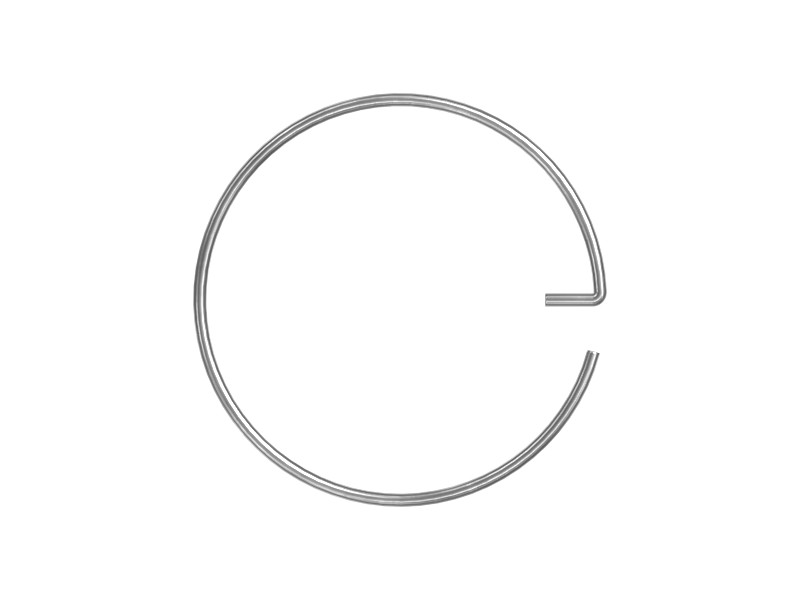

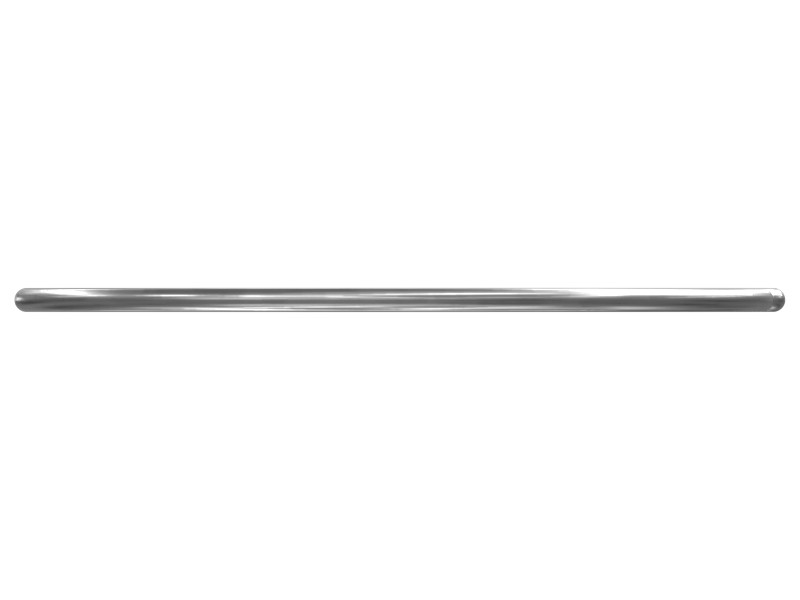

Cat retaining rings install in machined grooves in housings/bores (internal) or on shafts (external), providing high strength and long service life in a variety of applications. Cat retaining rings are manufactured to precise specifications for durability, reliability and high efficiency. You can count on this Built For It product line to get more work done.
Features
- Retaining rings meet or even exceed ANSI, ASTM and DIN requirements.
Applications
Assembled into a groove in a shaft or housing to secure a component or assembly.
Specifications
| Snap Ring Type | Internal |
|---|---|
| Style | Round Section |
| Coating | Not Specified |
| Inside Diameter | 116 mm (4.567 in) |
| Outside Diameter | Not Specified mm (Not Specified in) |
| Cross-Section Diameter | 3.76 mm (0.148 in) |
| Thickness | Not Specified mm (Not Specified in) |
Compatible Equipment
- Mini Excavators: 307B, 307, 307C
- Excavators: 313F L, 311B, 312D, 320D L, 325D L, 312F, 320C, 315F LCR, 311C, 329D L, 314D LCR, 314D CR, 313D, 325B L, 325C, 324D L, 312D L, 320D2 L, 312C, 330C L, 329E L, 325C L, 311D LRR, 312E, 323D L, 314C, 312E L, 312C L, 330C, 324D, 320B, 325D, 329E, 320D2, 320D, 308D
Additional information
| Machine Model | 307, 307B, 307C, 308D, 311B, 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312E, 312E L, 312F, 313D, 313F L, 314C, 314D CR, 314D LCR, 315F LCR, 320B, 320C, 320D, 320D L, 320D2, 320D2 L, 323D L, 324D, 324D L, 325B L, 325C, 325C L, 325D, 325D L, 329D L, 329E, 329E L, 330C, 330C L |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
