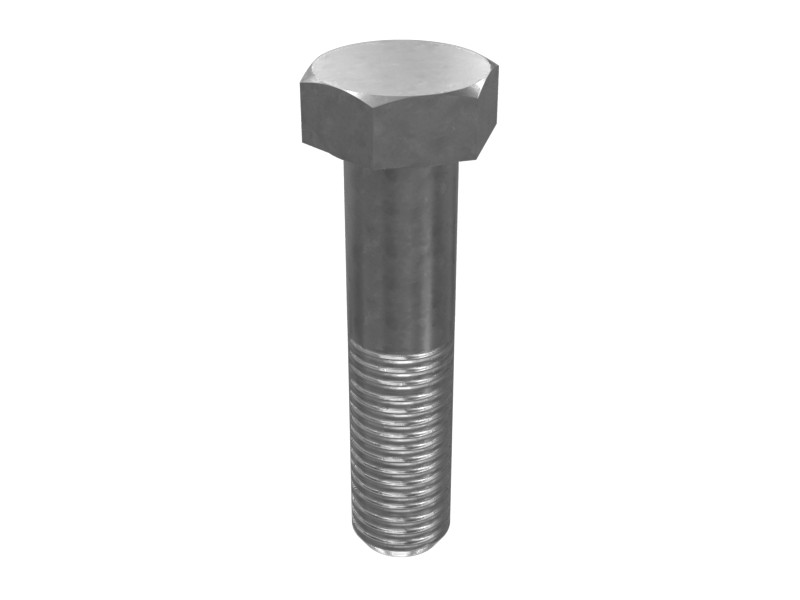

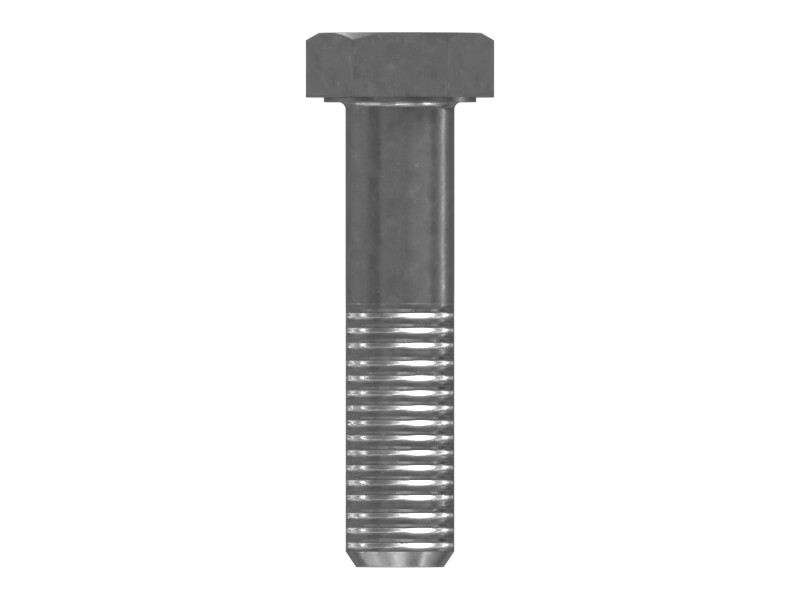

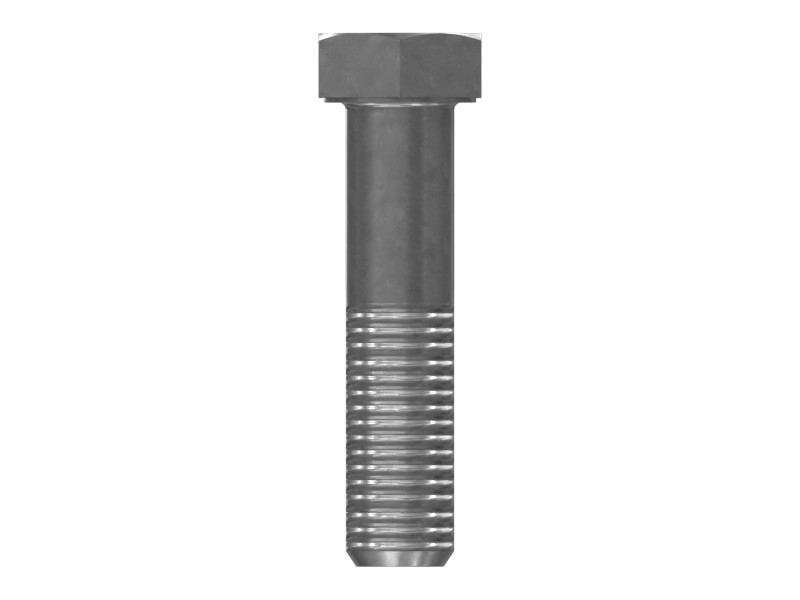

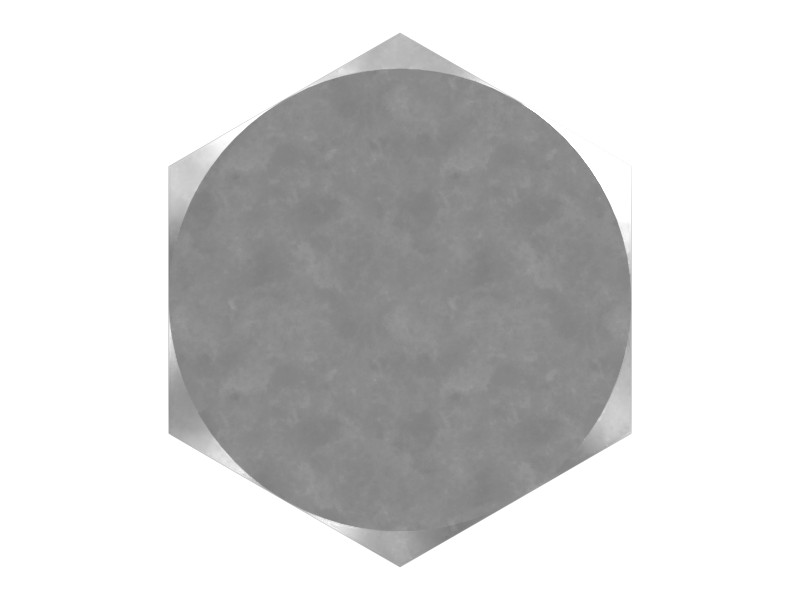

096-9259 M14 X 2 Hex Head Bolt
Cat® hex head bolt for engine mounting, distributes engine weight evenly for stable mounting.
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Direction | RH |
| Thread Size | M14 mm (0 in) |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M14X2 mm |
| Bolt Length | 60 mm (2.362 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 26 mm (1.024 in) |
Compatible Equipment
- Motor Graders: 16M, 14M
- Wheel Excavators: M320, M315
- Engines: C18
- Mini Excavators: 303.5, 301.5
- Excavators: 329D L, 324D L, 325D L, 325C, 301.8, 320B, 328D LCR, 325D, 301.6, 324D, 325C L, 326D L, M325D L MH, 329D
