Description

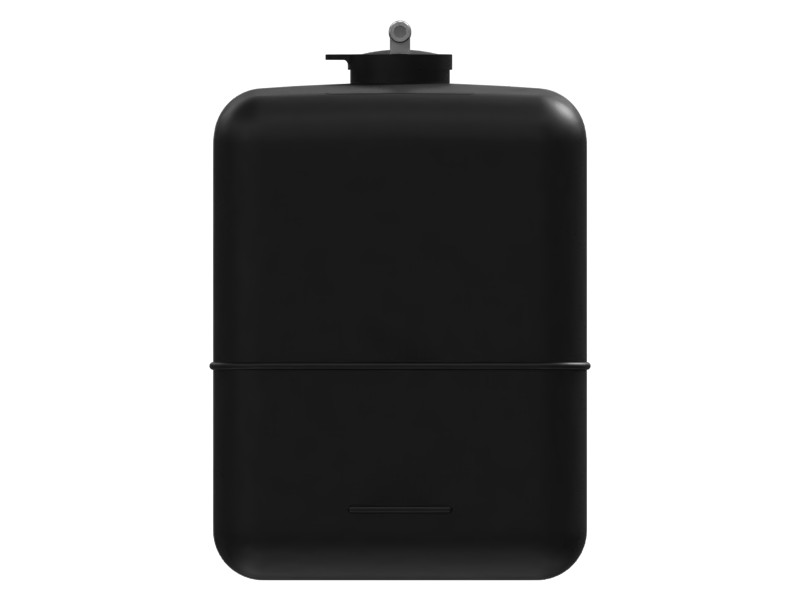

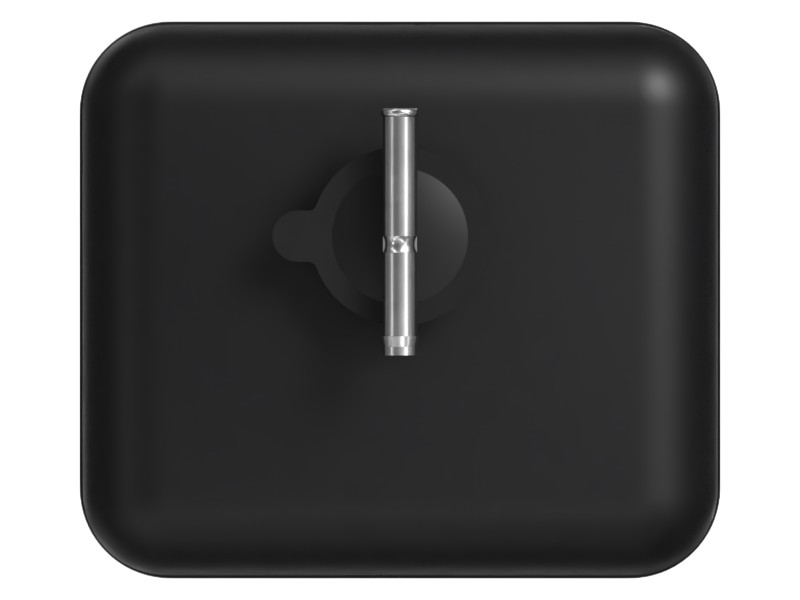

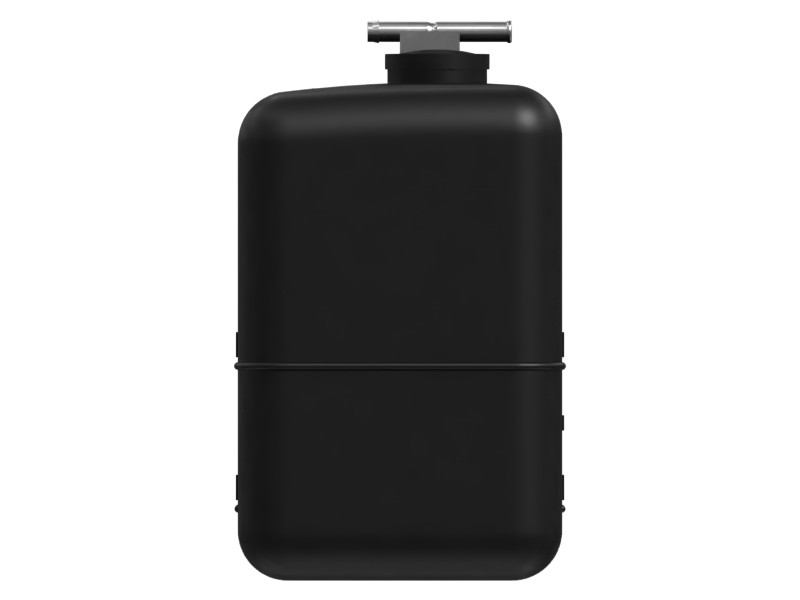

The coolant recovery tank, also known as an overflow tank or expansion tank, is an essential component of a vehicle's radiator system. The tank is connected to the radiator by a hose or pipe, allowing coolant to flow between the two. When the engine is running and the coolant temperature rises, the excess coolant expands. Instead of being released into the environment or causing pressure to build up in the cooling system, the expanded coolant flows into the coolant recovery tank.
Features
- Can withstand a minimum pressure of 50 kPa.
- Translucent design for easy visual inspection of the coolant level.
Applications
The coolant recovery tank serves as a reservoir for coolant or antifreeze and plays a major role in maintaining the proper coolant level and pressure in the radiator.
Specifications
| Capacity | 3.4 L |
|---|---|
| Inside Diameter | 2.36 in |
| Outside Diameter | 9.45 in |
| Overall Height | 225 mm (8.85 in) |
| Overall Length | 150 mm (5.90 in) |
| Overall Width | 130 mm (5.11 in) |
| Thickness | 0.2 in |
| Weight | 0.33 kg |
Compatible Equipment
- Motor Graders: 140G
- Mini Excavators: 307B, 307C
- Excavators: 312D2, 320D2 L, 320D2 GC, 311C, 330D2, 318D2 L, 313D2-GC, 313D2, 313D2 GC, 312D2 L, 314C, 320D3 GC, 320D3, 330D2 L, 312D2 GC, 318D2, 320D2, 326D2, 329D2, 329D2 L, 326D2 L
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 140G, 307B, 307C, 311C, 312D2, 312D2 GC, 312D2 L, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 314C, 318D2, 318D2 L, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 326D2, 326D2 L, 329D2, 329D2 L, 330D2, 330D2 L |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Skid Steer Loaders, Motor Graders |
| Part Source | Genuine OEM |
