Description

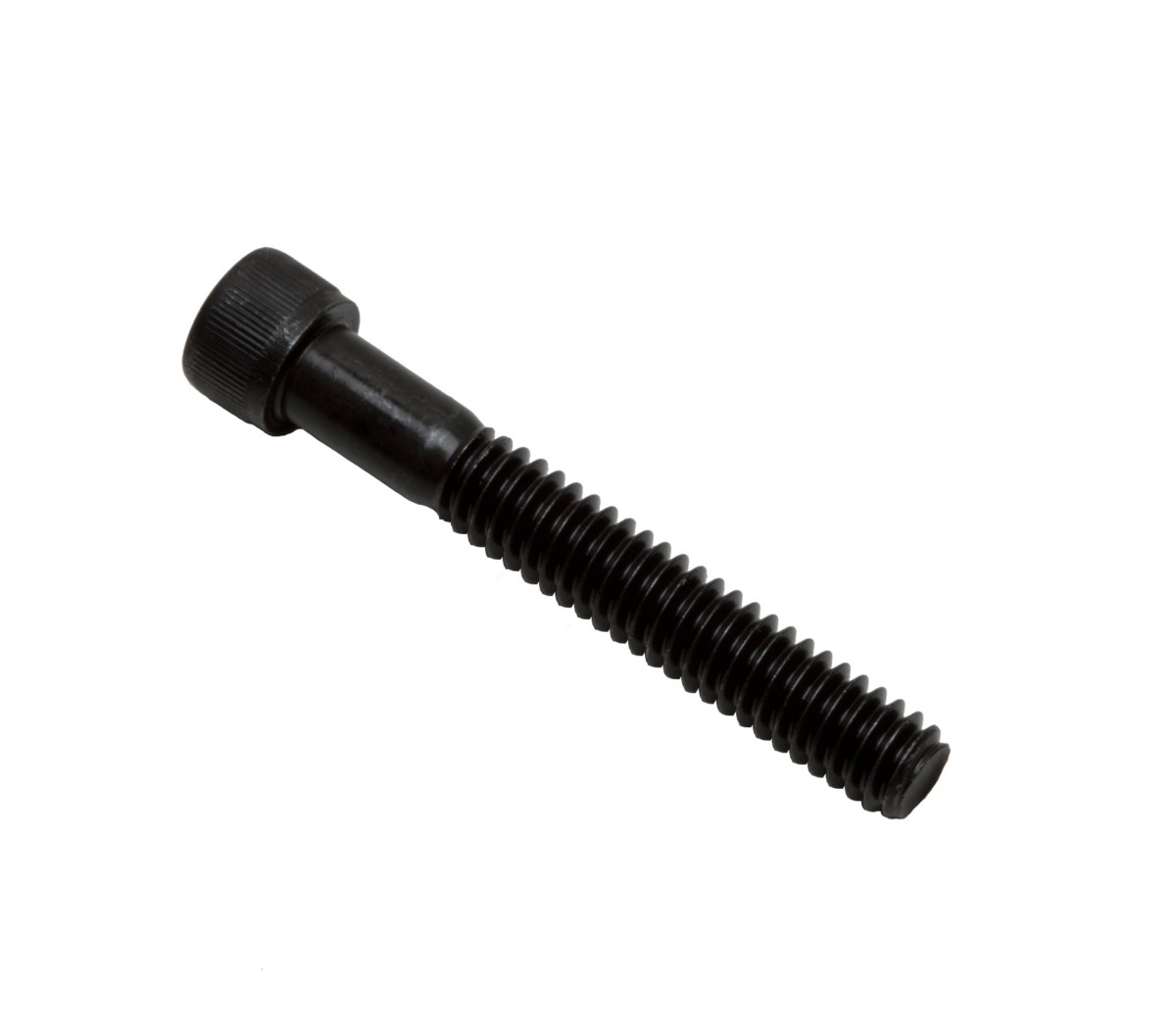

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Size (Diameter × Pitch) | M5 × 0.80 mm |
|---|---|
| Bolt Type | Socket Head |
| Material | Alloy Steel |
| Locking Feature | None |
| Thread Direction | RH |
| Bolt Length | 20 mm (0.787 in) |
| Handle Length | 1.6 mm (0.063 in) |
| Class or Grade | ISO 898-1 Class 12.9 |
| Thread Size | M5 mm (0 in) |
| Coating | None |
Compatible Equipment
- Generator Sets: 3512B, 3516C, G3516, C9, C4.4, C7.1
- Track Loaders: 992, 995, 990K, 953D, 994K, 993
- Cold Planers: SE50 VT, TH417D
- Compactors: CS11, CB-434D, CP12 GC, CP11 GC, CS12 GC, CS12, CB-564D, CB-534D, CP54B, CS54B, CS7, C-9, CS64B, CS-54B
- Engines: C7, C32, C27
- Excavators: 374D L, 390D L, 305, 308E, 303C CR, 305C CR, 305E2 CR, 385C L, 3516B, 3512C, 3508B, 385C, 365C, 6040, 320 GX, 320, 6030, 320 GC, 428F, 301.8, 301.6, 323, 365C L, 434F2, 385C FS, 432, 3516E, 390D, 336F L
- Asphalt Pavers: AP300F, AP655F
- Motor Graders: 3606
- Wheel Excavators: IT14G, MD6250, MD6310, MD6200
- Dozers: D11T, D11, D10, D10T2
- Mini Excavators: 306, 308, 303.5E, 301.5, 303.5D, 305.5E, 305.5, 303.5, 303.5C, 310
- Wheel Loaders: 950L, R1700 XE, 980H, 972L, 966K, 962L, 966L, 950 GC, 980L, 988K, R2900 XE, R1700K
- Off-Highway Trucks: 773, 777, 785, 772G, 775G, 785D, 789, 770G, 740, 725, 735, 730, 777D, 793, 793D
Additional information
| Machine Model | 301.5, 301.6, 301.8, 303.5, 303.5C, 303.5D, 303.5E, 303C CR, 305, 305.5, 305.5E, 305C CR, 305E2 CR, 306, 308, 308E, 310, 320, 320 GC, 320 GX, 323, 336F L, 3508B, 3512B, 3512C, 3516B, 3516C, 3516E, 3606, 365C, 365C L, 374D L, 385C, 385C FS, 385C L, 390D, 390D L, 428F, 432, 434F2, 6030, 6040, 725, 730, 735, 740, 770G, 772G, 773, 775G, 777, 777D, 785, 785D, 789, 793, 793D, 950 GC, 950L, 953D, 962L, 966K, 966L, 972L, 980H, 980L, 988K, 990K, 992, 993, 994K, 995, AP300F, AP655F, C-9, C27, C32, C4.4, C7, C7.1, C9, CB-434D, CB-534D, CB-564D, CP11 GC, CP12 GC, CP54B, CS-54B, CS11, CS12, CS12 GC, CS54B, CS64B, CS7, D10, D10T2, D11, D11T, G3516, IT14G, MD6200, MD6250, MD6310, R1700 XE, R1700K, R2900 XE, SE50 VT, TH417D |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
