Description

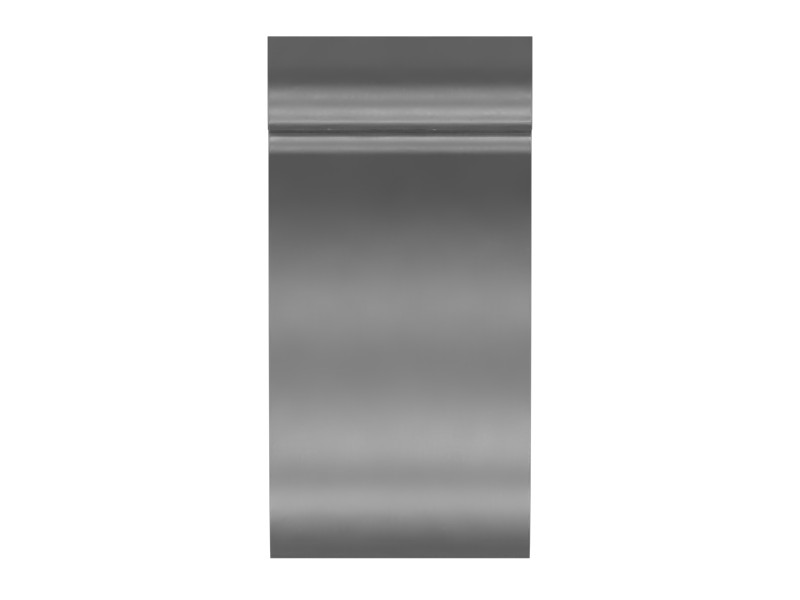

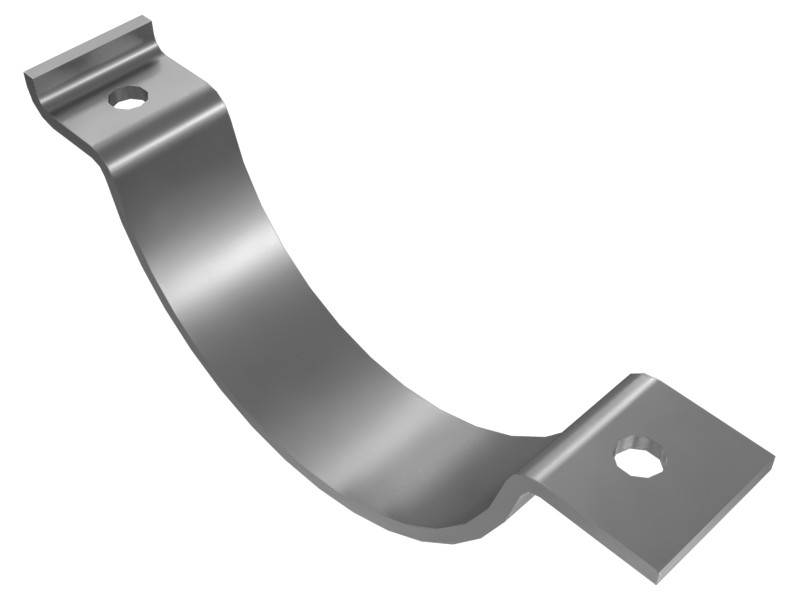

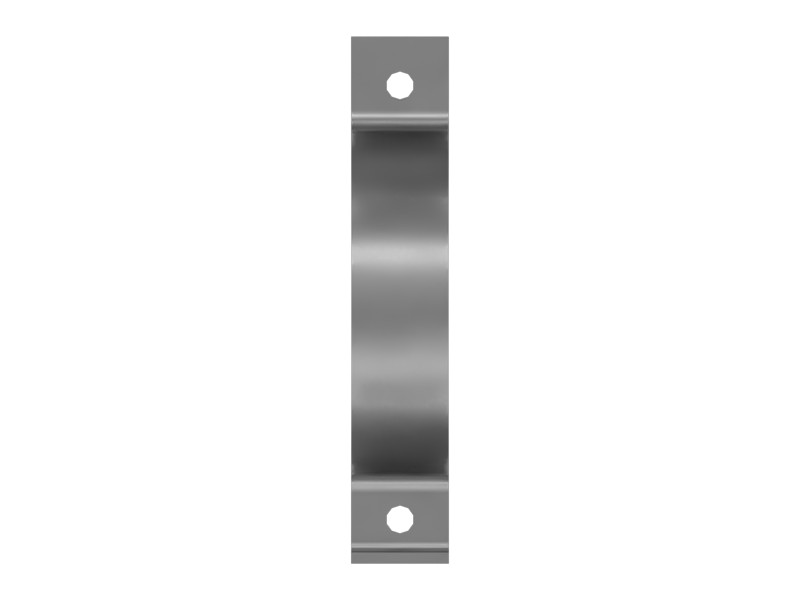

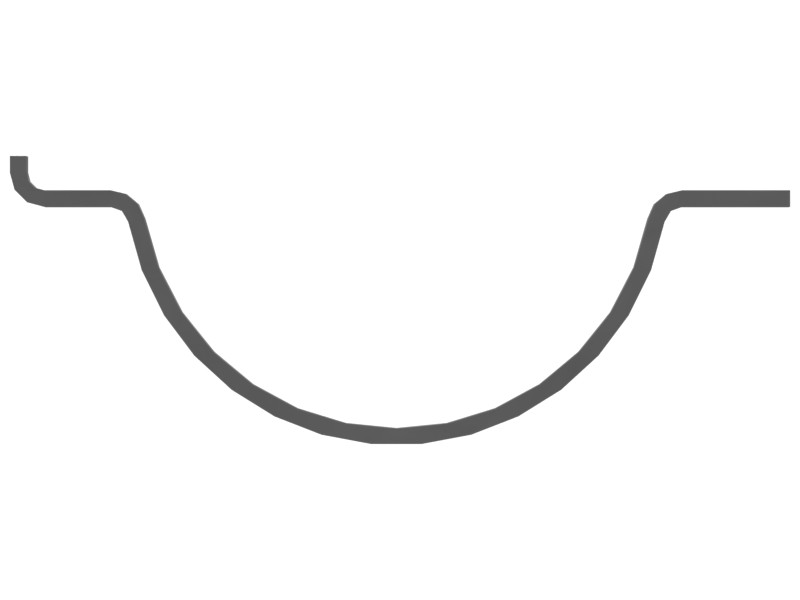

The cylinder line bracket is a metal bracket or clamp designed to mount on the outer surface of the cylinder barrel to secure hydraulic hoses or lines. It helps protect hydraulic lines from damage caused by excessive movement or vibration. It also helps maintain proper alignment of the hydraulic hoses or lines, which is essential for efficient and reliable operation of the bucket cylinder.
Attributes
- Comes with 2 mounting holes for use with M10 fasteners.
- Manufactured to exact specifications for rugged durability, reliable performance and high efficiency.
Applications
The cylinder line bracket is used to hold and support the hydraulic lines to and from the bucket cylinder.
Specifications
| Material | Steel |
|---|---|
| Color | Not Specified |
| Inside Diameter | 71 mm (2.80 in) |
| Length | 216 mm (8.50 in) |
| Width | 40 mm (1.57 in) |
| Height | 85 mm (3.35 in) |
| Material Thickness | 5 mm (0.18 in) |
| Hole Size | 12 (2X) mm (0.45 (2X) in) |
Compatible Equipment
- Excavators: 330D L, 340, 320C, 323D2 L, 320D L, 323, 324D, 320 GC, 320E, 320D2 L, 320D FM, 320D RR, 320, 323D, 323D L, 320C L, 325C L, 320B, 320D2 GC, 324D L, 320D GC, 325B L, 323D2, 325, 352F, 352, 323 GC, 323GC, 320D, 320D2, 330
