Description
Backup rings can prevent seal extrusion in high-pressure applications and can also be used to protect the life of the overall sealing system under sudden pressure changes.
Features
Cat® backup rings are designed together with the elastomeric seal and mating components and contribute greatly to the life and performance of sealing systems in high-pressure applications.
Backup ring dimensions strictly follow tight tolerances, ensuring they properly bridge the seal groove and the mating surfaces. Materials are selected based on their pressure resistance and wear resistance.

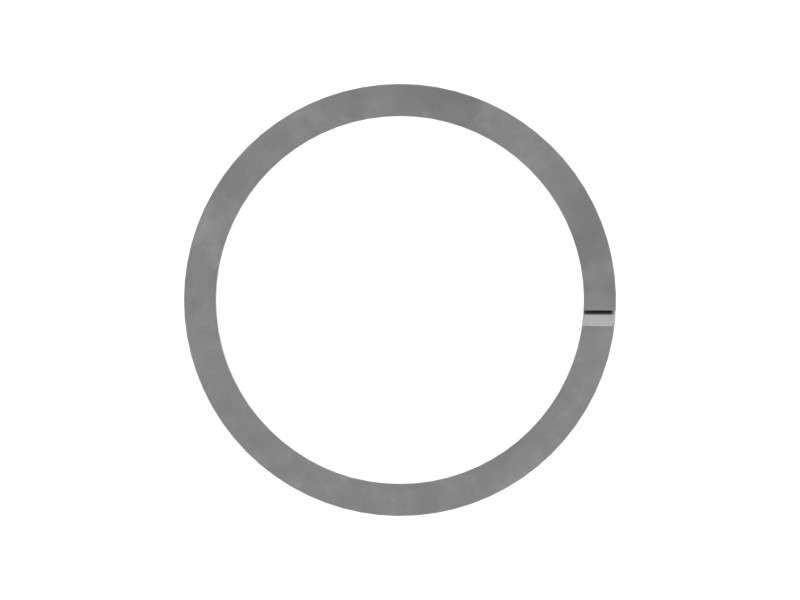

Backup rings are available in two types: closed rings and split rings. Split rings are used to ensure ease of installation.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
Backup rings are used in high-pressure static and dynamic sealing applications, for example, hydraulic pumps, valves, and engine systems.
Specifications
| Cross-Section Height | 6.4 mm (0.25 in) |
|---|---|
| Inside Diameter | 75 mm (2.95 in) |
| Cross-Section Width | 3 mm (0.12 in) |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
Compatible Equipment
- Cold Planers: TH360B
- Wheel Excavators: M317D2, M315D, M313D, M315, M315D2
- Mini Excavators: 307D, 307B, 307, 307C
- Excavators: 637K, 312C L, 314D CR, 312D L, 314C, 312E L, 311B, 311C, 313D, 312D, 312C, 315F LCR, 314D LCR, 312E, 311D LRR, 313D2, 308D
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 307, 307B, 307C, 307D, 308D, 311B, 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 315F LCR, 637K, M313D, M315, M315D, M315D2, M317D2, TH360B |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Skid Steer Loaders, Cold Planers |
| Part Source | Genuine OEM |
