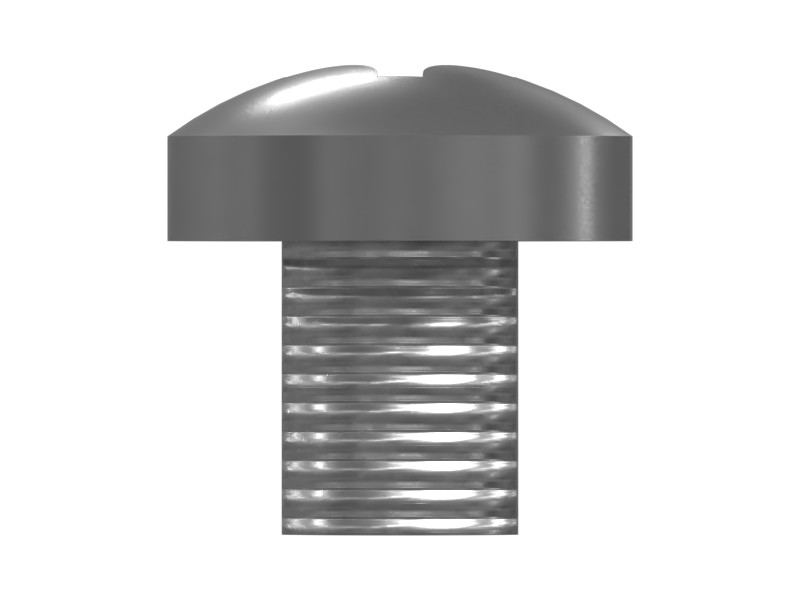

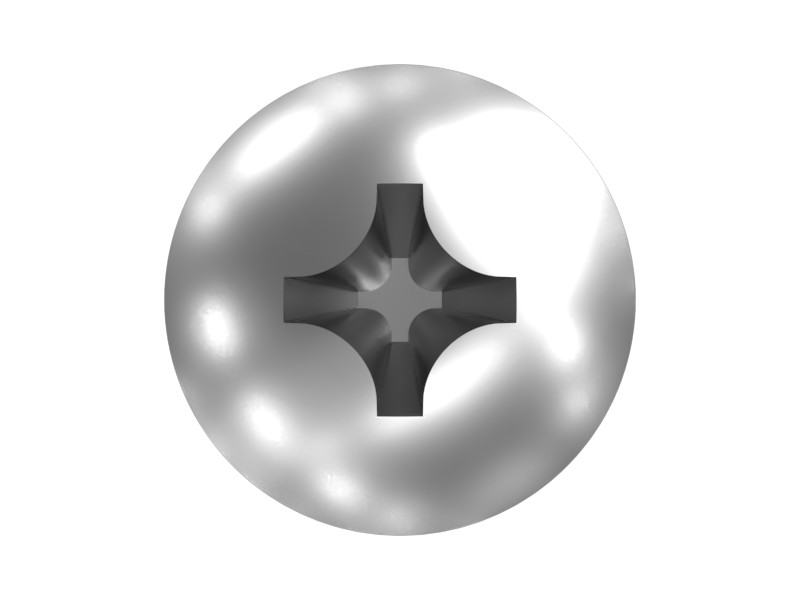

Description
Machine screws are available in a variety of head styles, drive types, sizes, and materials.
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Specifications
| Thread Direction | RH |
|---|---|
| Bolt Type | Rounded Head (Pan) |
| Thread Size | M5 mm (0 in) |
| Class or Grade | ISO 898-1 Class 4.8 |
| Bolt Length | 6 mm (0.236 in) |
| Head Type | Oil Pan |
| Material | Carbon Steel |
| Coating | None |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M5X0.8 mm |
| Length | 6 mm |
| Handle Length | None mm (0.063 in) |
Compatible Equipment
- Generator Sets: 3512B, 3516C
- Engines: C27, C32, C175-16
- Mini Excavators: 307B, 305.5, 307C, 305.5E, 303.5, 303.5E, 307D, 306
- Excavators: 330D L, 349F L, 329E L, 3516B, 315F LCR, 336F, 336F L, 313F L, 320E, 330 L, 336D2 L, 314D CR, 320C, 311D LRR, 320D RR, 336D L, 325C, 315D L, 330C L, 336E H, 312C, 315C, 328D LCR, 336E L, 320D L, 320B, 314C, 313D2, 324D L, 312C L, 323D2 L, 323D L, 320D2 GC, 323D2, 312D2, 320D FM, 320D2 L, 312E L, 330B, 330D2, 318D2, 330D2 L, 325D L, 312D, 336F L XE, 312E, 320C L, 325B L, 312D L, 336E LH, 336E, 330C, 325D, 312D2 L, 323D, 329D L, 318D2 L, 324D, 311C, 314D LCR, 325B, 311B, 352F, 390F, 374F L, 385B, 349D L, 365B L, 385C, 349E L, 365B, 345D L, 6015B, 3516E, 345C, 349E, 345B, 3512C, 345D, 350 L, 349E L VG, 6015, 313F LGC, 336D2 XE, 330D, 312F, 325C L, 335F LCR, 329E, 313D2 GC, 390F L, 320D2, 308D, 336D, 326D2, 329D2, 329D, 320D, 336D2, 326D2 L, 374F, 349D2, 349D2 L, 349D, 329D2 L
- Wheel Loaders: 924HZ, 928HZ, 928G, 924GZ
