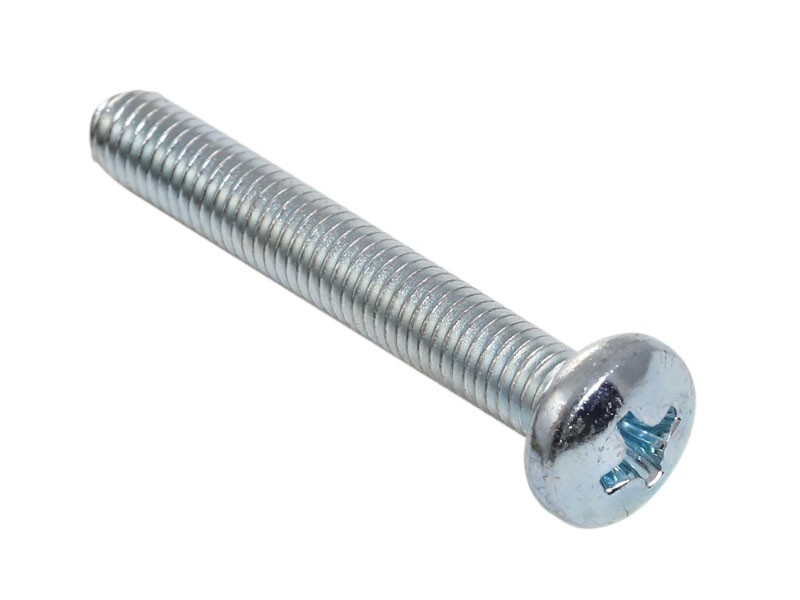

096-2591 M5-0.8 x 35 mm Round Flat Head Phillips Screw
Cat® M5 Phillips Pan Head Steel Screw
Description
A pan head screw is a fastener whose head has a flat, rounded, or slightly domed top surface, resembling the shape of a pan. The defining feature of a pan head screw is its head shape. The head is typically cylindrical with a flat, slightly rounded top. It may have a slight dome, but not the high conical shape of a countersunk or flat head screw.
Attributes
- Helps distribute the load over a larger area, which helps resist vibration and shock
- High strength and wear resistance
Applications
Pan head screws are used to join two pieces of material together. When threaded into a compatible threaded hole or nut, they form a secure fastening.
Specifications
| Thread Direction | RH |
|---|---|
| Thread Size (Diameter × Pitch) | M5x0.8 mm |
| Thread Size | M5 mm (0 in) |
| Class or Grade | ISO 898-1 Class 4.8 |
| Coating | Zinc |
| Bolt Length | 35 mm (1.378 in) |
| Handle Length | 1.6 mm (0.063 in) |
| Locking Feature | None |
| Material | Carbon Steel |
| Bolt Type | Rounded Head (Pan) |
Compatible Equipment
- Compactors: CB-14B
- Excavators: 330D L, 330D, 320D2 L, 329D L, 320E, 323D L, 330C L, 325D, 324D, 336D L, 320D2 GC, 329E, 325D L, 336D2 XE, 336D2 L, 325C, 320D FM, 320C, 323D2 L, 324D L, 330C, 320D L, 336E L, 330D2, 336E LH, 329E L, 336E LN, 336E, 323D, 345C, 349D L, 345D L, 345C L, 345D, 349E L VG, 340D2 L, 349E, 349E L, 336D2 GC, 325C L, 330D2 L, 320D2, 320D, 336D, 329D, 326D2 L, 336D2, 329D2, 349D2, 349D, 349D2 L, 326D2, 329D2 L
Additional information
| Machine Model | 320C, 320D, 320D FM, 320D L, 320D2, 320D2 GC, 320D2 L, 320E, 323D, 323D L, 323D2 L, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D2, 326D2 L, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E L, 336E LH, 336E LN, 340D2 L, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, CB-14B |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
