Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

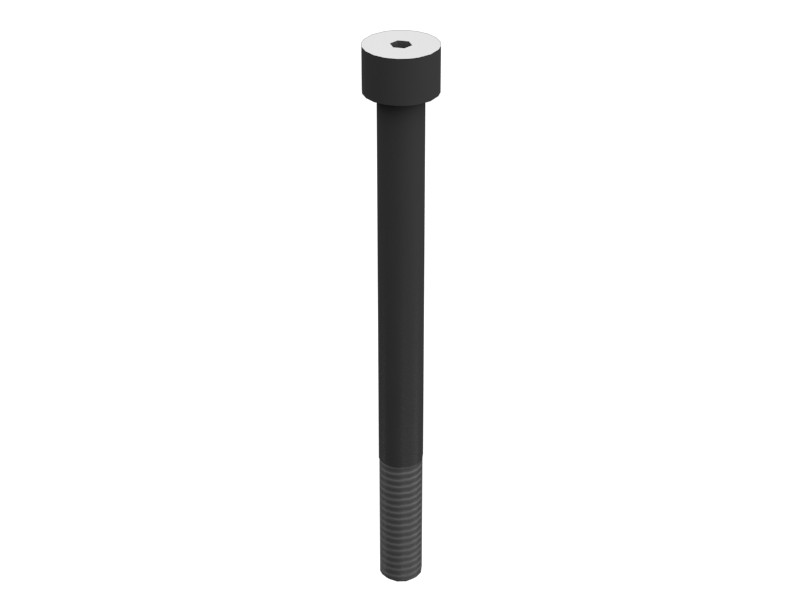

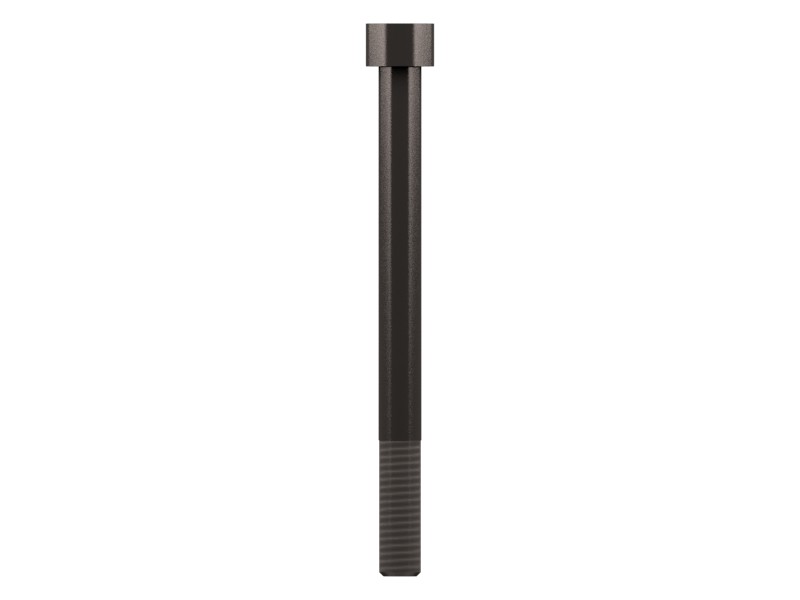

Socket head bolts are used in designs where there is not enough clearance for hex head bolts and assembly tools.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat bolts, nuts, and washers are specially designed to work together as a system to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Coating | None |
| Class or Grade | ISO 898-1 Class 12.9 |
| Locking Feature | None |
| Bolt Type | Socket Head |
| Thread Size | M10 mm (0 in) |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 120 mm (4.724 in) |
| Handle Length | 88 mm (3.465 in) |
Compatible Equipment
- Track Loaders: 834H
- Wheel Excavators: M315
- Compactors: CB-534D, CB-564D
- Engines: C175-16
- Excavators: 330D L, 6040, M325D L MH, 330 L, 325B L, 330D, 324D L, 325B, 320B, 330B, 345C
- Wheel Loaders: 924GZ, 926M, 910, 924K, 938K, 938M, 988H, 988G, 928G
- Off-Highway Trucks: 777, 740, 777E
- Skid Steer Loaders: 262C
Additional information
| Machine Model | 262C, 320B, 324D L, 325B, 325B L, 330 L, 330B, 330D, 330D L, 345C, 6040, 740, 777, 777E, 834H, 910, 924GZ, 924K, 926M, 928G, 938K, 938M, 988G, 988H, C175-16, CB-534D, CB-564D, M315, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Off-Highway Trucks, Compactors, Engines |
| Part Source | Genuine OEM |
