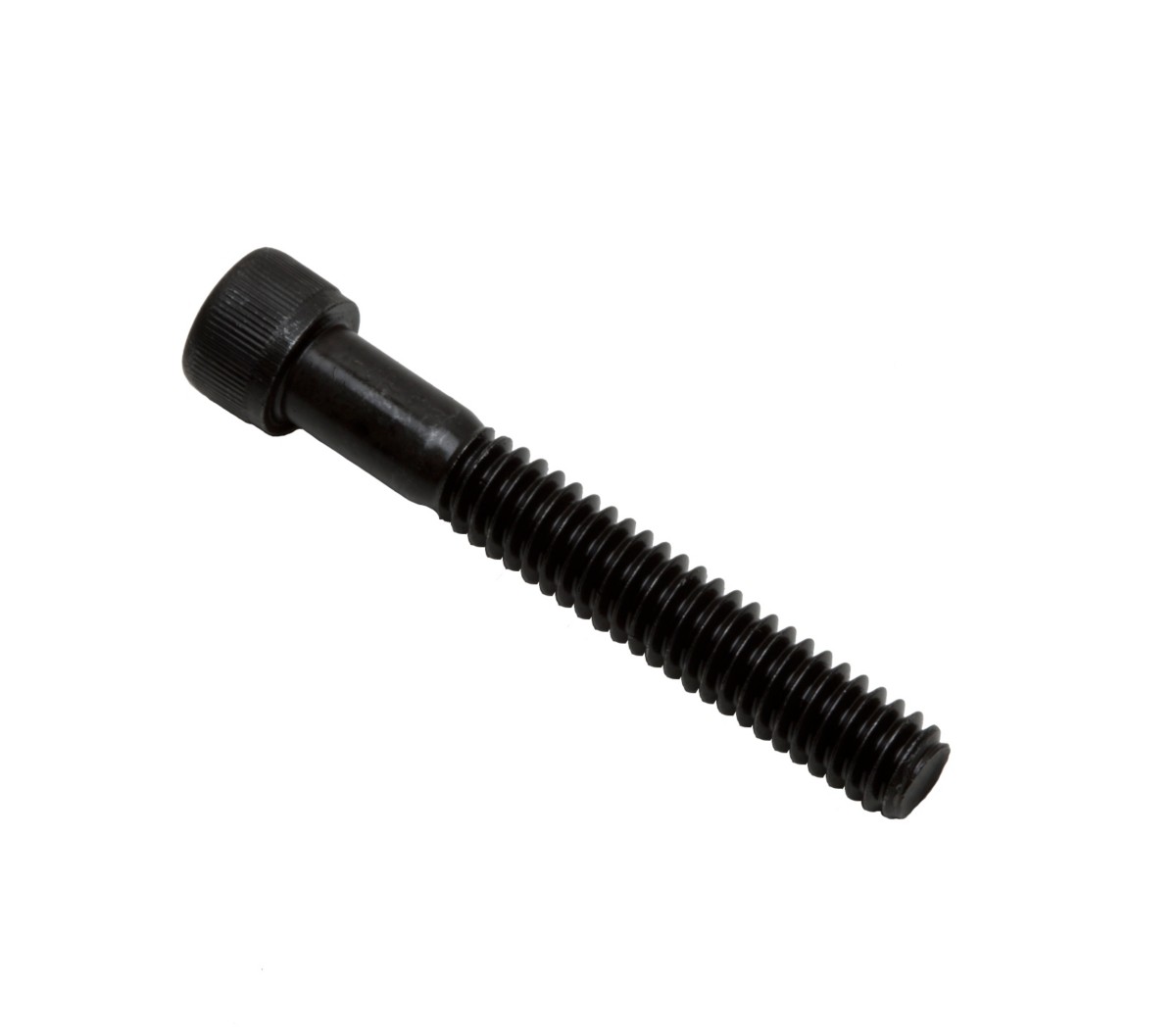

095-9804 M12X1.75 Thread Socket Head Bolt
Cat® M12 x 1.75 Thread 110 mm Long Socket Head Bolt
Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Class or Grade | ISO 898-1 Class 12.9 |
|---|---|
| Bolt Length | 110 mm (4.331 in) |
| Handle Length | 74 mm (2.913 in) |
| Coating | None |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M12 × 1.75 mm |
| Thread Size | M12 mm (0 in) |
| Locking Feature | None |
| Bolt Type | Socket Head |
Compatible Equipment
- Track Loaders: 990K, 993, 995, 834H, 994K
- Wheel Excavators: M315, M320
- Compactors: CS-533C
- Excavators: 330D L, 312C, 330C L, 325C, 336F, 320C, 6040, 312C L, 325B L, 320D RR, 6020B, 385C, 385B, 390F, 365C L, 365B, 365C, 3516B, 385C L, 365B L, 6060, 320D
- Wheel Loaders: 988K, 988H, 988G
- Off-Highway Trucks: 793
Additional information
| Machine Model | 312C, 312C L, 320C, 320D, 320D RR, 325B L, 325C, 330C L, 330D L, 336F, 3516B, 365B, 365B L, 365C, 365C L, 385B, 385C, 385C L, 390F, 6020B, 6040, 6060, 793, 834H, 988G, 988H, 988K, 990K, 993, 994K, 995, CS-533C, M315, M320 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Off-Highway Trucks, Compactors |
| Part Source | Genuine OEM |
