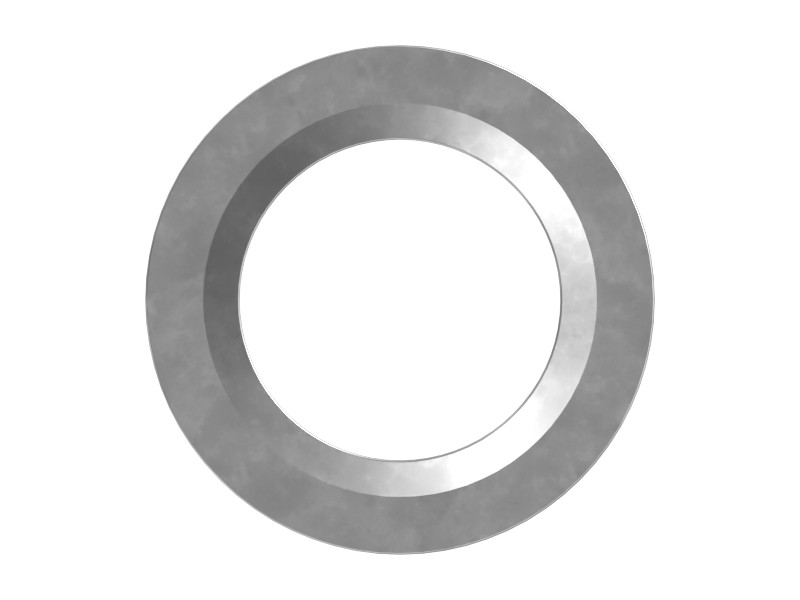

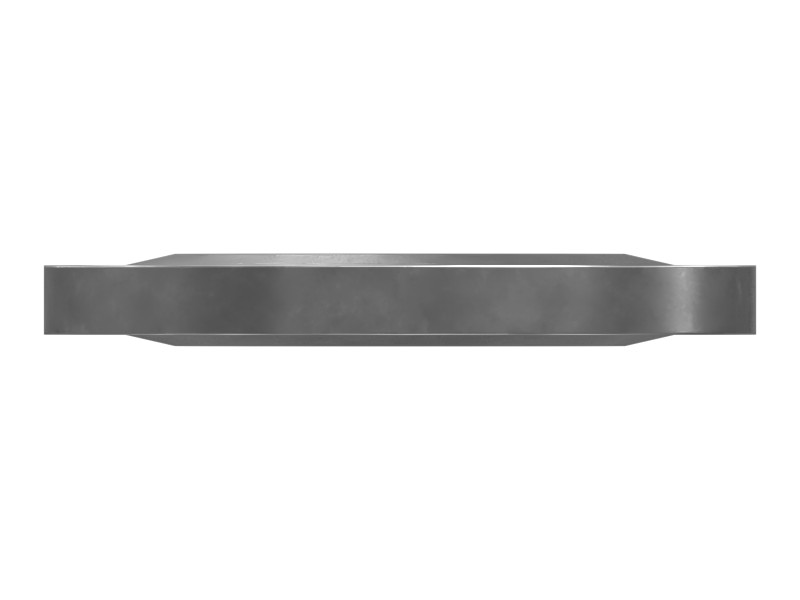

095-2039 2 mm Thick Washer
Cat® washer designed for M10 fasteners prevents the fastener from sinking into the material and distributes the load more evenly.
Description
The sealing washer is used to prevent leakage through bolt holes in low-pressure applications.
Features
Cat® sealing washers are steel washers with a bonded rubber center.
When selecting rubber materials, the temperature and fluid compatibility requirements of the application are taken into account.
Genuine Cat seals properly protect your investment. If it's not made by Cat, it's just an ordinary seal.
Applications
The sealing washer is used in bolted joints that require leak protection.
Specifications
| Material | Rubber/Steel |
|---|---|
| Steel Thickness | 2 mm (0.08 in) |
| Outside Diameter | 15.5 mm (0.61 in) |
| Inside Diameter | 9.8 mm (0.39 in) |
| Remarks | Dimensions and material descriptions are for reference only. |
Compatible Equipment
- Excavators: 320D RR, 320D FM, 323D L, 320D L, 312D L, 315D L, 320C, 312C L, 314D CR, 312D, 311D LRR, 320B, 320D GC, 312C, 313D, 311B, 314D LCR, 314C, 318D L, 311C, 323D, 320C L, 320D
