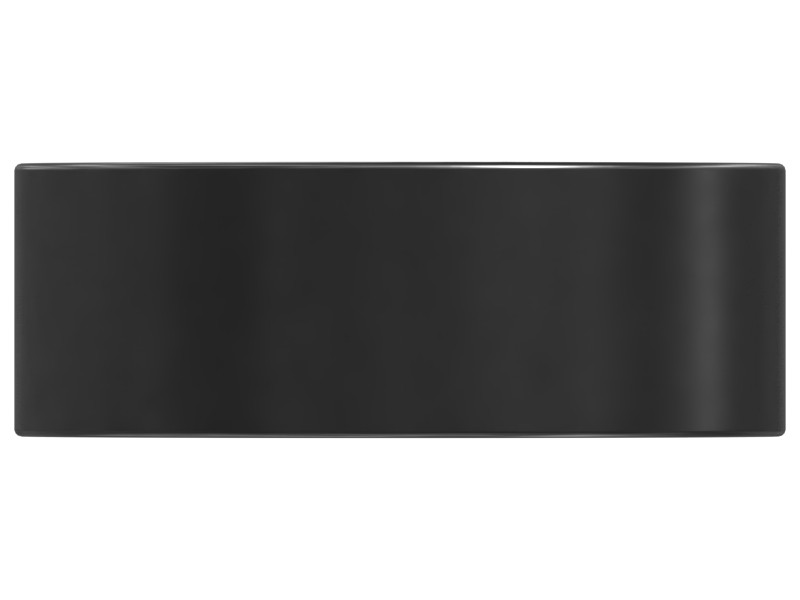

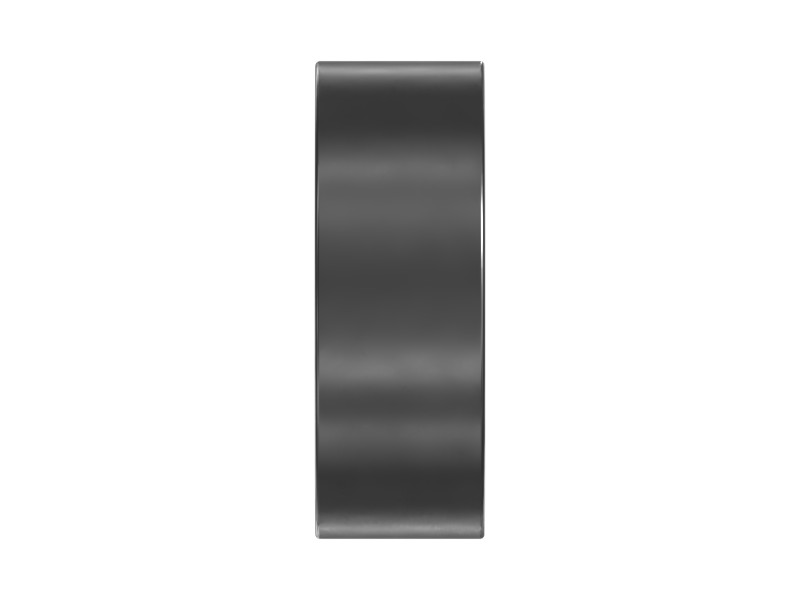

095-1806 120 mm ID Spherical Roller Bearing
Cat® Extra-Large Double-Row Spherical Roller Bearing for swing drives
Description
Cat bearings are designed for specific applications based on load, operating speed, temperature range, size, and past performance, and are manufactured to extremely high quality standards for long service life and high performance. Spherical roller bearings accommodate misalignment through the use of a concave outer raceway and spherical rollers.
Features
- Double-row spherical roller bearing
- Bore Diameter: 120 mm (4.72 in)
- Outside Diameter: 215 mm (8.46 in)
- Height: 76 mm (2.99 in)
Applications
Cat self-aligning spherical roller bearings are typically used to support high radial loads and some axial loads in situations where misalignment may occur due to shaft deflection.
Compatible Equipment
- Excavators: 349F L, 325B L, 325B, 352F, 350 L, 349E L, 345C, 345C L, 345D L, 349E, 349D L, 345B, 349E L VG, 345D, 352, 349, 349D2 L, 349D2, 349D
