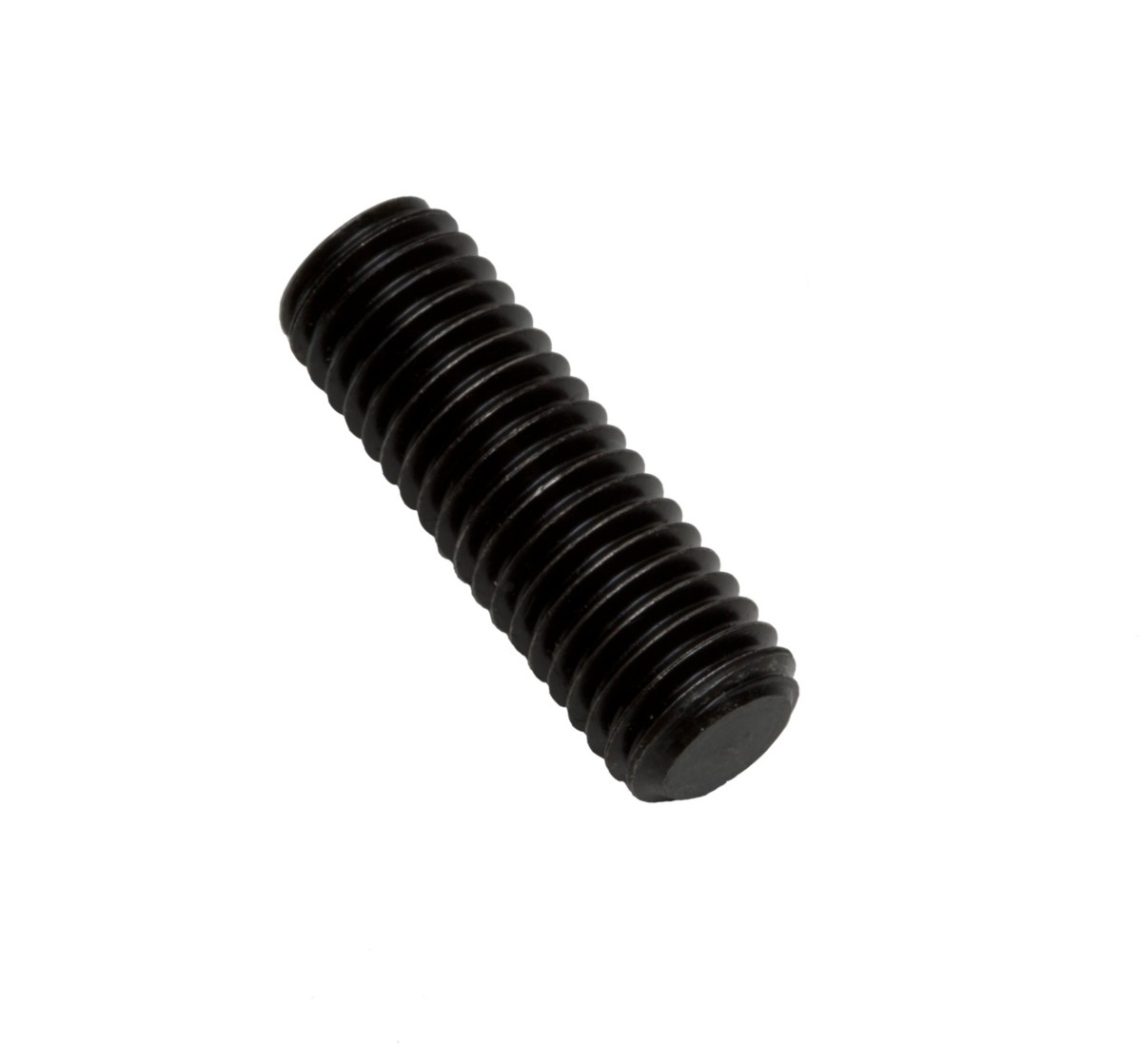

095-1260 Control Valve Adjusting Screw Cup Point
Cat® Pilot Control Valve Adjusting Screw Cup Point
Description
The pilot control valve adjusting screw, cup end, is a small threaded fastener used in the pilot control valve that helps secure and adjust the position of components within the valve assembly. The adjusting screw is designed with a unique cup-shaped tip, commonly referred to as a cup end, which enhances its function and performance.
Features
- Ensures excellent strength and wear resistance.
- Specially designed to withstand the force and pressure of tightening or loosening the adjusting screw.
Applications
The pilot control valve adjusting screw, cup end, is a specialized threaded fastener used in the pilot control valve. Its cup-shaped tip ensures a secure connection and allows precise adjustment of internal components.
Specifications
| Material | Alloy Steel |
|---|---|
| Thread Size (Diameter × Pitch) | M6 × 1.00 mm |
| Screw Length – A | 6 mm |
| Screw Type | Set Screw – Cup Point |
| Thread | Coarse Thread UNC |
Compatible Equipment
- Motor Graders: 120, 140 GC, 120H, 160K, 12H, 316F, 140K, 12K, 140H
- Generator Sets: 3512B, C7.1
- Wheel Excavators: IT14G, MD6250, MD6310
- Mini Excavators: 305.5E, 307, 305E2, 307D, 307B, 305.5E2, 307C, 308E2, 303.5D, 307E2, 303.5E, 306, 305.5 GC, 303.5C, 305.5
- Excavators: 330D L, 305E2 CR, 349F L, 336E L, 330D2, 324D L, 311D LRR, 311B, 312F, 320C, 330D, 318D2 L, 312D2 L, 330C, 336D L, 325B L, 336D2 GC, 336E, 323D L, 330 L, 323D2 L, 320D RR, 336D2 L, 329E, 320D L, 325C, 312D L, 325D L, 320D2 L, 312D2, 329D L, 320B, 120 GC, 314D LCR, 336F L, 329E L, 336D2 XE, 324D, 336F LN, 311C, 312C, 313F LGC, 336E LH, 320D2 GC, 336F, 314C, 325D, 312D, 313D, 313D2, 336F L XE, 315C, 312C L, 330C L, 320D FM, 315D L, 320E, 312E L, 336E LN, 320D GC, 313D2 GC, 390F, 345C, 345D L, 349D L, 350 L, 349E L VG, 345C L, 345D, 349E, 345B, 374F L, 352F, 349E L, 340D L, 340D2 L, 320D3 GC, 328D LCR, 320D3, 330B, 325C L, 315F LCR, 318D L, 330D2 L, 313F L, 323D2, 312E, 312D2 GC, 320C L, 323D, 325B, 314D CR, 336E H, 326D L, 318D2, 335F LCR, 313D2-GC, 326D2 L, 320D2, 329D, 336D2, 336D, 308D, 320D, 329D2 L, 308E, 307E, 306E2, 303C CR, 305C CR, 303.5E2 CR, 306E, 305, 349D2 L, 390F L, 349D, 349D2, 374F, 326D2, 303, 329D2
- Asphalt Pavers: AP300F, AP-600D, AP355F
- Skid Steer Loaders: 313D2 LGP
