Description
With Cat service parts, system components in Cat heavy-duty equipment can be easily repaired and replaced. However, proper installation is still required to restore the full functionality of the system.
Features
- Material: Steel
- Black oxide coating
- 1/16-27 NPTF thread

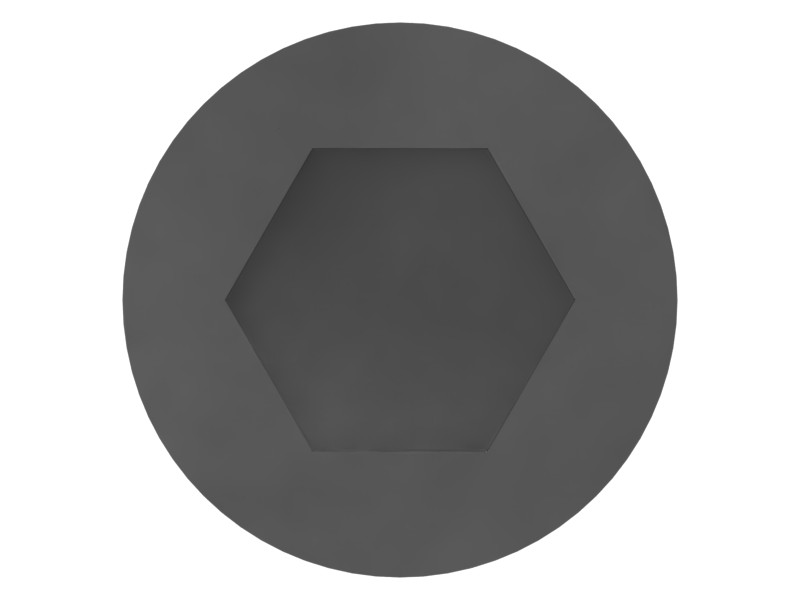

- Socket head
- Hex Size: 4 mm
- With sealant
- 45° on both sides
Applications
Used to service the drain port of a hydraulic pump. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Thread Size | 1/16-27 NPTF in |
| Diameter | 7.8 mm (0.31 in) |
| Height | 6.35 mm (0.25 in) |
| Hex Size | 4 mm (0.16 in) |
Compatible Equipment
- Generator Sets: 3516C, 3512B, C7.1
- Motor Graders: 316F
- Mini Excavators: 307C, 307D
- Excavators: 320C, 318D L, 325D L, 313D2 GC, 318D2 L, 320D2 GC, 329D L, 325D, 320 GC, 311C, 336F L, 311D LRR, 320B, 323D L, 325C L, 320D L, 324D L, 325C, 324D, 312D, 315C, 312C, 336F, 323D2 L, 314D LCR, 323, 336E H, 329E, 314C, 312E, 320D2 L, 312F, 315D L, 637K, 313F LGC, 328D LCR, 313D, 313D2, 330B, 312D2, 312D L, 320D FM, 312C L, 320D RR, M325D L MH, 320E, 313F L, 330D2, 336F L XE, 329E L, 315F LCR, 312D2 GC, 312D2 L, 336F LN, 320D GC, 336E LH, 330D2 L, 325B L, 312E L, 313D2-GC, 314D CR, 320, 335F LCR, 336D L, 323D, 326D L, 336D2 XE, 318D2, 323D2, 320C L, 325B, 320D, 308D, 320D2, 326D2 L, 326D2, 329D, 329D2 L, 329D2, 308E
- Wheel Loaders: 972H, 988K, 966H, 950H, 966K, R1700 XE, R2900 XE
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 307C, 307D, 308D, 308E, 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 313F LGC, 314C, 314D CR, 314D LCR, 315C, 315D L, 315F LCR, 316F, 318D L, 318D2, 318D2 L, 320, 320 GC, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330B, 330D2, 330D2 L, 335F LCR, 336D L, 336D2 XE, 336E H, 336E LH, 336F, 336F L, 336F L XE, 336F LN, 3512B, 3516C, 637K, 950H, 966H, 966K, 972H, 988K, C7.1, M325D L MH, R1700 XE, R2900 XE |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Skid Steer Loaders, Motor Graders, Generator Sets |
| Part Source | Genuine OEM |
