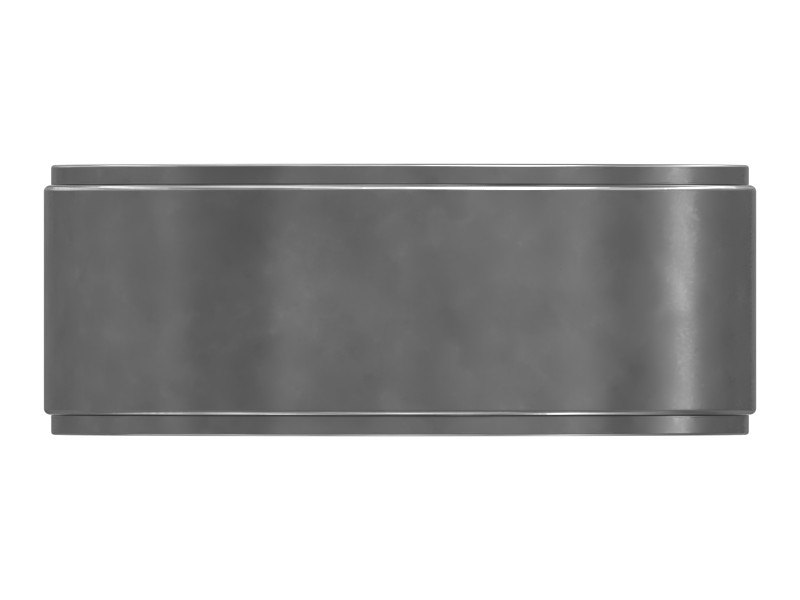

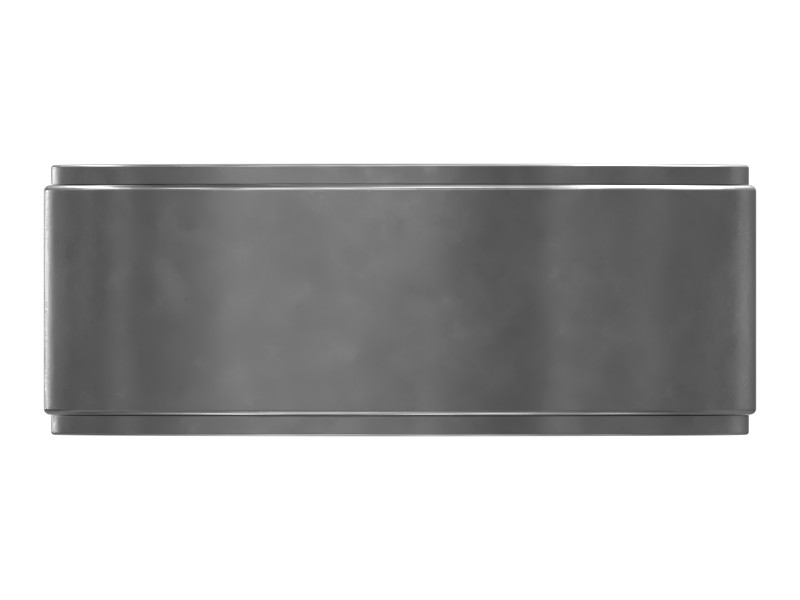

094-1542 Locking Bearing Roller Group
Cat® Needle Bearing (Roller and Cage Assembly) (Metric)
Description
Cat radial needle roller and cage assemblies are self-contained, ready-to-install bearings suited to applications where the housing bore and shaft serve as the raceways. They support heavy loads and run smoothly and reliably at high speeds.
Features
- Outside Diameter: 73.020 mm (2.8748 in)
- Inside Diameter: 52.989 mm (2.086 in)
- Height: 27.6 mm (1.0866 in)
- Able to withstand high loads, with high hardness
- Supports high rotational speeds
- Smallest cross section among rolling bearings
Applications
Typical applications for radial needle roller and cage assemblies are planetary gears, constant-mesh gears, idler gears, and connecting rods. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Steel |
|---|---|
| Outside Diameter | 73.02 mm (2.8748 in) |
| Inside Diameter | 52.989 mm (2.086 in) |
| Height | 27.6 mm (1.0866 in) |
Compatible Equipment
- Excavators: 320D FM, 320C, 323D L, 320D L, 320D RR, 325B, 325B L, 311C, 320B, 315D L, 345B, 323D, 315C, 320D GC, 323D2 L, 320C L, 320D
