Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance. This is information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to strict specifications for durability, reliability and efficiency
High • Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, together with the associated hardened washers and nuts, form a high-performance system that produces sustained high clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts and their associated washers and nuts form a high-performance system that provides consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications

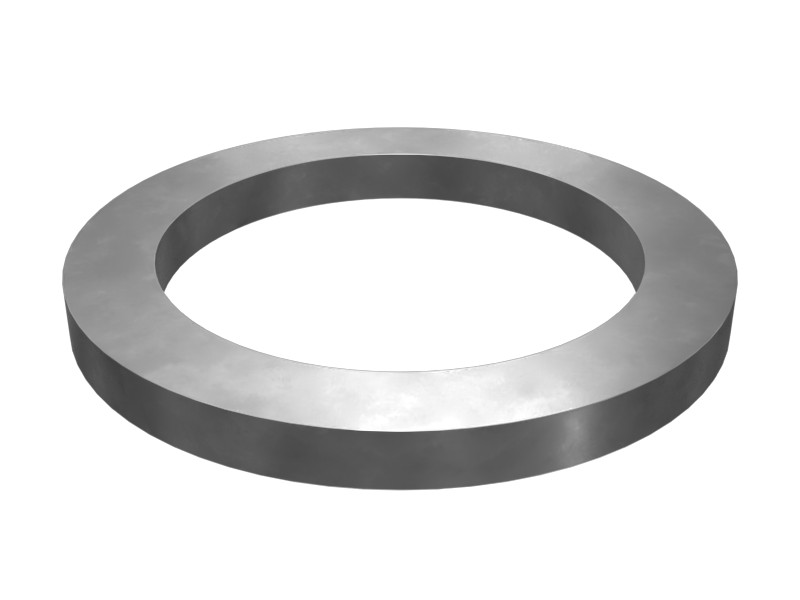

| Gasket Type | Flat Washer |
|---|---|
| Material Description | Mild Steel |
| Coating | Zinc plating provides low to moderate corrosion protection and electrical conductivity. Salt spray resistance: 96 hours with no white rust. Coating color – silver. |
| Inside Diameter | 103 mm (4.055 in) |
| Outside Diameter | 140 mm (5.512 in) |
| Thickness | 12 mm (0.472 in) |
Compatible Equipment
- Motor Graders: 349 GC
- Generator Sets: 3512B
- Excavators: 349F L, 330D L, 325C, 325D L, 336D L, 336F, 330D2, 336E, 329D L, 349E, 345D L, 345B, 349E L VG, 345C, 349, 340D2 L, 349E L, 365C, 349D L, 345C L, 352F, 365C L, 365B, 385C L, 340D L, 365B L, 345D, 352, 350 L, 385C, 345 GC, M325D L MH, 336F L, 330C, 336E LH, 324D L, 324D, 330 L, 330D, 340, 329E L, 330C L, 325D, 336F LN, 336D2 L, 320C, 330D2 L, 328D LCR, 336 GC, 335F LCR, 330 GC, 329E, 336E L, 336, 336D2 GC, 336F L XE, 350, 355, 335, 326, 333, 325, 330GC, 320, 325C L, 325B, 325B L, 330B, 336E H, 336D2 XE, 326D L, 336E LN, 349D2, 349D2 L, 349D, 326D2, 329D2 L, 330, 326D2 L, 329D, 336D, 336D2, 329D2
Additional information
| Machine Model | 320, 320C, 324D, 324D L, 325, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330 L, 330B, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 330GC, 333, 335, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345 GC, 345B, 345C, 345C L, 345D, 345D L, 349, 349 GC, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 350, 350 L, 3512B, 352, 352F, 355, 365B, 365B L, 365C, 365C L, 385C, 385C L, M325D L MH |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
