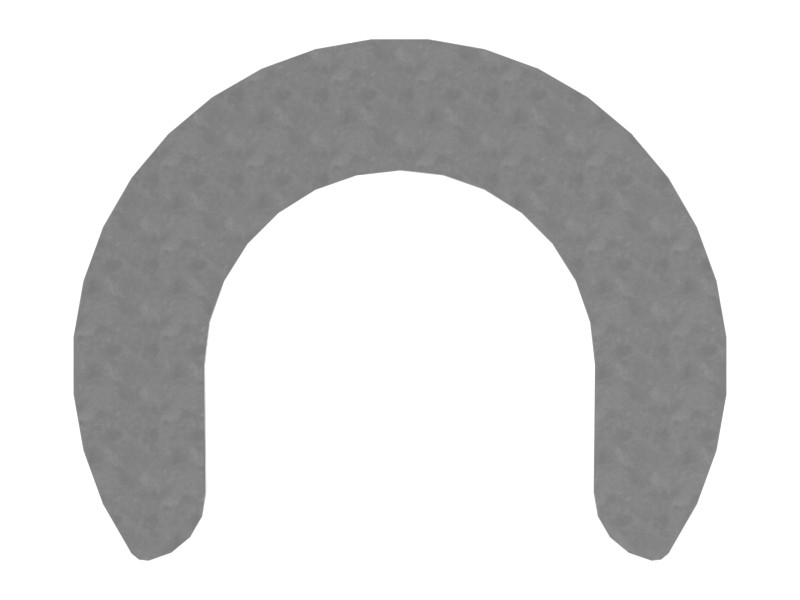

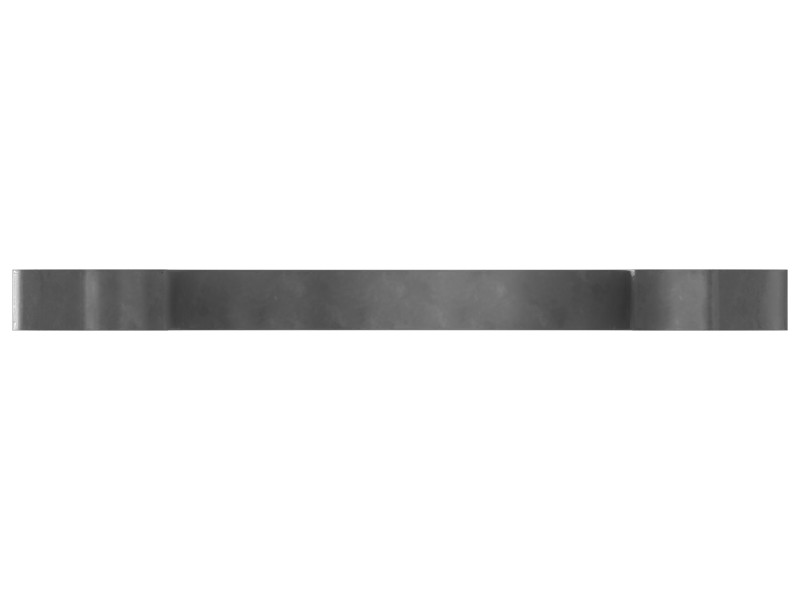

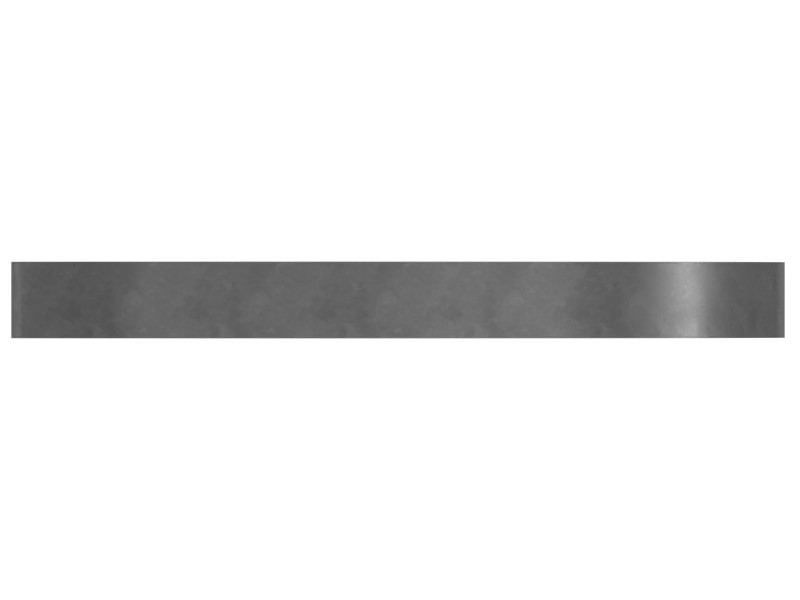

085-8605 6 mm Thick Retaining Ring
Cat® External Half Ring, Inside Diameter: 46 mm, Steel
Description
The retaining ring (for example 085-8605) is installed in a machined groove in the housing/bore (internal) or on the shaft (external), providing high strength and long service life in a variety of applications.
Cat retaining rings are manufactured to precise specifications for durability, reliability and high efficiency. You can count on this Built For It product to help you get more work done.
Features
- Steel half ring
- Type: External
- Inside Diameter: 46 mm (1.8 in)
- Outside Diameter: 77 mm (3.0 in)
- Thickness: 6 mm (0.22 in)
- Retaining rings meet or exceed ANSI, ASTM and DIN requirements.
Applications
- Assembles into a shaft or housing groove to secure parts or assemblies.
Specifications
| Snap Ring Type | Outer Shaft |
|---|---|
| Style | Rectangular Section |
| Outside Diameter | 77 mm (3.031 in) |
| Inside Diameter | 46 mm (1.811 in) |
| Thickness | 5.6 mm (0.220 in) |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 323, 333, 330 GC, 320, 330GC, 320D L, 335F LCR, 323D, 328D LCR, 323D2 L, 325D, 323D L, 320 GC, 336 GC, 324D L, 320C, 320D FM, 320D2 L, 325, 320D RR, 330D2, 329E L, 326, 325C, 324D, 329D L, 320D2 GC, 325D L, 320E, 329E, 330D2 L, 320D GC, 323GC, 325B L, 330C L, 325B, 323 GX, 325C L, 326 GC, 333 GC, 323 GC, 320B, 326D L, 323D2, 326GC, 320D2, 330, 320D, 329D2 L, 329D2, 326D2, 326D2 L, 329D
Additional information
| Machine Model | 320, 320 GC, 320B, 320C, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GC, 323 GX, 323D, 323D L, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330C L, 330D2, 330D2 L, 330GC, 333, 333 GC, 335F LCR, 336 GC, 3512B |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
