Description

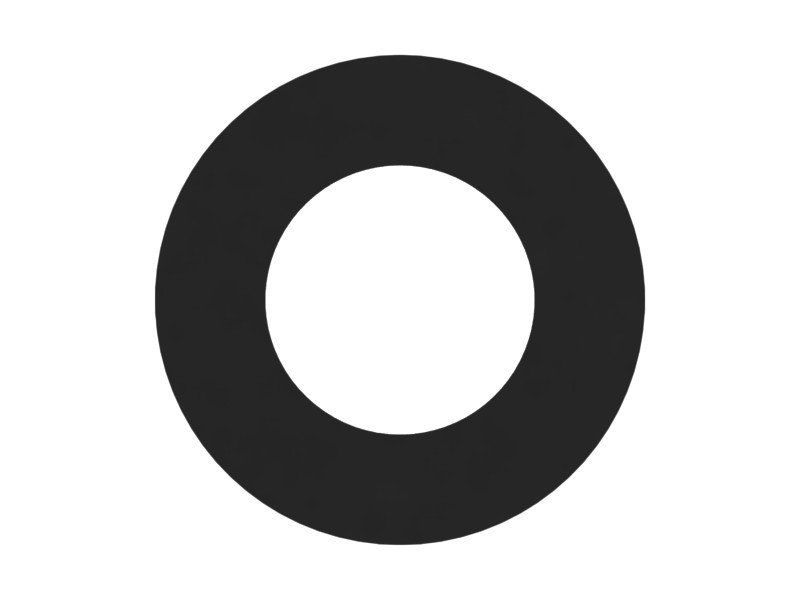

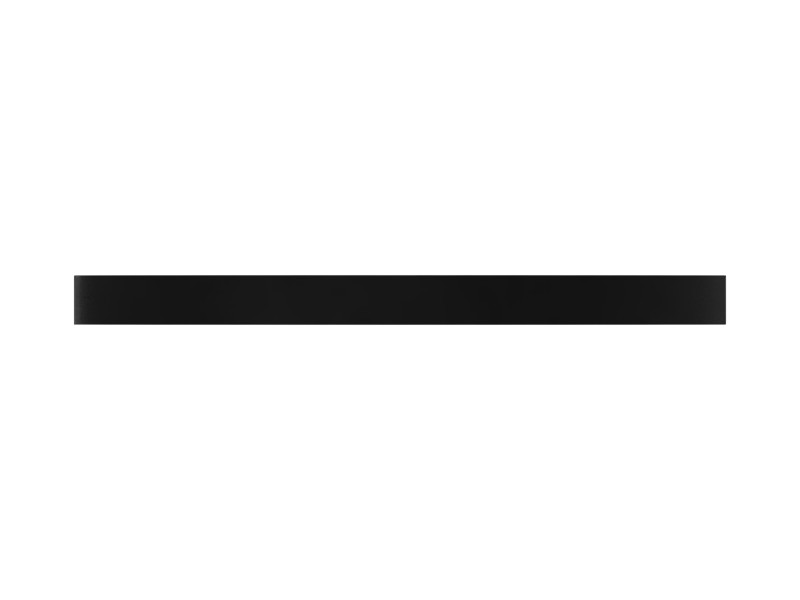

Rectangular seals and seal rings are circular seals with a rectangular cross-section. Depending on the needs of the application, the edges may be rounded or not rounded.
Features
Cat® seals and seal rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance.
Our seals and rings are dimensioned to strictly adhere to tight tolerances, ensuring they fit properly in the seal groove with the necessary seal compression.
Cat sealing systems prevent leaks and contamination of more expensive parts. Protect your investment with Genuine Cat seals.
Applications
Rectangular seals and seal rings are widely used in a variety of sealing applications on Cat machines and engines.
Specifications
| Material | NBR – Nitrile |
|---|---|
| Material Description | NBR is a general-purpose material with good abrasion and cut resistance. It is suitable for air, engine oil, diesel fuel, coolant/urea, hydraulic oil and automatic transmission fluid applications. Never use with biodiesel. |
| Cross-Section Width | 3 mm (0.12 in) |
| Inside Diameter | 22 mm (0.87 in) |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Cross-Section Height | 9 mm (0.35 in) |
Compatible Equipment
- Compactors: CS-56, CS-54, CS-583D, CS-563E, CS-533C, CS-533E
