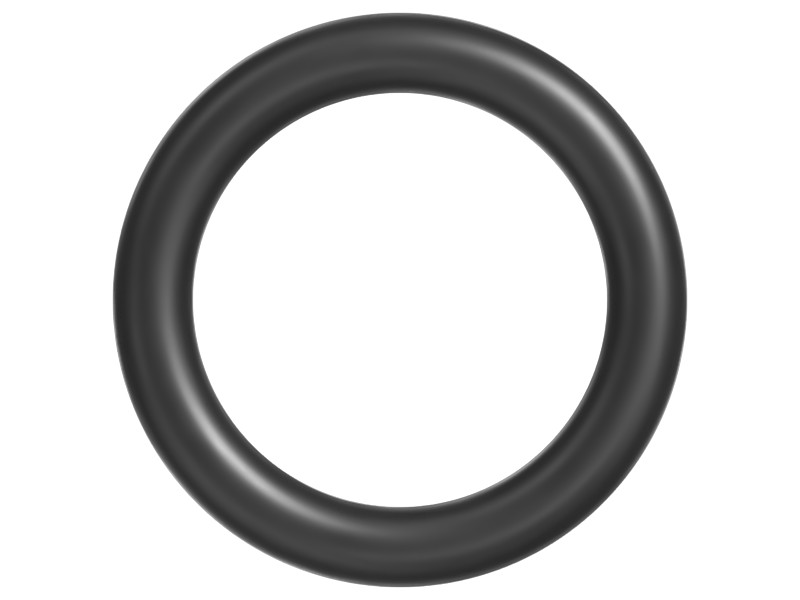

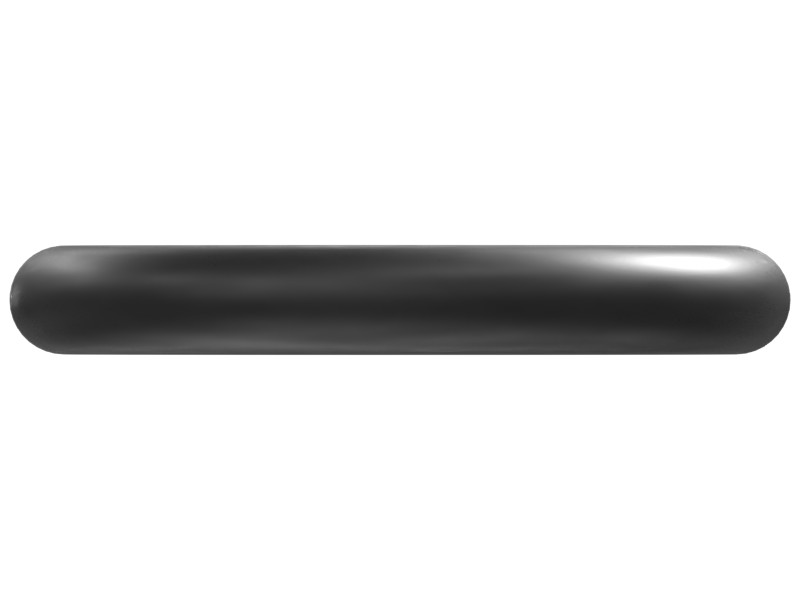

Description
O-rings are used for static sealing and some dynamic applications.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Material | FKM (90) |
|---|---|
| Material Hardness | 90A |
| Polymer | FKM (Fluorocarbon) |
| Seal Inside Diameter | 9.25 mm |
| Cross-Section Diameter | 1.78 mm (0.07 in) |
| Compatible | Diester Lubricants; Halogenated Hydrocarbons (Above 100 Degrees C); Excellent Compression Set Resistant Material; Petroleum Fluids; Phosphate Ester Fluids; Silicone Oils; Certain Acids |
| Coating | None |
| Application | High-pressure, high-temperature applications requiring resistance to air, fuel, lubricants and hydraulic oil; ORFS, STORS seals |
| Temperature | -40 – 175 °C (-40 – 350 °F) |
| Dash Size | 012 in |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Inside Diameter | 9.2 mm (0.36 in) |
| Material Description | FKM provides excellent performance in most applications, including air, engine oil, diesel fuel, hydraulic oil, automatic transmission fluid and biodiesel. Most FKM formulations must not be used with coolant/urea. FKM is effective at high temperatures and has good abrasion and cut resistance. |
| Not Compatible | Amines; Brake Fluids; Engine Coolants; Fire-Resistant Fluids; Ketones; Steam; Water |
Compatible Equipment
- Generator Sets: G3516, 3512B, C4.4
- Track Loaders: 963, 953, 963K, 953D, 953K, 963D, 994K, 992, 995
- Cold Planers: PL83, PL61, PL87, PL72
- Compactors: CS12, CB16, CS68B, CB-564D, CW-34, CB-66B, CP56B, CS56B, CS74B, CS78B, CS-533C, CB-534D, CS-583D, CS-56, CB-64B, CS-563E, CB-434D, CS79B, CB13, CB15
- Engines: C15, C13, C175-16
- Excavators: 3126, 374, M325D L MH, 637G, 637E, 330 L, 345B, 621G, 3516B, 3508B, 395, 330B, 320C, 320D FM, 6030, 3101
- Asphalt Pavers: AP355F, AP655F, AD45, AP-600D, AP655F L
- Skid Steer Loaders: 3126B
- Motor Graders: 120H
- Wheel Excavators: IT14G, M315, M320, MD6250, MD6200, M322D, M315GC, M320D2, M317D2, M315D
- Dozers: D6N, D9N, D3G, D5K LGP, D6K2, D4G, D8T, D5G, D11T, D3K2 LGP, D5N, D9R, D8L, D4, D10R, D10T, D5K2 XL, D5K XL, D10N, D11N, D11R
- Wheel Loaders: 924K, 938M, 926M, 938K, 906K, 910, M314
- Off-Highway Trucks: 796 AC, 777D, 785D, 793, 789D, 793F, 793D, 773D, 797F, 785, 771D, 789, 773, 773F, 773E, 794 AC, 777E, 798 AC
