Description

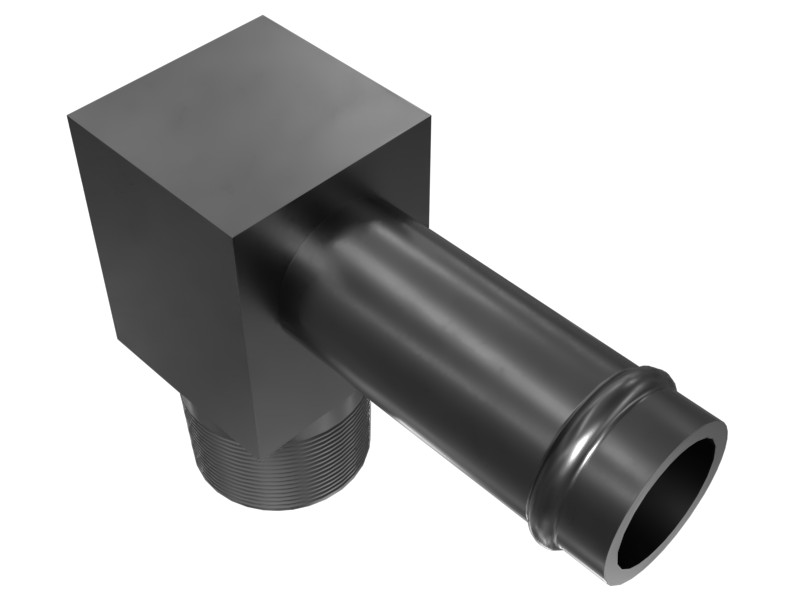

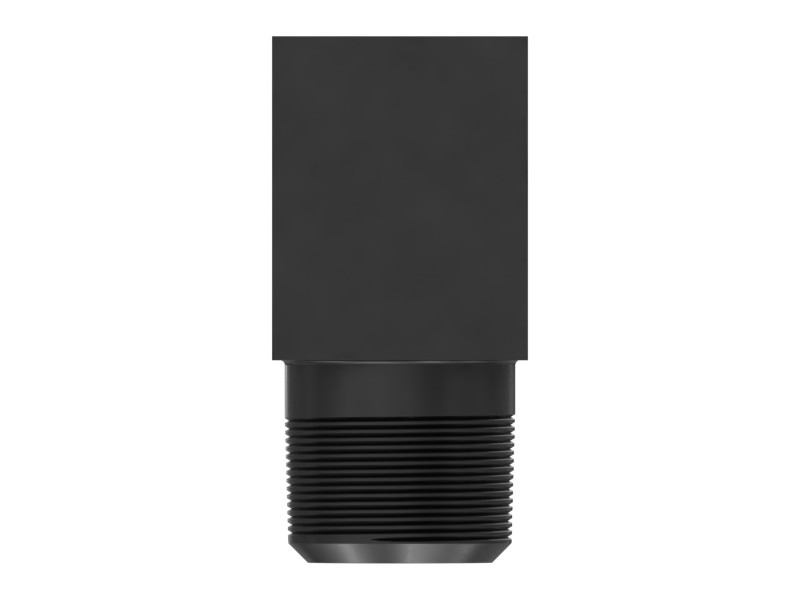

The elbow is a mechanical component used in the engine exhaust system to carry exhaust gases from the engine to other downstream components of the system. These elbows are carefully engineered to withstand extreme temperatures and pressures. The NPTF threads on the elbow are tapered, forming a tight, secure seal when threaded into a mating NPTF female fitting. This seal prevents leaks and ensures that fluid flows smoothly through the fitting.
Features
- Made from high-quality materials that withstand high temperatures and pressures.
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
Applications
The elbow connects to the lower right side of the cylinder block.
Specifications
| Material Description | Plated Steel |
|---|---|
| Material | Alloy Steel |
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve reliable connections, maximizing hydraulic system safety and reliability. In addition, use of properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to specification. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in hose assemblies that are unreliable, unsafe or perform poorly. Caterpillar does not recommend or endorse this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Hose Size, Minimum Inside Diameter | 15.88 mm (0.63 in) |
| Length (A) | 37.3 mm (1.47 in) |
| Length (B) | 50 mm (1.97 in) |
| Thread Size | 0.50-14NPTF mm (1/2"-14-NPTF in) |
| Angle | 90° |
Compatible Equipment
- Generator Sets: C4.4
- Motor Graders: 140 GC, 12K, 140H, 160K, 120, 140K, 16H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
