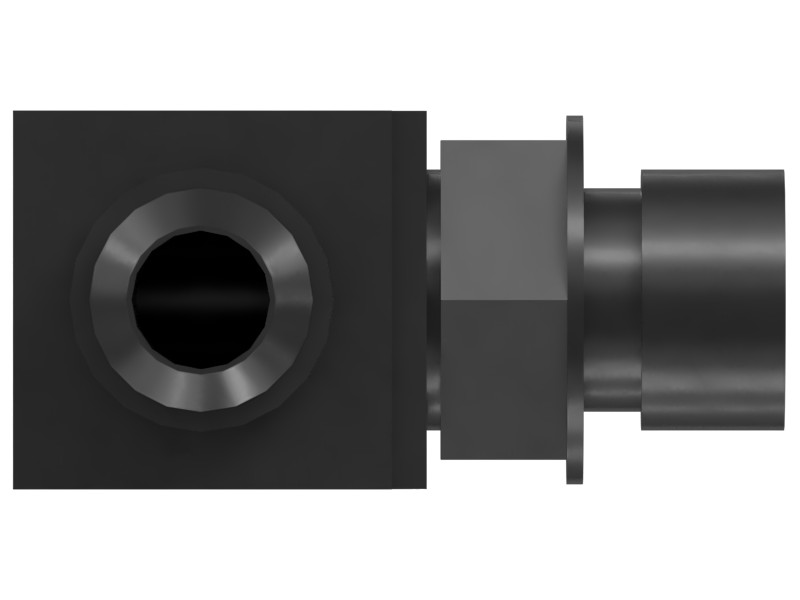

030-7947 9/16-18 Thread 90 Degree Elbow Adapter
Cat® Fuel Supply Line Elbow is a bent fitting that changes the direction of fuel flow in the fluid system
Description
Elbow adapters are used to change the direction of flow to various angles.
Features
Cat® elbow adapters are designed to resist leaks and last in demanding applications.
Recommended Applications:
Cat elbow adapters are used in a wide range of hydraulic applications, from hydraulic oil systems to brake systems.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Material | Carbon Steel |
| Width | 35.56 mm |
| Material Description | Plated Steel |
| Length | 38.1 mm (1.5 in) |
| Height | 15.24 mm (0.6 in) |
| Transmission and Hydraulic Oil Compatible Seals | 3J-1907 (9/16-18) |
| Oil and Fuel Compatible Seals | 214-7568 (9/16-18) |
| Coolant and DEF Compatible Seals | 6V-3250 (9/16-18) |
