Description
Cat hoses are designed to route liquids and gases through machine systems. These hoses are made of quality materials built to withstand the application-specific pressure, vibration resistance and flow requirements of Cat heavy-duty equipment. Cat hydraulic hoses and couplings are tested using some of the most rigorous processes in the industry. Every Cat hose and coupling combination is tested as a system to ensure a perfect fit, maximizing safety and reliability.

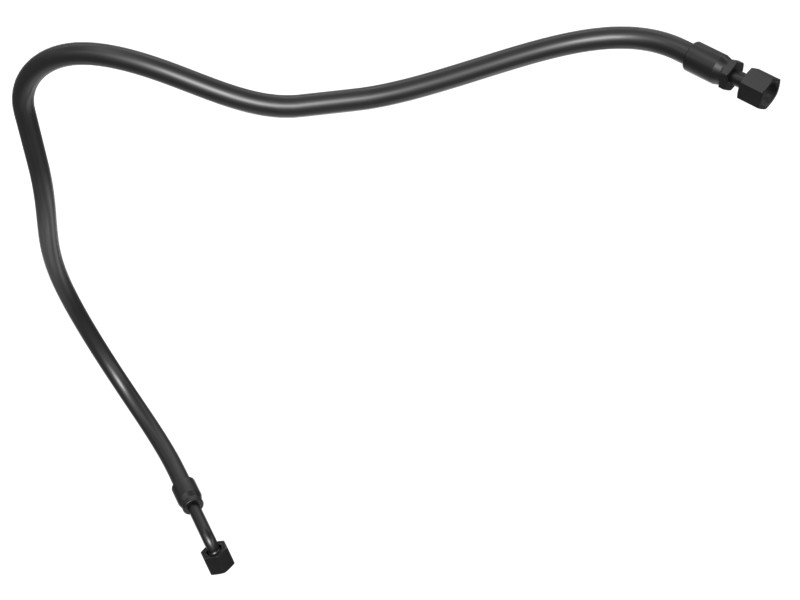

This hose is constructed with a hydraulic-oil-resistant thermoplastic or synthetic rubber inner tube and suitable fiber or wire reinforcement layers. The thermoplastic or synthetic rubber cover is resistant to hydraulic oil and weather.
Specifications
| Hose Type | Thermoplastic Reduced Outside Diameter Hose |
|---|---|
| Hose Inside Diameter | 6.3 mm (0.248 in) |
| Material | Other Hose |
| Hose Warning | Improper selections of hose and coupling combinations will void warranties and may result in serious personal injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve a reliable connection, thus maximizing hydraulic system safety and dependability. It is also recommended that appropriate and properly maintained Caterpillar tooling is used to ensure hoses are crimped to specifications. Use of Caterpillar hose with other manufacturer's couplings or the use of Caterpillar couplings with other manufacturer's hose may result in the production of unreliable, unsafe or under-performing hose assemblies. It is not recommended or authorized by Caterpillar. For additional information see SAE J1273 section 6.3 and ISO 17165-2 section 6.3. |
| Overall Length | 2327 mm (91.614 in) |
| Weight | 0.271 kg |
Compatible Equipment
- Excavators: 323 GX, 320D L, 320 GC, 320 GX, 320D FM, 320E, 323, 320D2 GC, 323D L, 320D GC, 320, 323D2 L, 320D RR, 326, 320D2 L, 323GC, 325, 323 GC, 323D, 323D2, 330, 320D, 320D2
