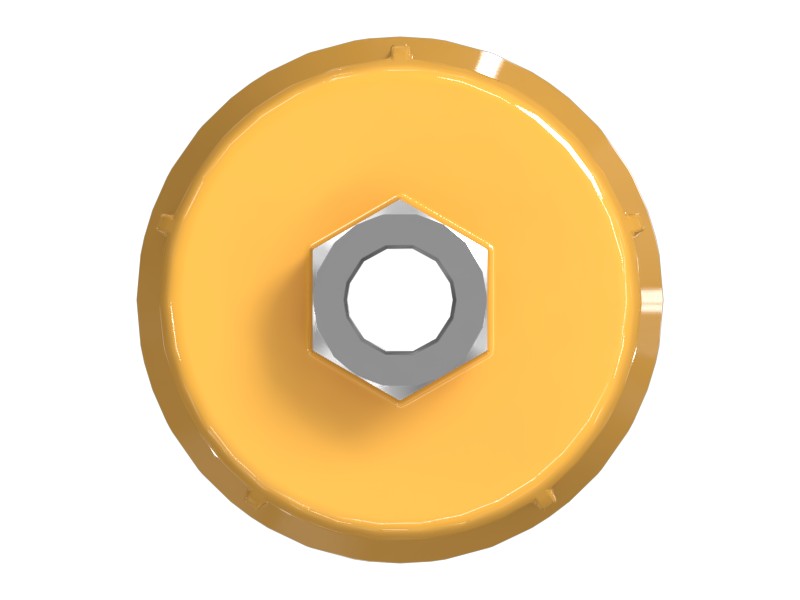

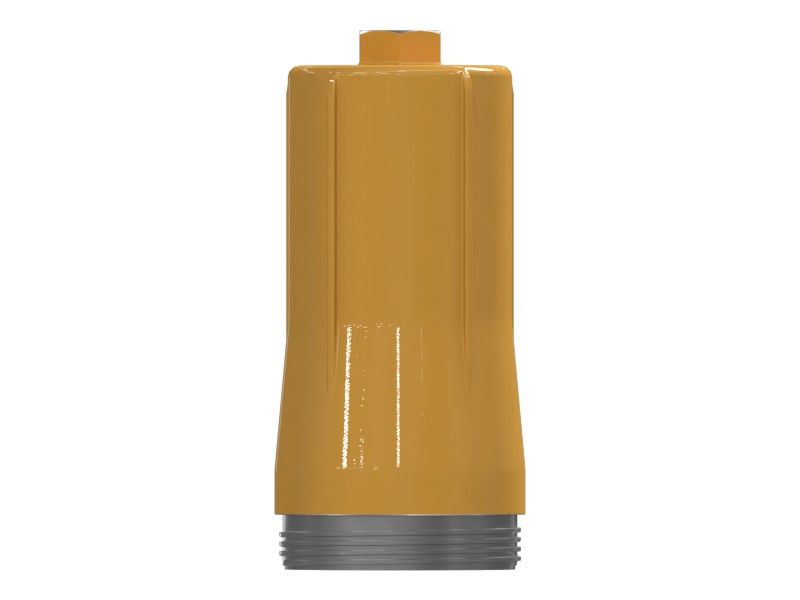

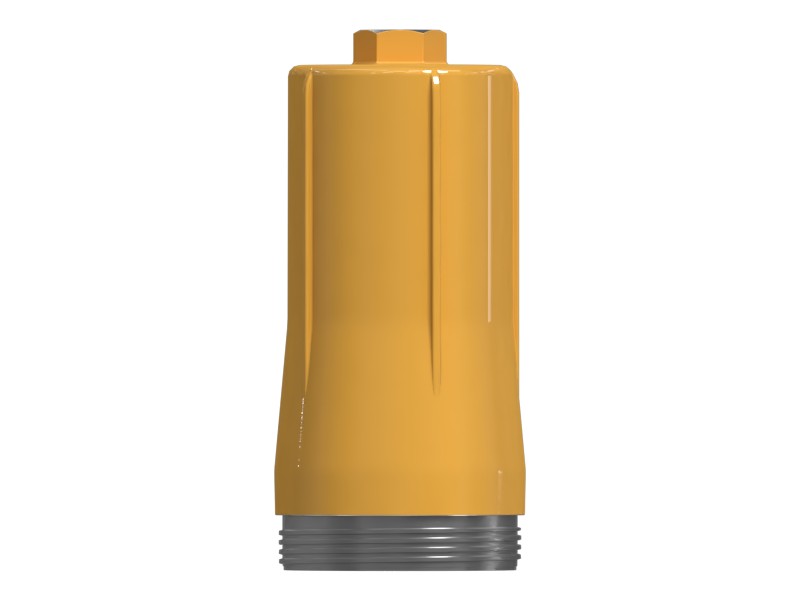

509-1568 Fuel Filter Housing
Cat® Secondary Fuel Filter Housing, ID X OD X Length: 92 X 112 X 240 mm
Description
The housing (part number 509-1568) is used with secondary fuel filters across various Cat product families.
Features
- Aluminum filter housing
- 4.25-6 Stud ACME – 2G Thread
- Inside Diameter: 92 mm (3.62 in)
- Outside Diameter: 112 mm (4.41 in)
- Length: 240 mm (9.46 in)
- Hex Size: 36 mm (1.42 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Filter Type | Cartridge |
|---|---|
| Housing Length | 240.4 mm (9.465 in) |
| Housing Outside Diameter | 111.9 mm |
| Hex Size | 36 mm (1.42 in) |
| Inside Diameter | 92 mm (3.62 in) |
| Length | 240 mm (9.46 in) |
| Material | Aluminum |
| Outside Diameter | 112 mm (4.41 in) |
Compatible Equipment
- Motor Graders: 140K, 12K, 160K, 14, 16, 16M3, 18, 349 GC
- Track Loaders: 826K, 973K, 982, 972
- Cold Planers: PM620, PM622, PL87, PL83
- Compactors: 824K, 834K, 825K
- Dozers: D8T, D7, D8
- Excavators: 374, 340, 336, 349, 352, 345 GC, 395, 350, 355, 350MHPU, 3101
- Wheel Loaders: 966M, 982M, 972M, 980M, 966 GC, 986K
- Off-Highway Trucks: 730, 735, 725
Additional information
| Machine Model | 12K, 14, 140K, 16, 160K, 16M3, 18, 3101, 336, 340, 345 GC, 349, 349 GC, 350, 350MHPU, 352, 355, 374, 395, 725, 730, 735, 824K, 825K, 826K, 834K, 966 GC, 966M, 972, 972M, 973K, 980M, 982, 982M, 986K, D7, D8, D8T, PL83, PL87, PM620, PM622 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers |
| Part Source | Genuine OEM |
